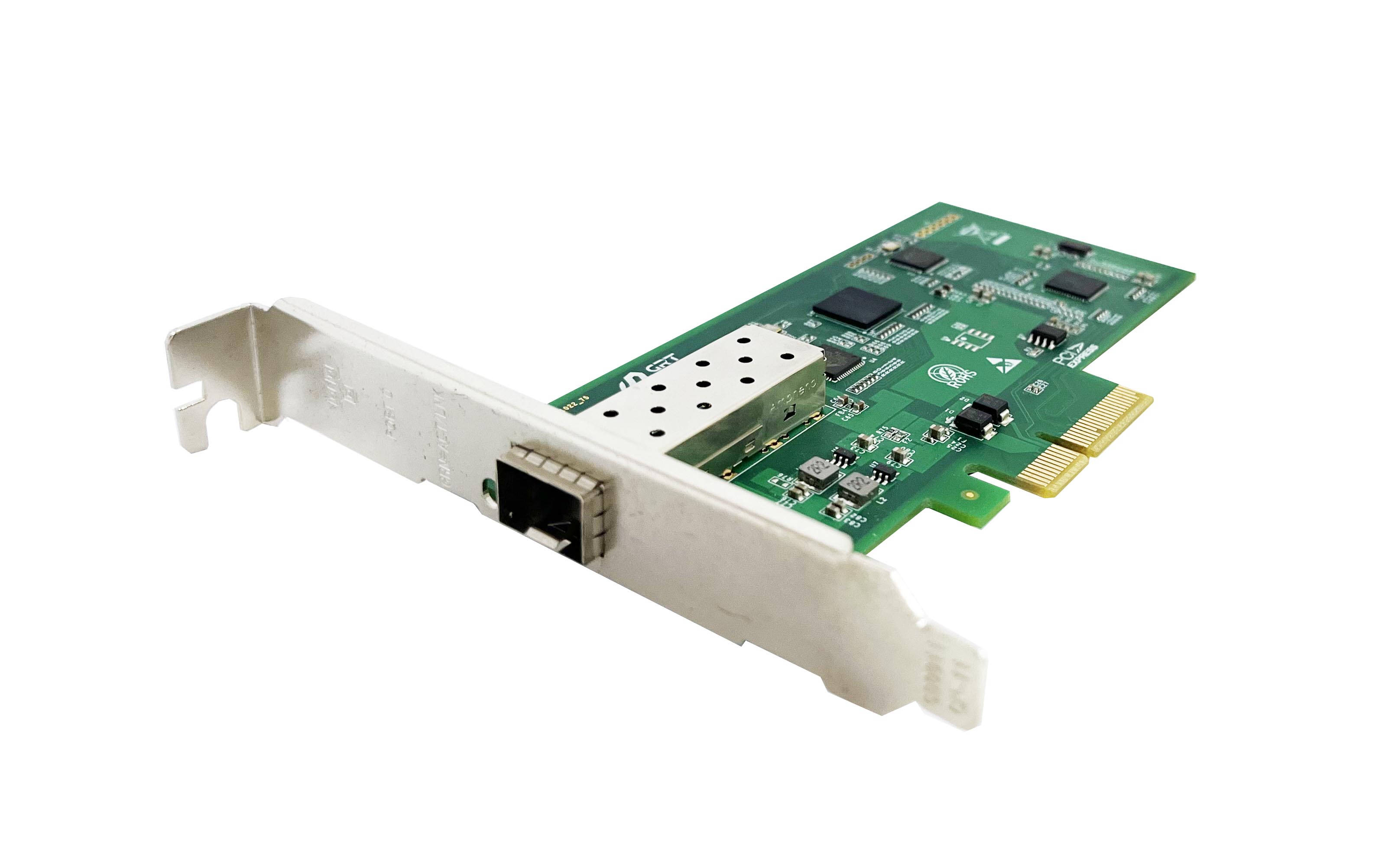

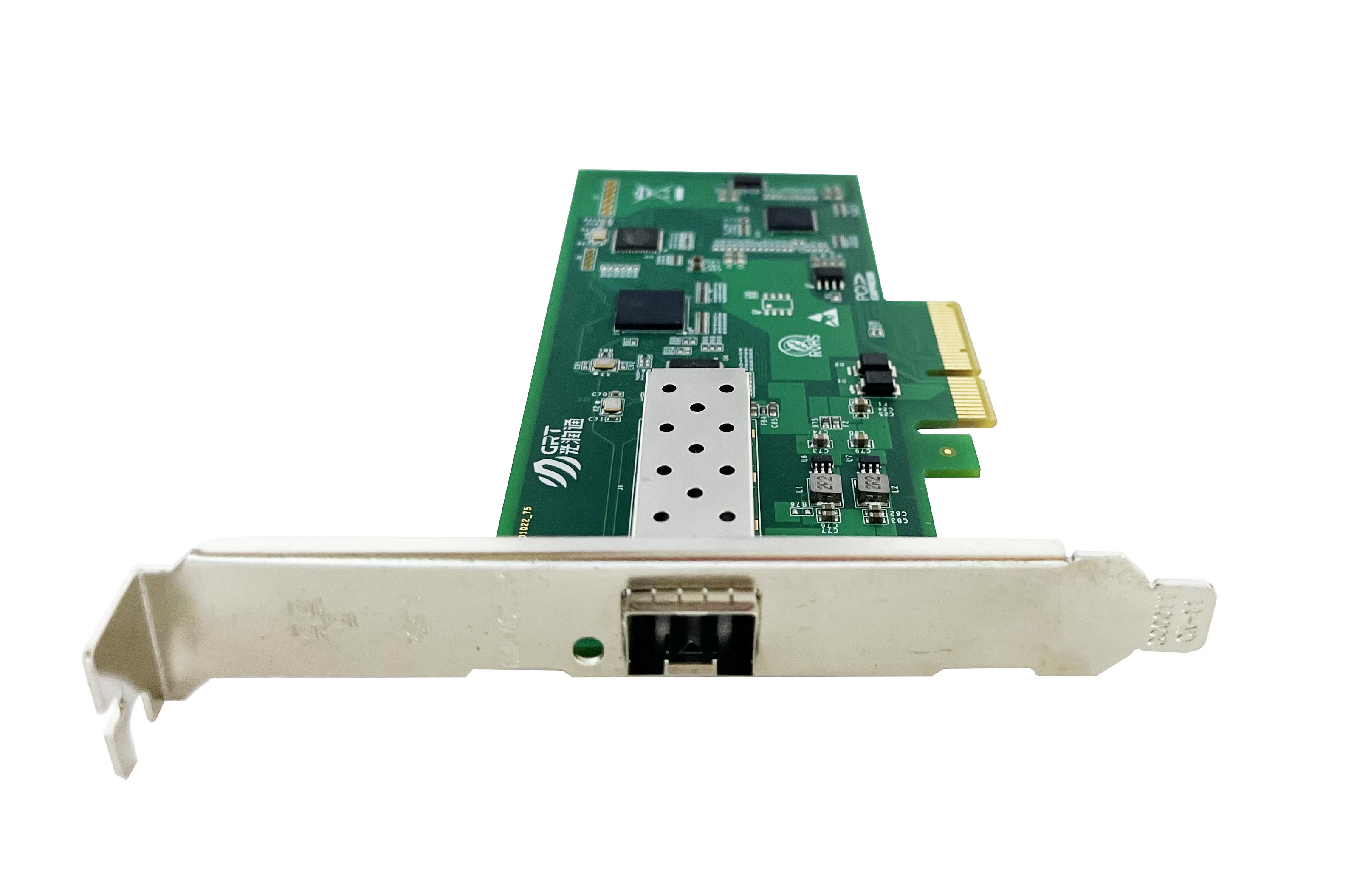

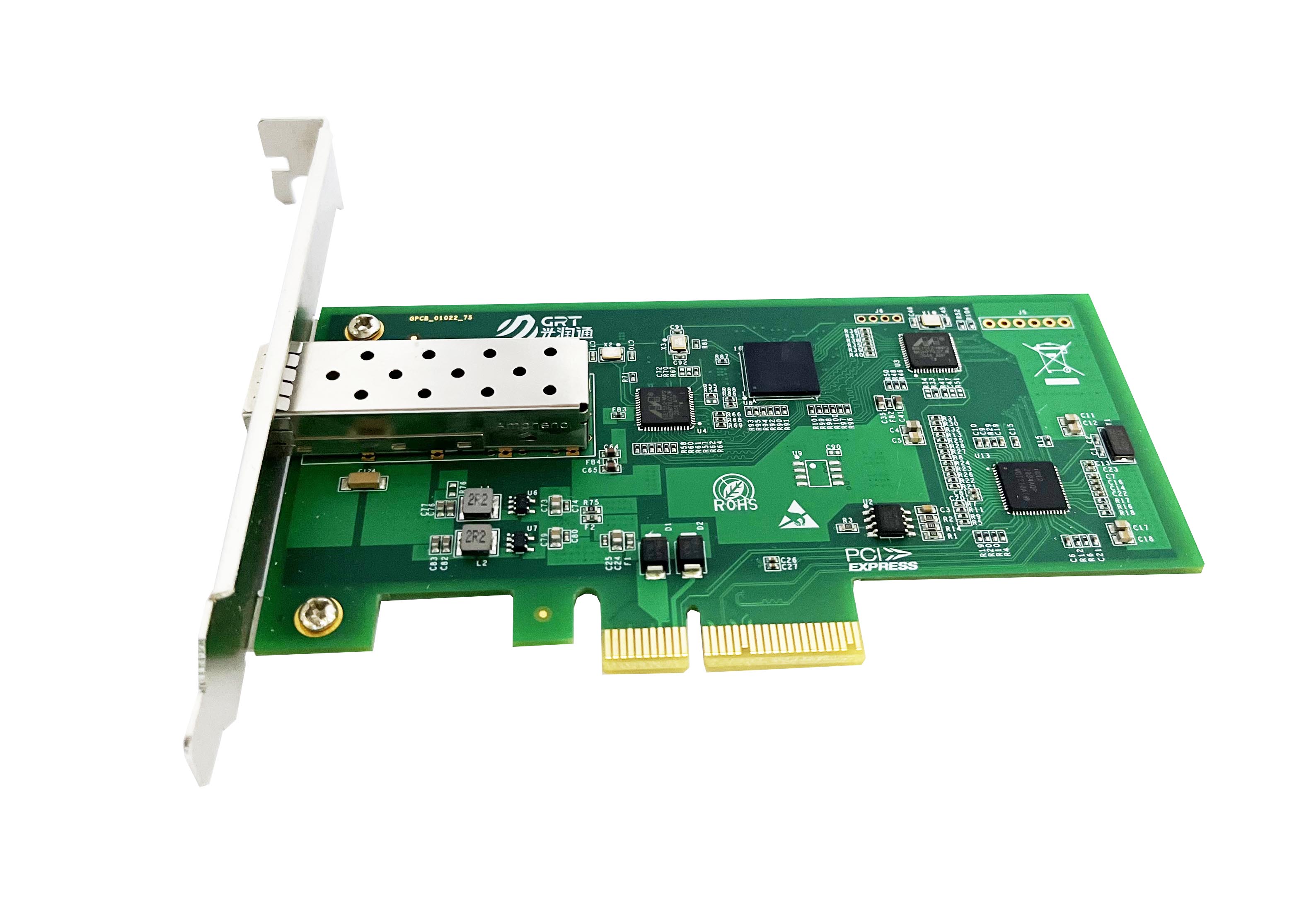

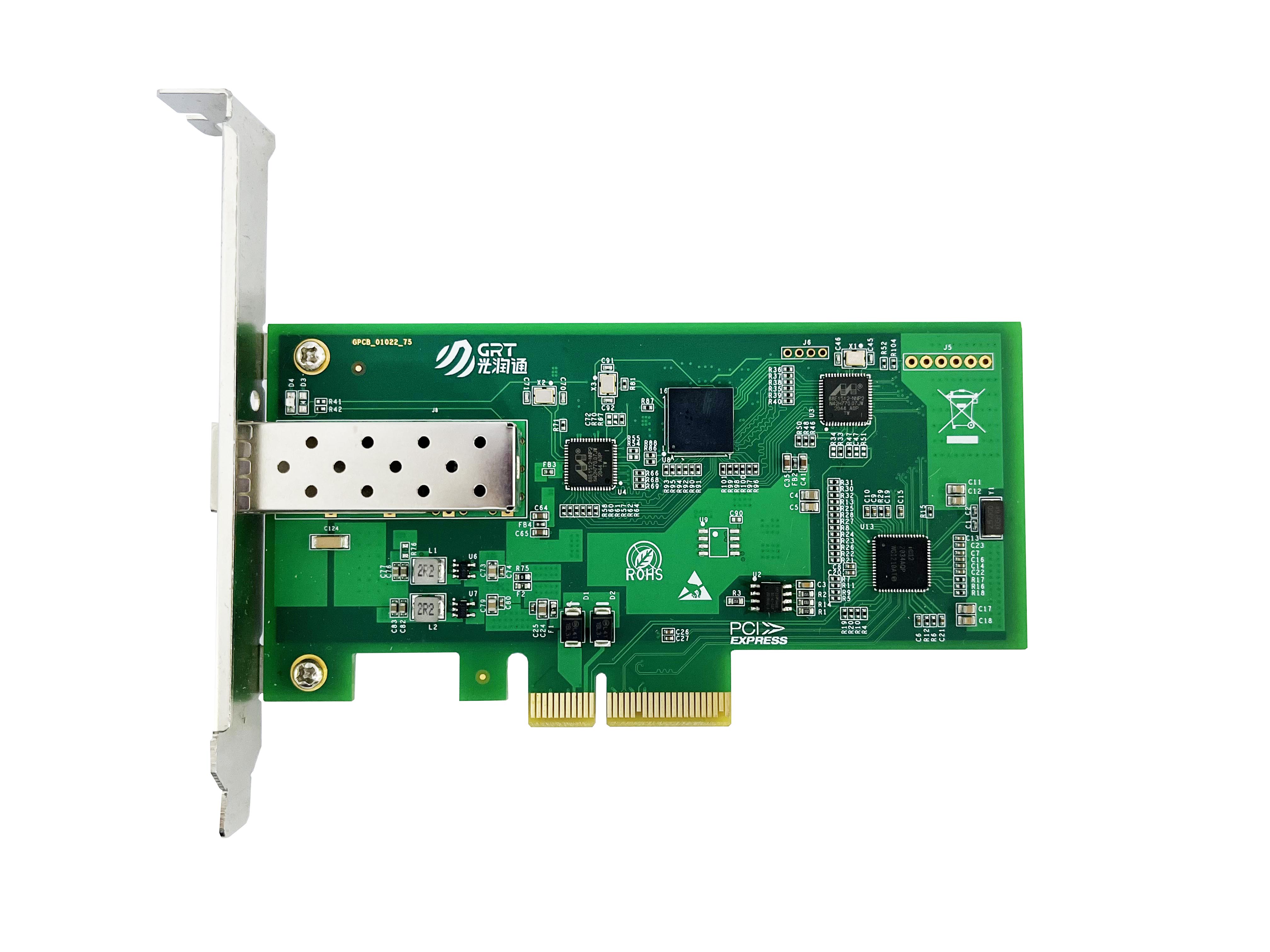

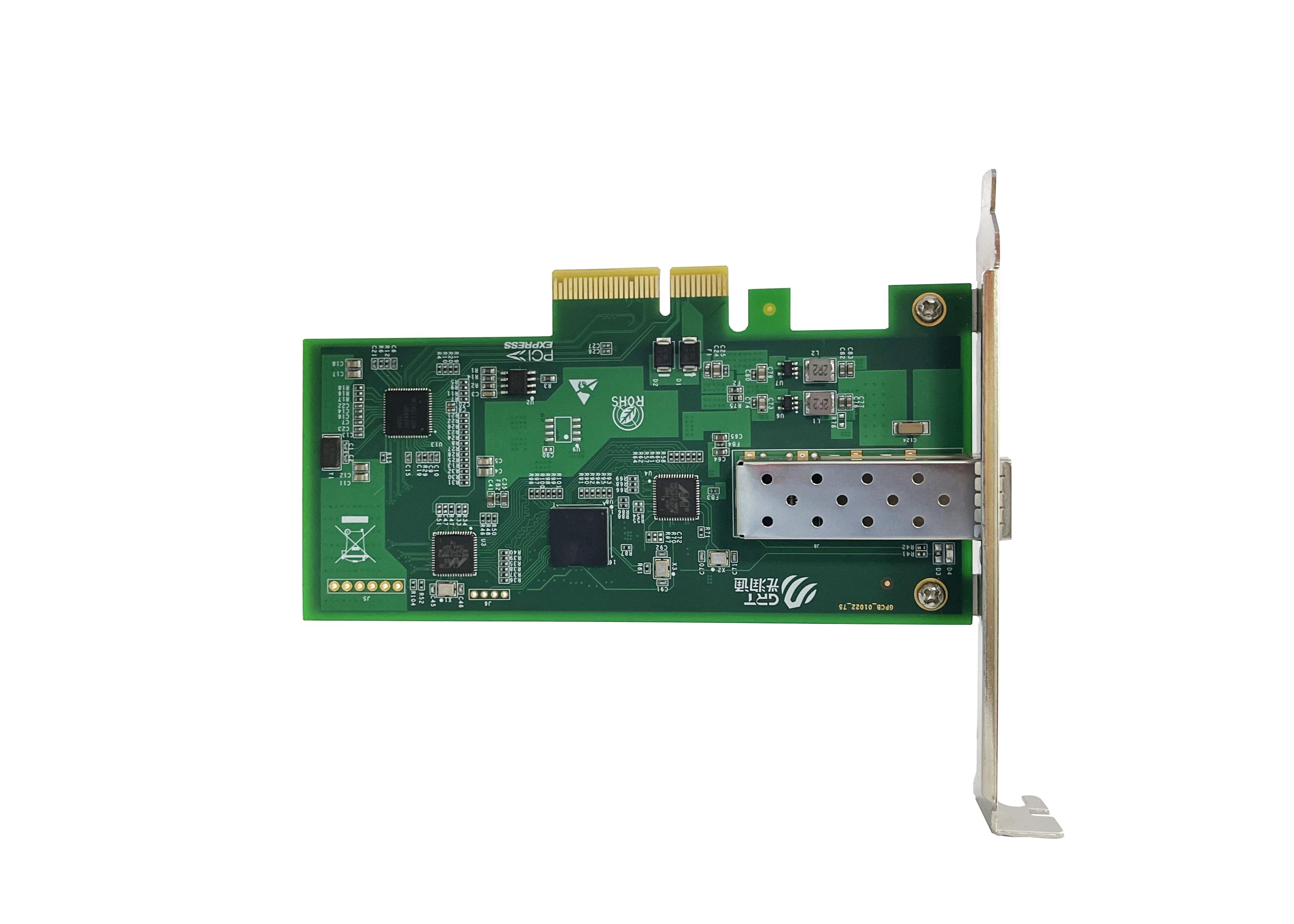

Gigabit single optical port server Smart Encryption adapter card with Intel I210 IS chip
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
- One port Gigabit Ethernet adapter provides SFP module connectivity
- Support for giant frame can reach 9.5 KB
- Support for receiver scaling under the Windows system
- Support for PCI Express * V2.1 (5 GT / s).
- Support for hardware acceleration and IPV 6protocol, extend the standard packet mode
- High-performance host interface design PCI Express 2.1
- Pure hardware chip-level encryption to meet the application of different scenarios

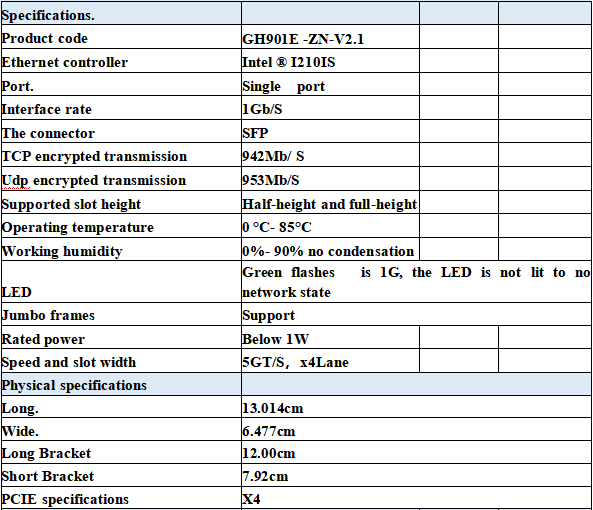

Key attributes
Model Number:GH901E-ZN-V2.1
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:1G network card
Ethernet controller:Intel ®I210IS
Application:Servers, GAP, Firewall, storage device,etc.
Product Description
GH901E series Ethernet adapter products are based on Intel's I210IS Ethernet controller developed Gigabit one port interface Ethernet intelligent encryption adapter. This product is used in high-end devices such as servers ,desktop computers, and firewalls. The adapter card is designed and optimized for performance so that system I/O is no longer a bottleneck for high-end network applications. The adapter card has integrated hardware acceleration and is capable of performing TCP/UDP/IP checksum offloading and TCP segmentation tasks. Host processing offloads accelerators, freeing up CPU resources to handle other applications. The adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.
Guangruntong intelligent encryption card is a P2P intelligent network card that allows the encryption and decryption of transmitted data, which provides a strong hardware guarantee for the security of data transmission. During the entire transmission process, the encryption and decryption of data is realized based on the network card hardware, completely free from the dependence on software. Completely get rid of the risk of plaintext leakage during data transmission. The SM4 and AES algorithms ensure data unhackability. In addition to the data encryption transmission function, it can also protect and isolate the enterprise intranet. While maintaining the high-speed transmission of P2P on the original intranet, it can block any network products that illegally access the enterprise intranet.
There are two main working modes: encryption mode and intranet protection mode, and the internal network protection mode only works within the enterprise.
In encryption mode, the sender and receiver must be connected to the GH901E-ZN-V2.1 network card at the same time to realize the communication between the two end devices, and there are no special requirements in the internal network protection mode.
The encryption and decryption algorithm adopts: national secret SM4 ECB 128, business secret AES ECB 128.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
