Dual Port QSFP+ 40 Gigabit Ethernet OCP Mezzanine Card with Intel XL710-BM2 chip
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
Support for giant frames of up to 9.5 KB
Support Flow Control
Priority flow control（IEEE 802.1Qbb）
Enhanced transport selection （IEEE802.1az）
Statistical managemen and RMON
802.1q VLAN support
DCB / DCB-X support
Message Signal Interruption（MSI-X）
Storage - Smart offload solution through native OS(including NAS, iSCSI and FCoE) to achieve competitive performance
Support hot swapping

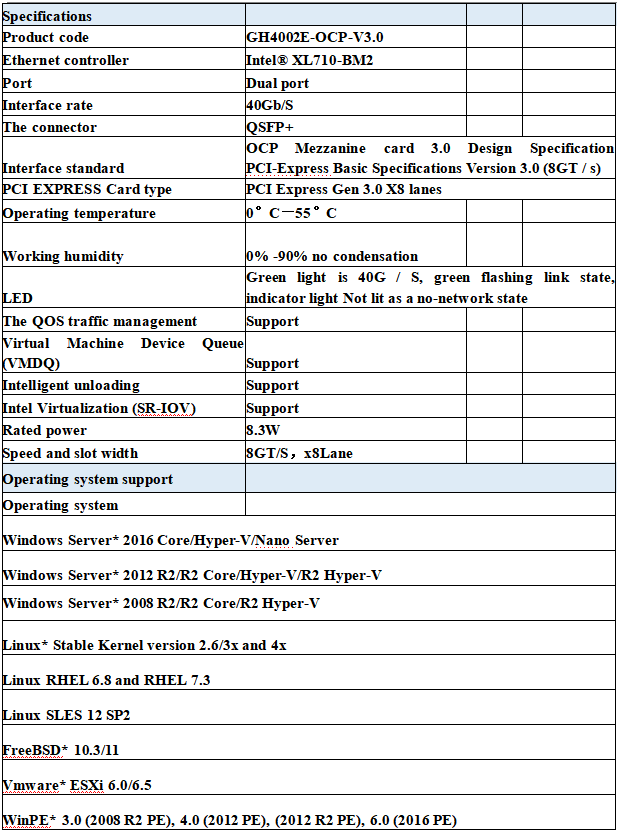

Key attributes
Model Number:GH4002E-OCP-V3.0
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:40G OCP network card
Ethernet controller:Intel ® XL710-BM2
Application:Servers, GAP, Firewall, storage device,etc.
Product Description

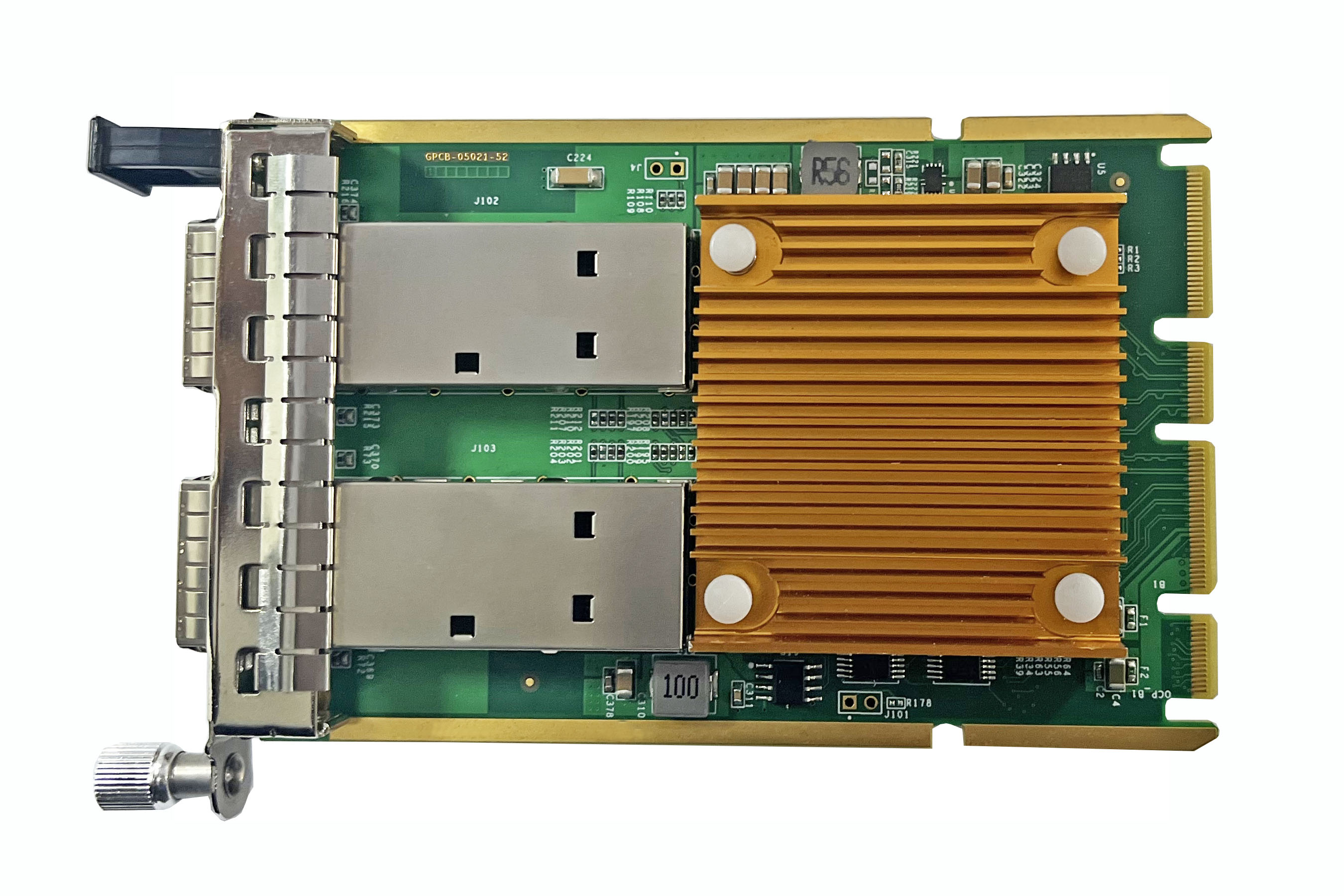

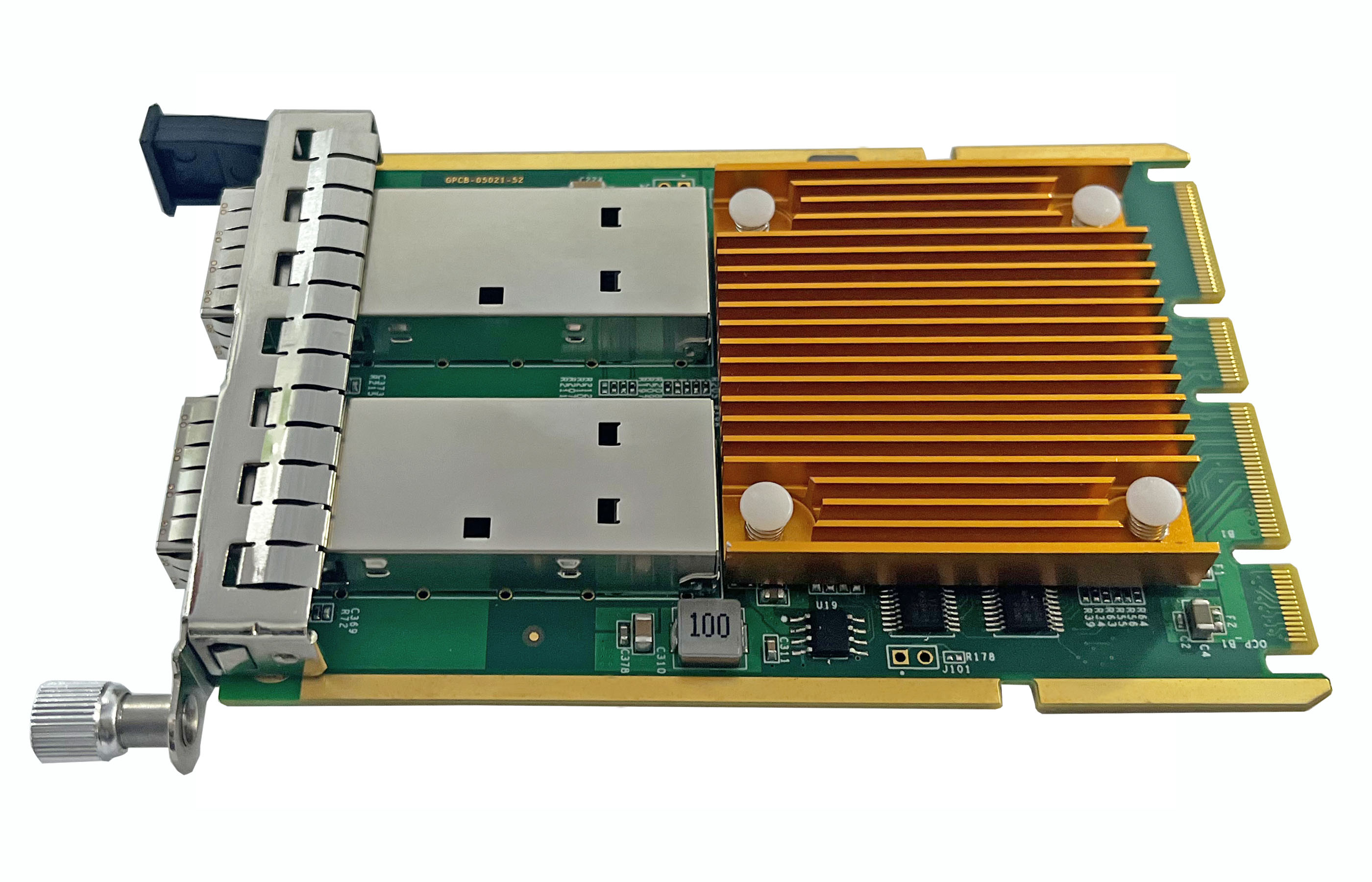

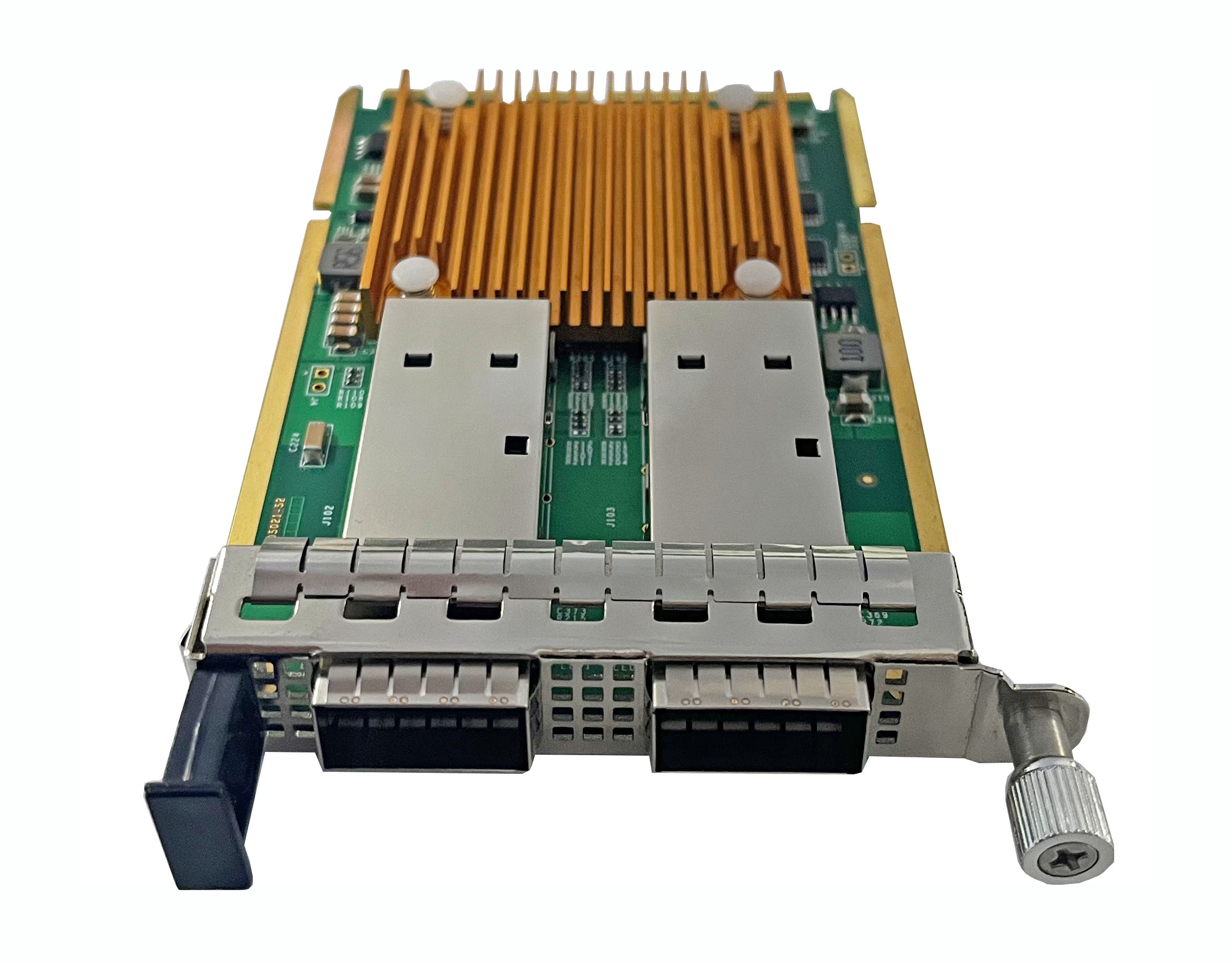

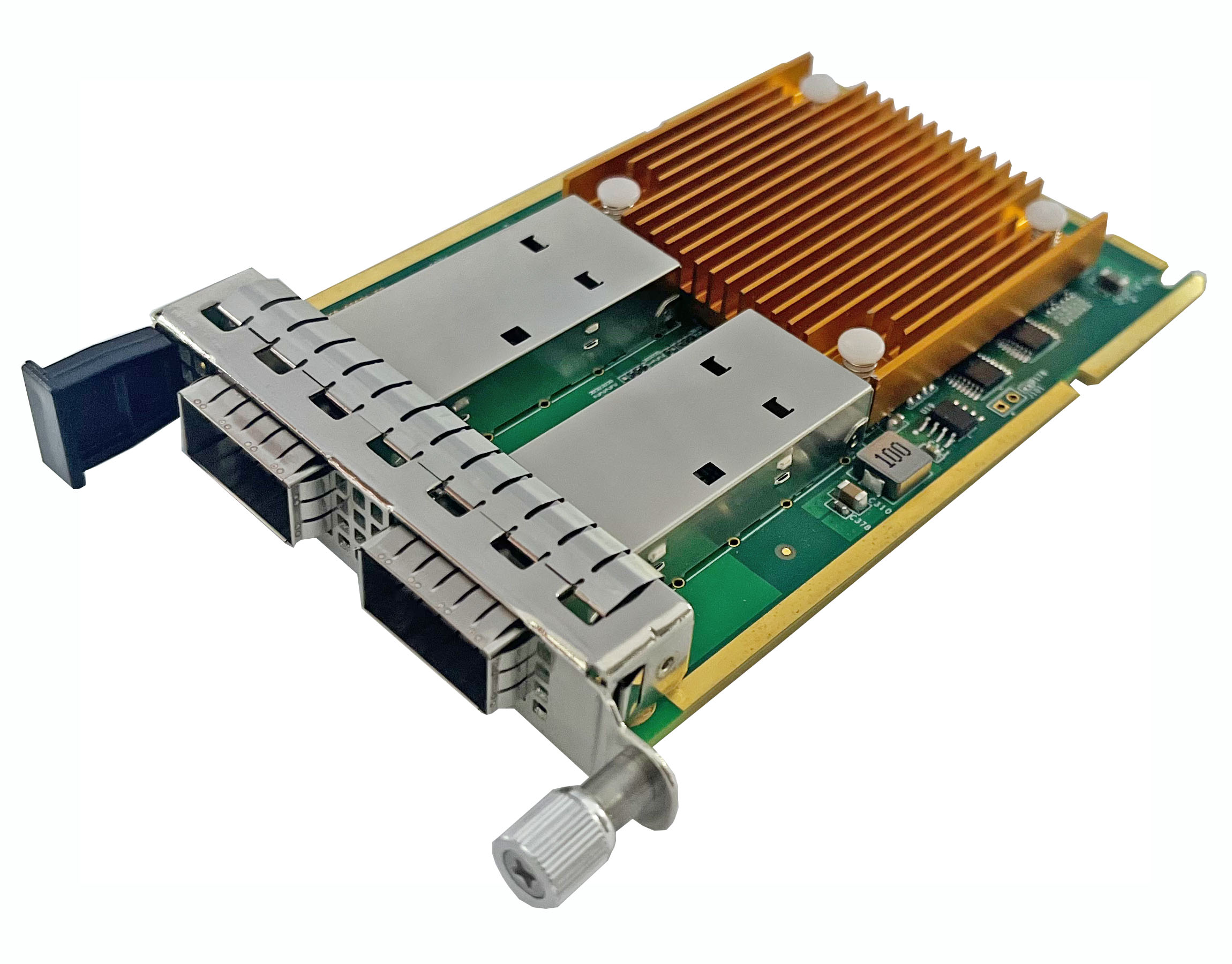

The 40G dual-optical Ethernet OCP 3.0 mezzanine card is based on the Intel XL710-BM2 Ethernet controller with a fully integrated 40G Ethernet media access control (MAC) and SFI interface. In addition to managing the MAC and PHY Ethernet layer functionality, the controller also manages the PCI Express packet traffic for its transactions, links, and physical / logical layers. Using hardware acceleration, the controller unloads tasks from the host, such as TCP / UDP / IP checksum calculation and TCP segmentation.
Guangruntong 40G Ethernet OCP 3.0 mezzanine card is an ideal solution for high-performance network application and environment in high-performance OCP servers.
Host interface:
•Support for the OCP 3.0 card design specification
•PCI Express Gen 3.0 X8 channel
Dimensions:
QSFP + 40G Ethernet adapter
• -SRD: Fiber 1/400 Gigabit Ethernet 1000Base-SX / 40GBASE-SR4:
40GBASE-SR4 with 40Gigabit 850nm small pluggable (QSFP +)
• -LRD: Fiber 1/400 Gigabit Ethernet 1000Base-LX / 40GBASE-LR4:
40GBASE-LR4 with 40Gigabit 1310nm small pluggable (QSFP +)
The LAN and virtualization capabilities:
• VXLAN and NVGRE Network Virtualization Uninstall
• The unified network is the LAN and storage provides single line：NAS（SMB，NFS） SAN（iSCSI，FCoE）
• Virtual bridging support - VEPA / 802.1Qbg，BPE / 802.1Qbh
• Virtualization supports 64 virtual ports per port
•Virtualization - alleviate virtual machine hypervisor I/O bottlenecks by providing stream separation for virtual machines (VM).
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
