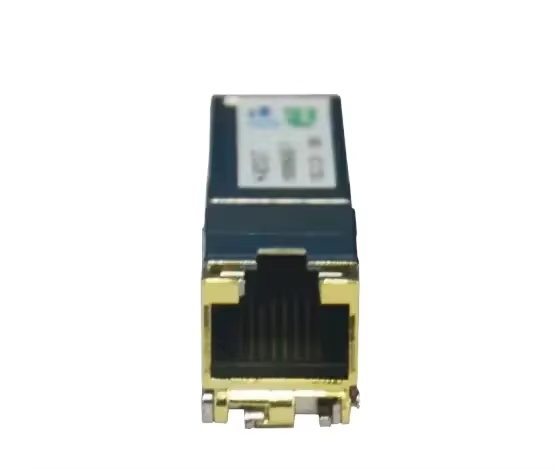

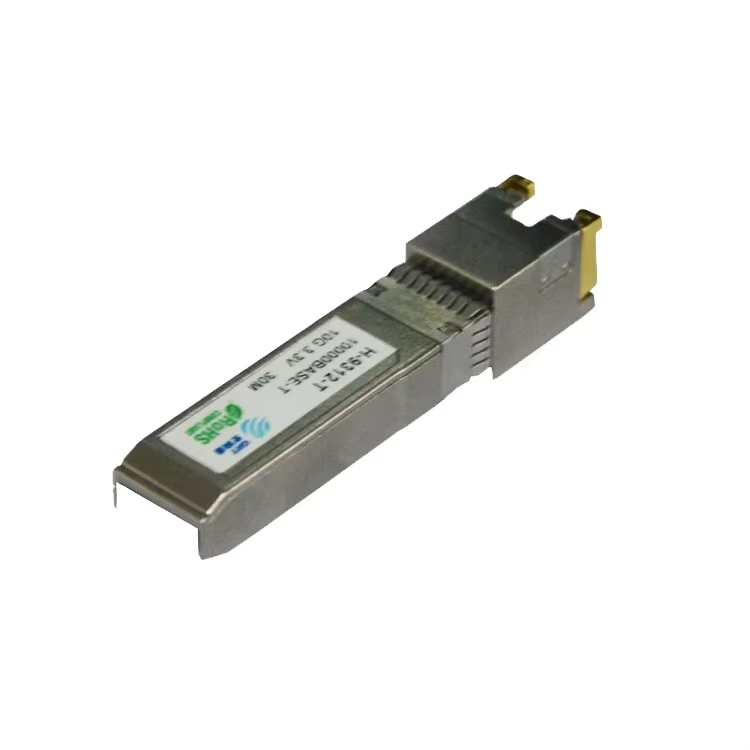

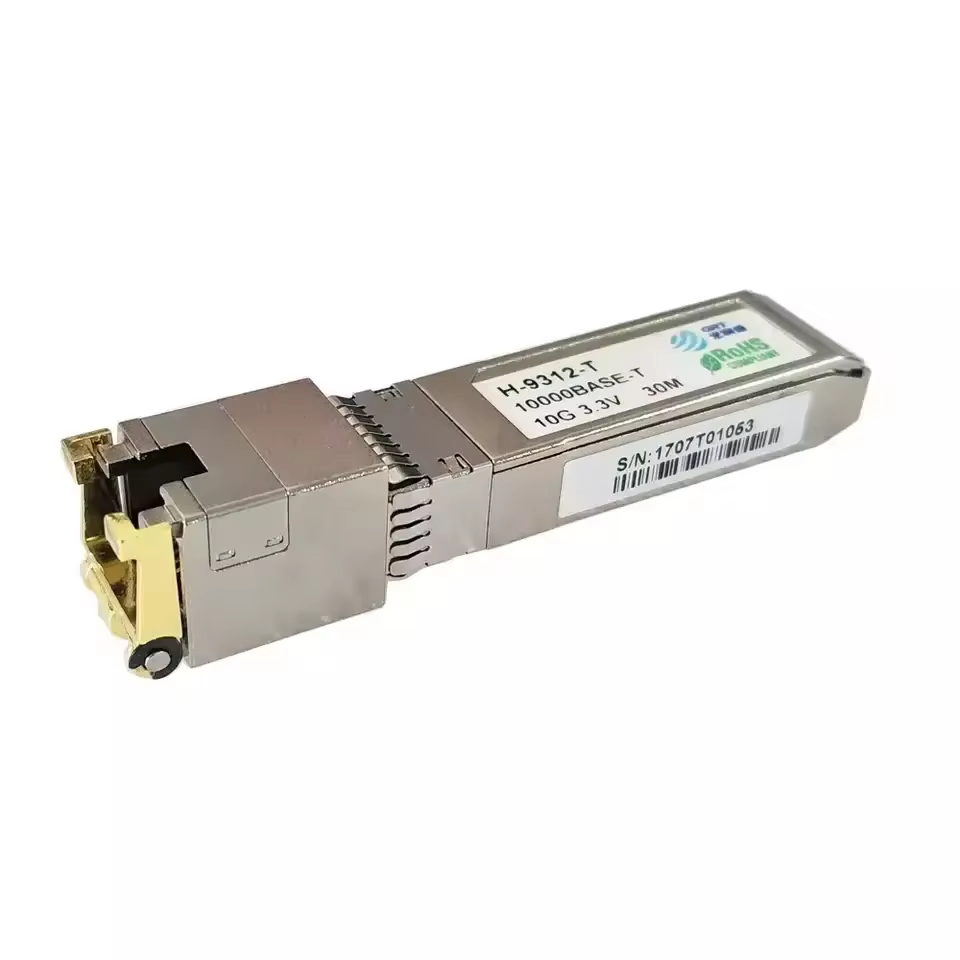

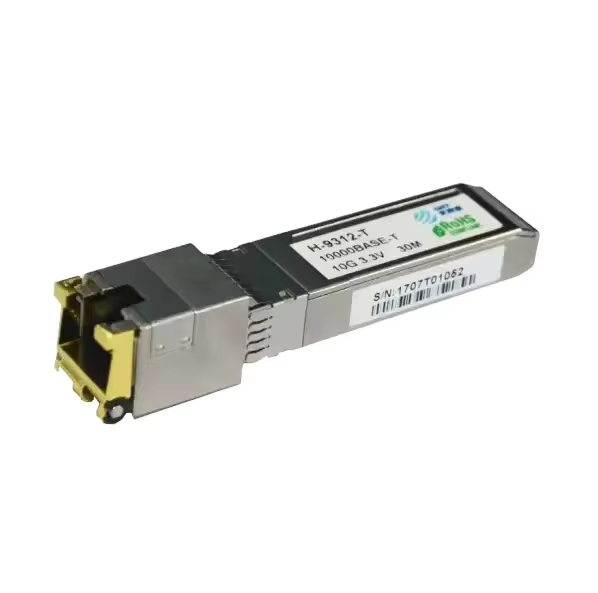

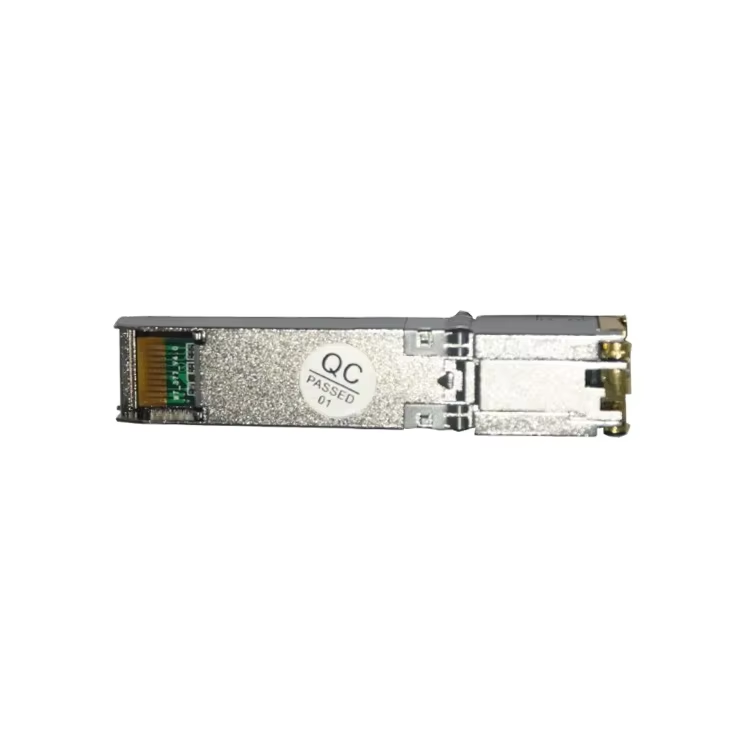

SFP-10G-T 10G SFP+ Copper-T RJ45 SFP module Optic Transceiver
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
1. Product Features
-
10GBASE-T Copper Small Form Pluggable (SFP+) transceivers are based on the SFP+ Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
Key Features
-
Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
-
Hot-pluggable SFP footprint
-
Compact RJ-45 connector assembly
-
RoHS compliant and lead-free
-
Single +3.3V power supply
-
10 Gigabit Ethernet over Cat 6a cable
-
Ambient Operating temperature: 0°C to +70°C
Cable Length
Standard Cable Reach Host Port 10Gbase-T CAT6A 30m XFI 5Gbase-T/2.5Gbase-t CAT5E 50m 5GBase-R/2.5GBase-X 1000base-T CAT5E 100m 1000base-FX
-
2. Application
-
NIC network cards
-
Switches
-
Routers
-
VPN equipment
-
Traffic control device
-
GAP
-
Fiber Media Converter
-
Firewall
-
Storage device
-
Telecommunication
-
Fiber Channel
3. Customer Ordering
For each model of optical module, there're 3 levels for choice.
|
Product Level |
Description |
| Aerospace Level | made by 100% imported material |
| Telecommunication Level | 60% of material are imported |
| Network Level | chipset imported, others are of dometic brand |
4. Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packaging & Shipping
-
Please keep the transceiver modules from dust, moist and oil contamination.
-
Try to avoid the electrostatic.
-
Try to avoid direct contact with sensitive areas such as connecting finger.
-
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
