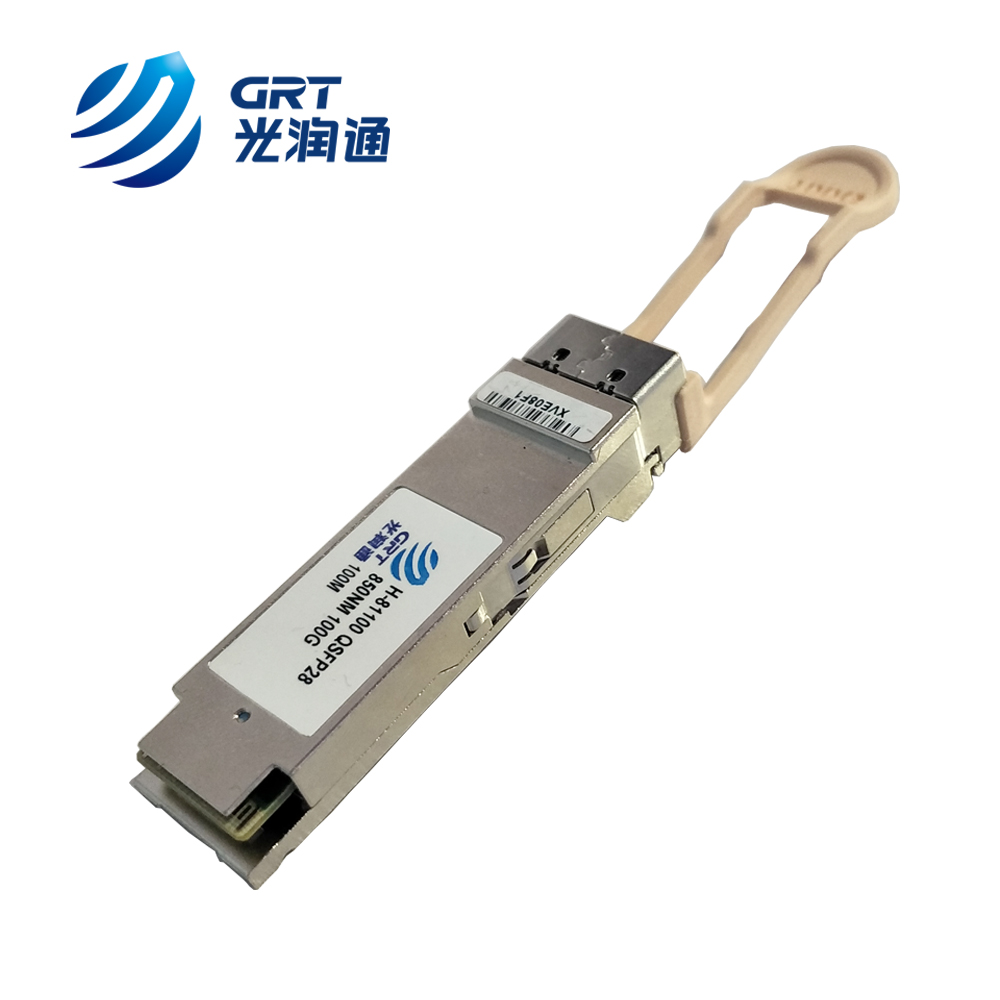

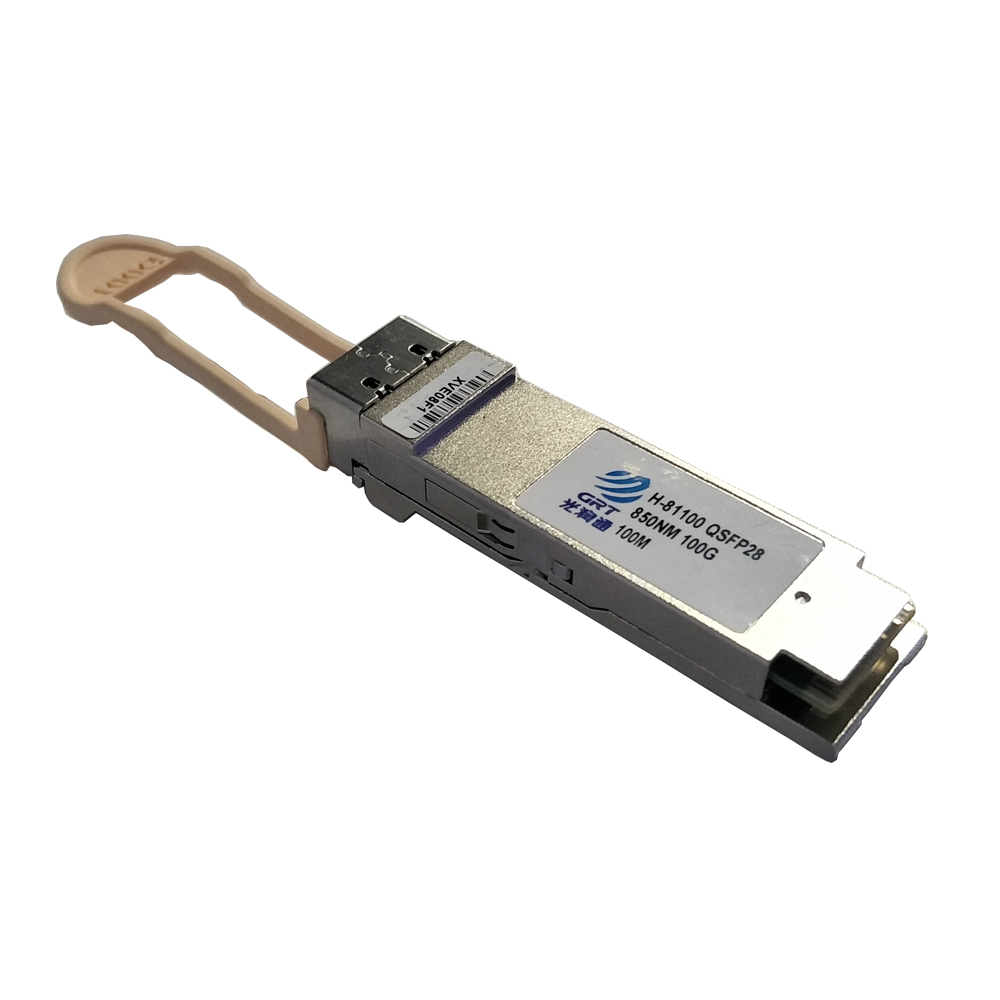

QSFP-100G-SR4 Duplex LC 100G 100m QSFP28 SR4 Fiber Optical Transceiver
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
100G QSFP28 optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, diagnostic monitors, control and bias blocks. For module control, the control interface incorporates a Two Wire Serial interface of clock and data signals. Diagnostic monitors for VCSEL bias, module temperature, transmitted optical power，received optical power and supply voltage are implemented and results are available through the TWS interface. Alarm and warning thresholds are established for the monitored attributes.
Product Features
Up to 27.952 Gbps Data rate per channel
Maximum link length of 150m links on OM4 multimode fiber
High Reliability 850nm VCSEL technology
Electrically hot-pluggable
Duplex LC optical receptacle
Digital diagnostic SFF-8636 compliant
RoHS-6 compliant and lead-free
Compliant with QSFP28 MSA with LC connector
Single +3.3V power supply
Maximum power consumption 2.0W
All-metal housing for superior EMI performance
Case operating temperature
Commercial: 0~+70oC
| Code Number | H-8100QSFP28 |
| Data Rate | 100Gbps |
|
Operating wavelength |
850nm |
| Transmission Distance | 100m |
| Commercial Case Temperature | 0-70℃ |
| Mode | Multi-mode |
| DDM diagnostic function | yes |
| Certification | ISO9001, CE, FCC, RoHS |
| Application | Switches, Routers, VPN, Firewall |
| Warranty Time | 3 years |
Application
Data Center
Fiber channel
Ethernet switches and router applications
Mechanical Dimensions
Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packaging & Shipping
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
