1.25G 850nm 550m SFP Gigabit Single Rx side Fiber Optical Receiver Modules
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
1. Product Features
-

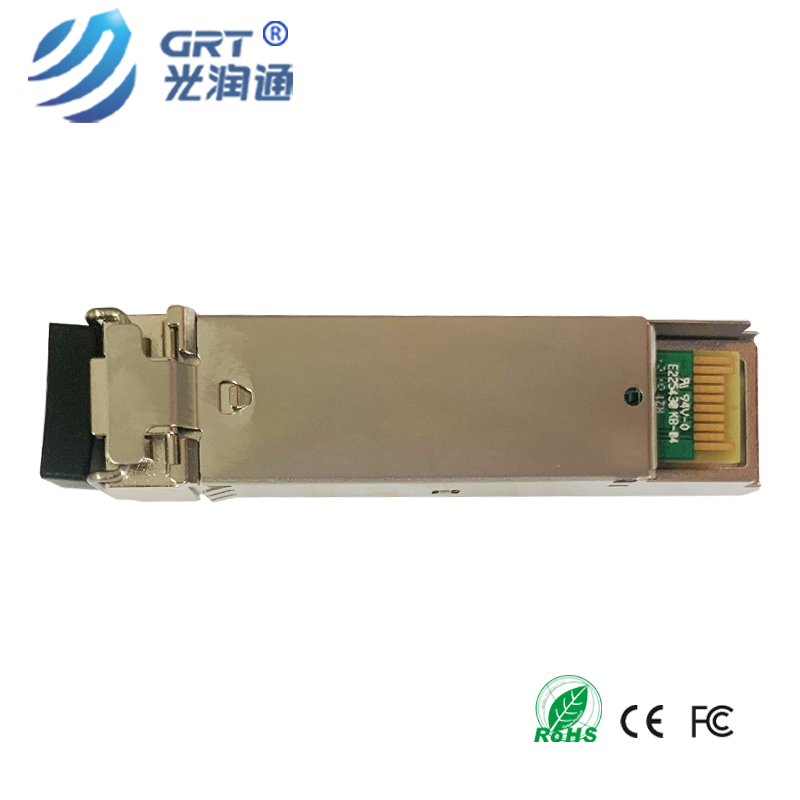

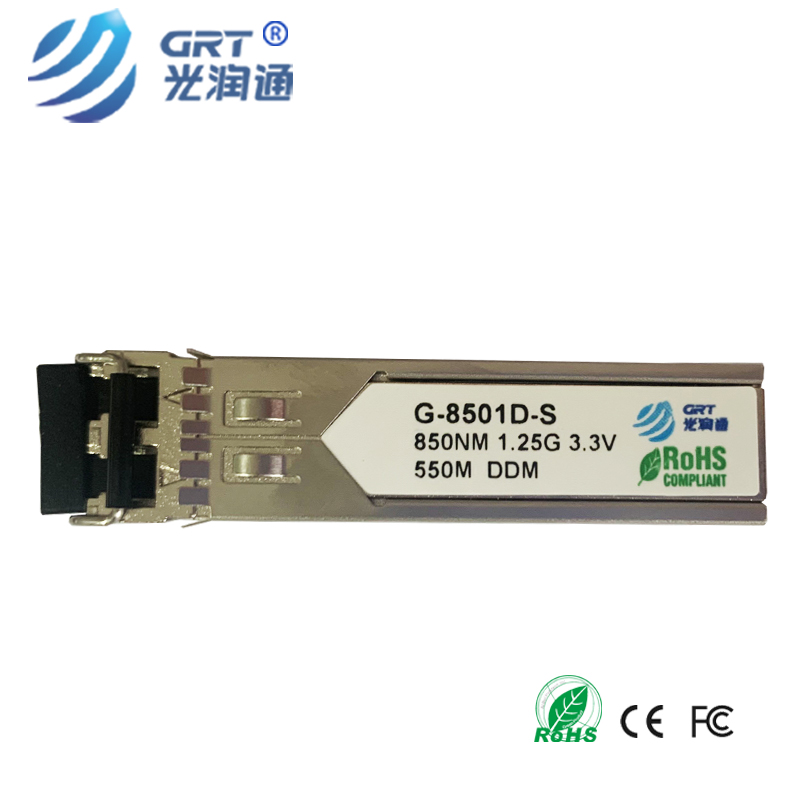

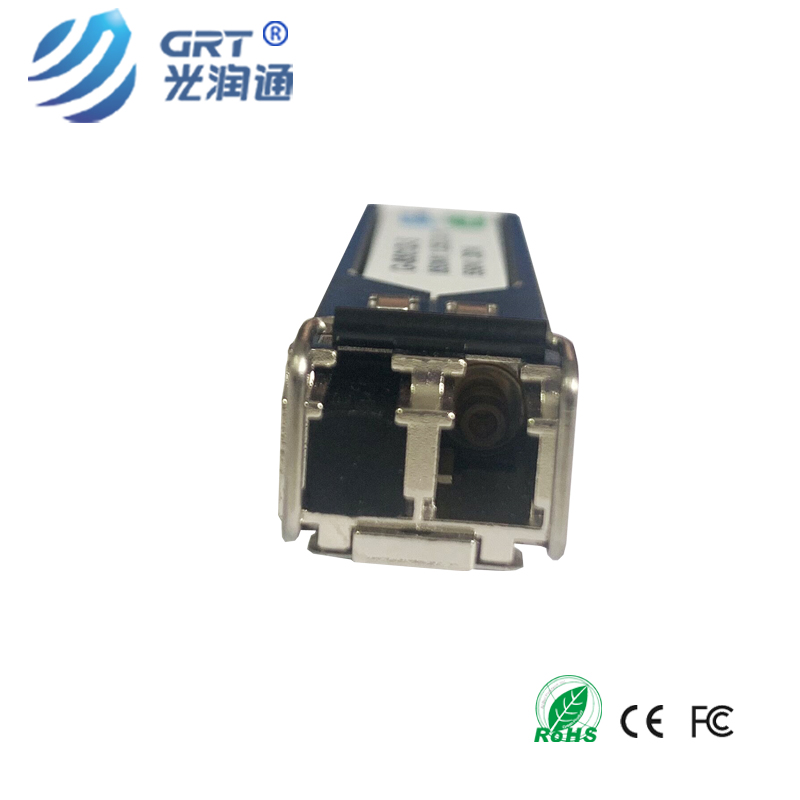

G-8501D-S is a Gigabit optical module with only one Receive side, based on wavelength of 850nm multimode and can reach up to 550m, hot pluggable SFP form factor). Its commerical case operating temperature 0°-70°C, support 10GBASE Ethernet and OTU2/OTU2e hot pluggable I/O device, fully compatible with the SFP port on the Switch.
SFP package with LC connector
850nm VCSEL Laser and PIN photodetector
Up to 550m transmission on 50/125 um MMF
+3.3V single power supply
LVPECL compatible data input/output interface
Low EMI and excellent ESD protection
laser safety standard IEC-60825 compliant
Compatible with RoHS
Digital Diagnostic SFF-8472 compliant
Code Number G-8501D-S Data Rate 1Gbps Operating wavelength
850nm
Transmission Distance 550m Commercial Case Temperature 0-70° Mode Multi-mode DDM diagnostic function yes Certification ISO9001, CE, FCC, RoHS Application Switches, Routers, VPN, Firewall Warranty Time 3 years
2. Application
-
NIC network cards
-
Switches
-
Routers
-
VPN equipment
-
Traffic control device
-
GAP
-
Fiber Media Converter
-
Firewall
-
Storage device
-
Telecommunication
-
Fiber Channel
3. Customer Ordering
For each model of optical module, there're 3 levels for choice.
|
Product Level |
Description |
| Aerospace Level | made by 100% imported material |
| Telecommunication Level | 60% of material are imported |
| Network Level | chipset imported, others are of dometic brand |
4. Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packaging & Shipping
-
Please keep the transceiver modules from dust, moist and oil contamination.
-
Try to avoid the electrostatic.
-
Try to avoid direct contact with sensitive areas such as connecting finger.
-
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
