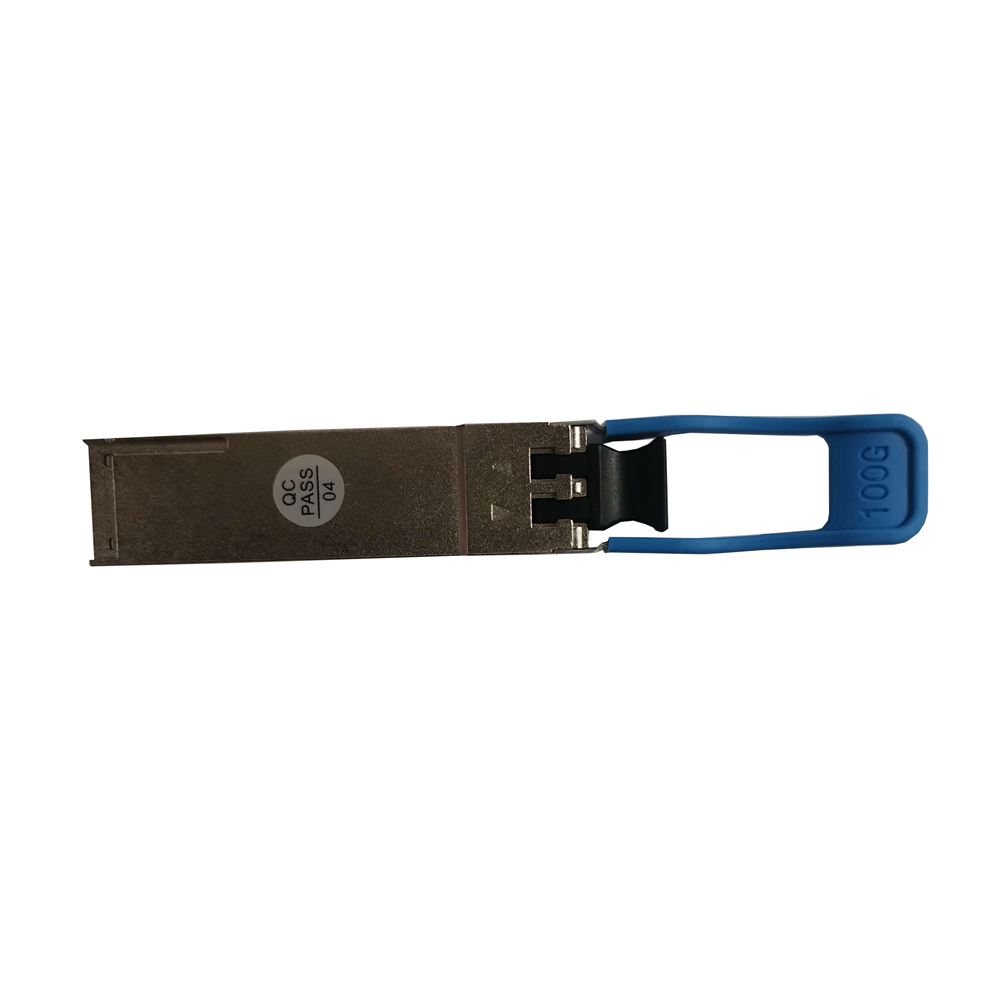

QSFP-100G-LR4 Duplex LC 100G 1310nm 10km QSFP28 LR4 Fiber Optical Transceiver
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product Features
Supports 103.1Gb/s, each lane bit rate 25.78 Gb/s
Up to 10km transmission on SMF
LAN WDM DFB laser and PIN receiver
I2C interface with integrated Digital Diagnostic monitoring
QSFP28 MSA package with duplex LC connector
Single +3.3V power supply
Maximum power consumption 4 W
Operating case temperature: 0 to +70 °C
Complies with EU Directive 2011/65/EU (RoHS 6/6)
| Code Number | H-3100QSFP28 |
| Data Rate | 100Gbps |
|
Operating wavelength |
1310nm |
| Transmission Distance | 10km |
| Commercial Case Temperature | 0-70° |
| Mode | Single-mode |
| DDM diagnostic function | yes |
| Certification | ISO9001, CE, FCC, RoHS |
| Application | Switches, Routers, VPN, Firewall |
| Warranty Time | 3 years |
Application
QSFP28-LR4 QSFP28 transceiver module is designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. It is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostics function is available via the I2C interface, as specified by the QSFP+ MSA.
Mechanical Dimensions
Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packaging & Shipping
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
