1G Quad RJ45 Ports Server Bypass Adapter with GRT®G350AM4
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
Four-port Gigabit Ethernet adapter provides RJ45 electrical interface connection
Innovative power management features and Energy Efficient Ethernet (EEE), integrated direct access memory improve efficiency and reduce power consumption
Intelligent bypass control chip, open source API design and integration of standard NIC function and Bypass function
Purely domestically designed, independent and controllable

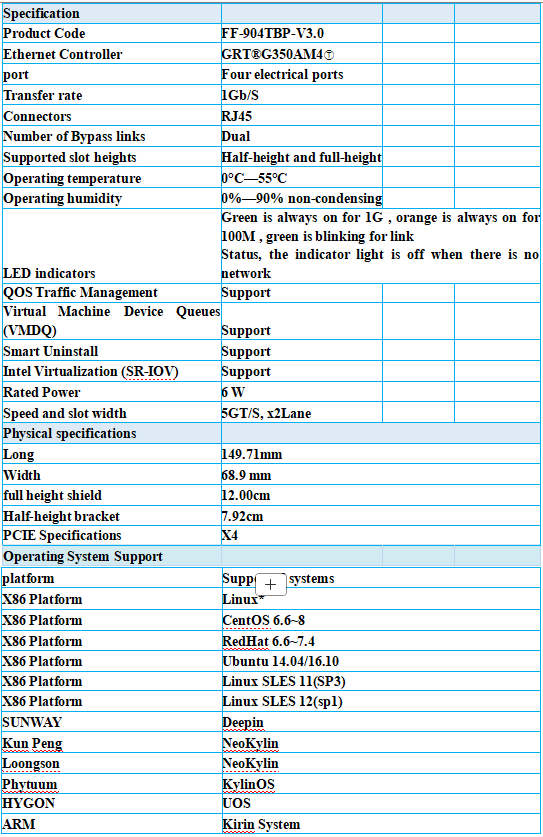

Key attributes
Model Number:FF-904TBP-V3.0
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:1GbE SFP network card
Ethernet controller:GRT®G350AM4Ⓣ
Host height supportable:2U or 1U
Hot pluggable:yes
Application:Servers, GAP, Firewall, storage device,etc.
Product Description

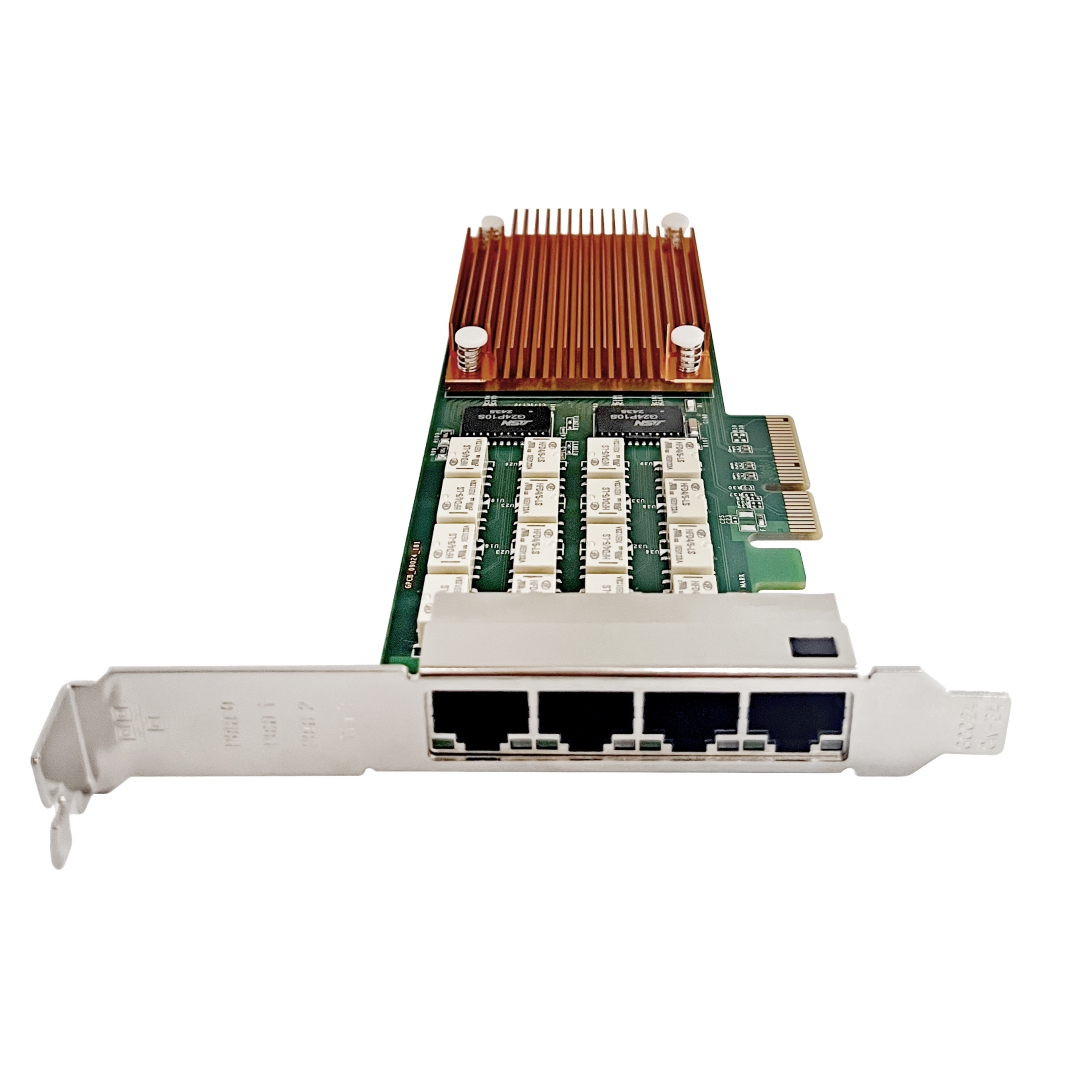

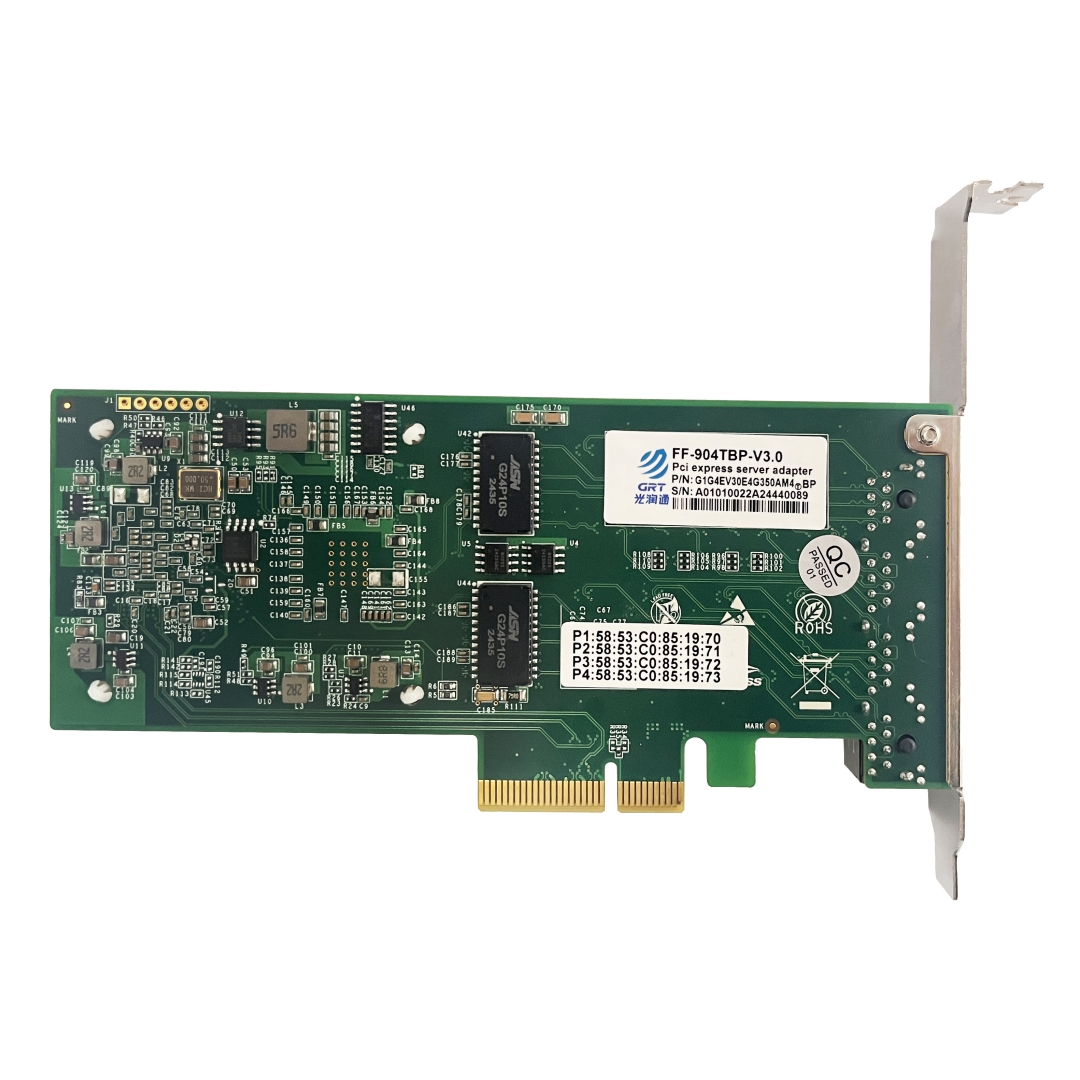

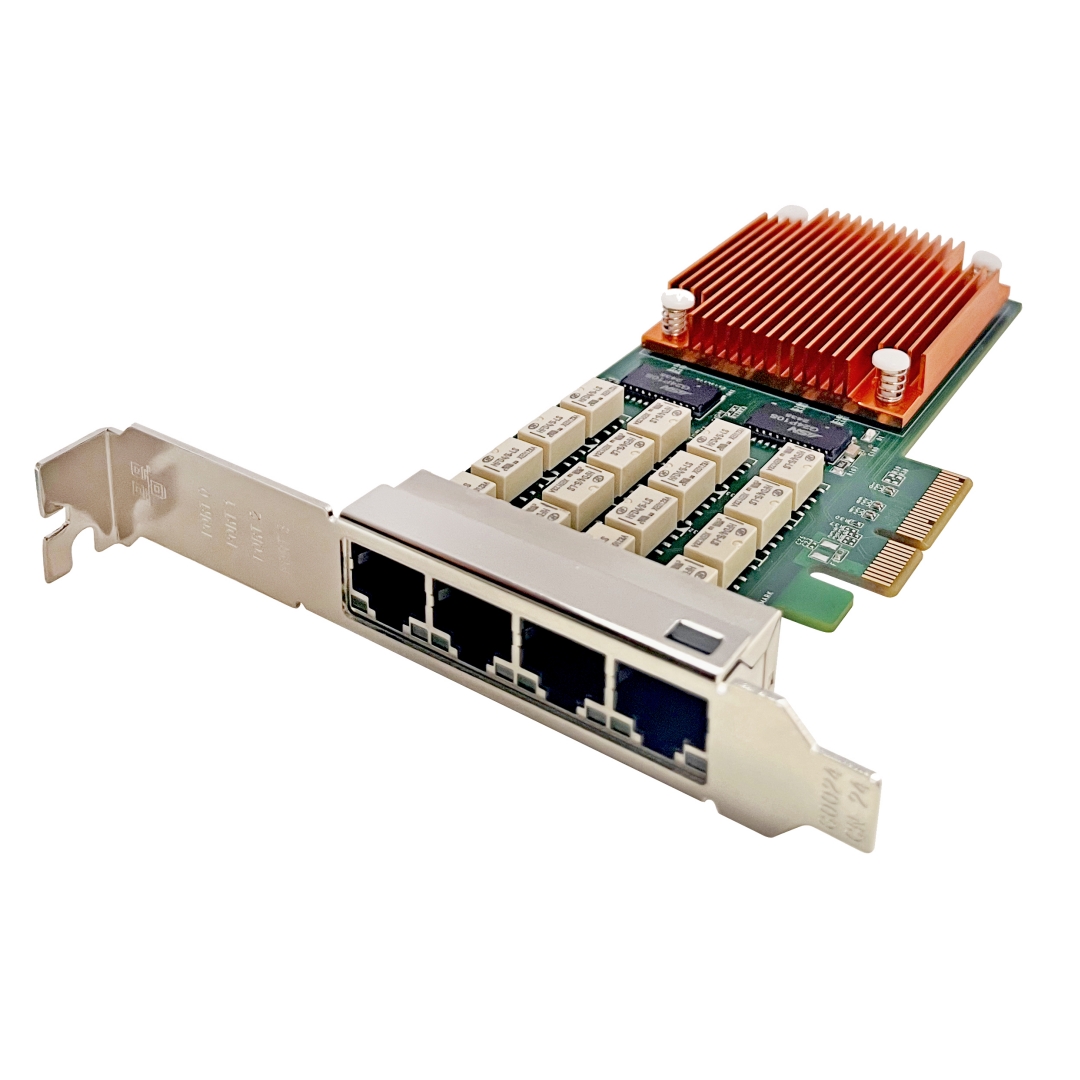

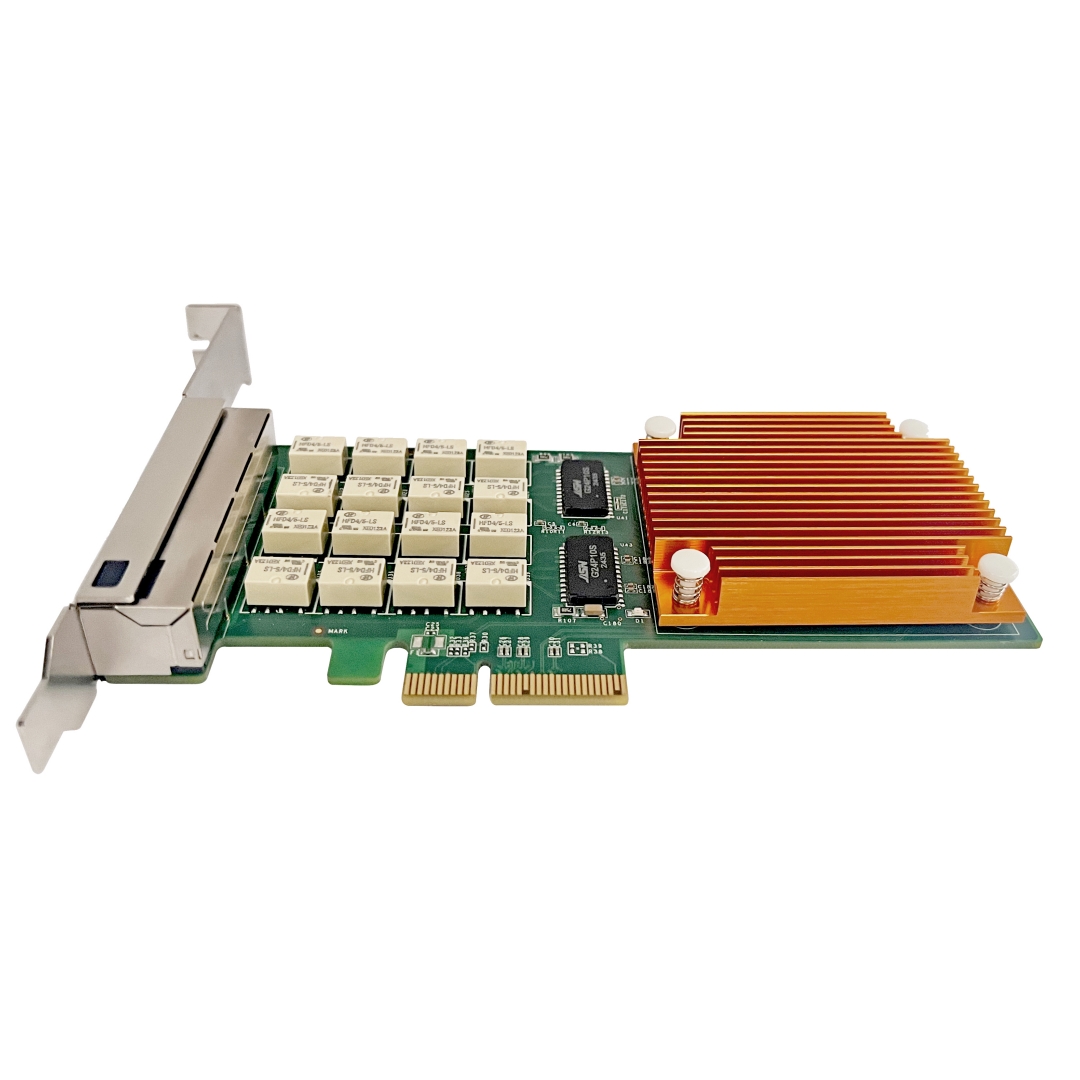

The Gigabit RJ45 electrical port Bypass Ethernet bypass server adapter produced by Guangruntong, FF-904TBP-V3.0 is a PCI-ExpressX4 network interface card with four Gigabit Ethernet ports on the adapter. The FF-904TBP-V3.0 adapter is oriented to inline network systems. When a network link fails, it can switch to bypass and continue communication, providing a backup link protection mechanism.
The FF-904TBP-V3.0 four-port Gigabit Ethernet bypass server adapter supports normal bypass and disconnect modes. In normal mode, the ports are independent interfaces, while in bypass mode, all packets received from one port are transmitted to the adjacent port, and in disconnect mode, the adapter simulates a switch/path cable disconnection.
The FF-904TBP-V3.0 server adapter can bypass or disconnect its Ethernet port when the host system fails or the power is turned off. Continue to work in bypass mode, the connection is switched to another port, so in bypass mode, all packets received from one port are sent to the adjacent port and vice versa. This feature can bypass the failed system and provide the longest uptime for the network. FF-904TBP-V3.0 Quad Port Gigabit PCI Bypass Server Adapter, includes an onboard WDT (Watchdog Timer) controller. The adapter's software driver or software application can write commands to the onboard WDT controller. The adapter's software driver, WDT controller and bypass circuit provide an interface to control and manage the adapter mode.
Guangruntong FF-904TBP-V3.0 Quad Port Gigabit Ethernet Bypass Server Adapter, based on Guangruntong G350AM4Ⓣ Ethernet controller, has superior product performance.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
