100G Dual fiber port PCI-E x16 Bypass network card included Single mode module with intel E810-CAM2 chip
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
Dual-port 100G rate, Ethernet adapter provides dual-fiber LC port connections
Innovative power management features and Energy Efficient Ethernet (EEE),
Intedrated direct memory access improves efficiency and reduces power consumption
Flexible I/O virtualization technology offers up to 256 virtual channels for port differentiation and Quality of Service (QoS)
High-performance host interface design PCI Express 4.0
Enables protection for backbone network communication

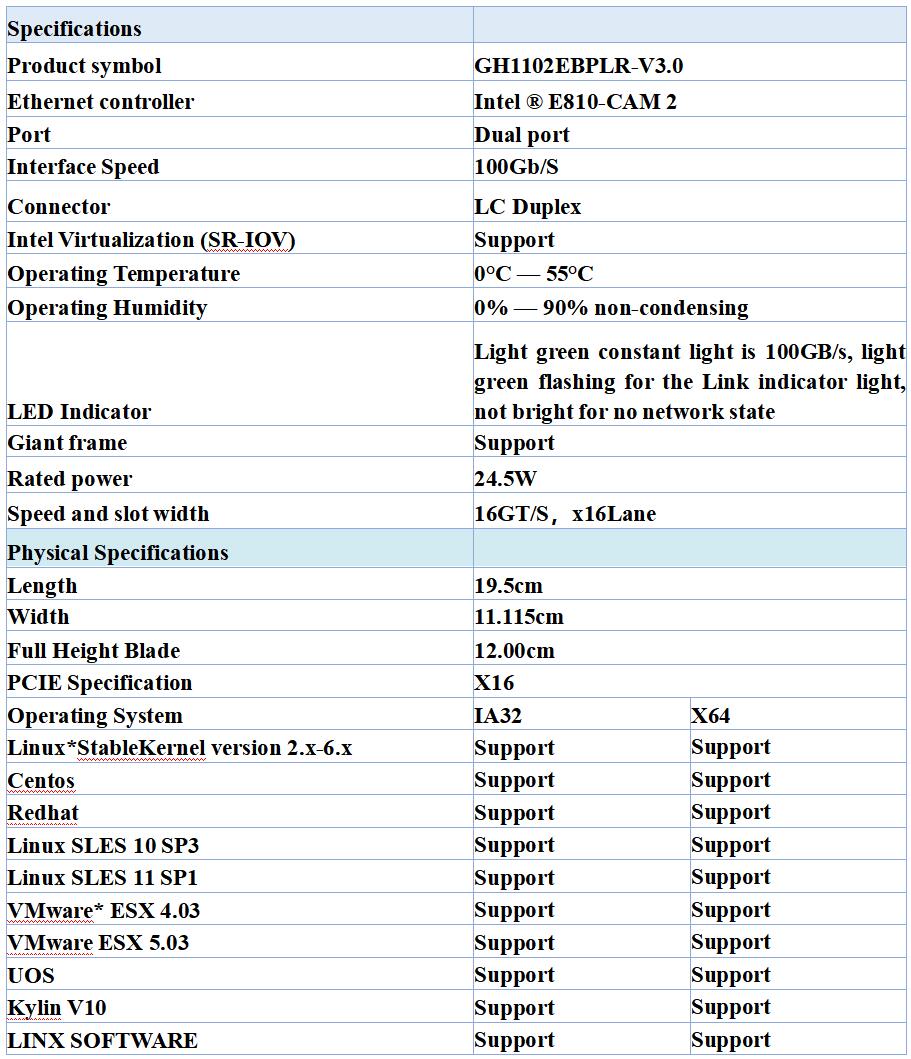

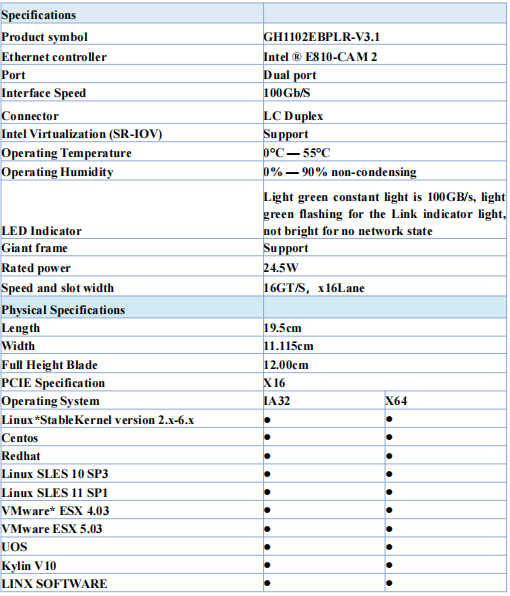

Key attributes
Model Number:GH1102EBPLR-V3.0
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:100GbE
Ethernet controller:Intel E810-CAM2
Application:Servers, GAP, Firewall, storage device,etc
Product description

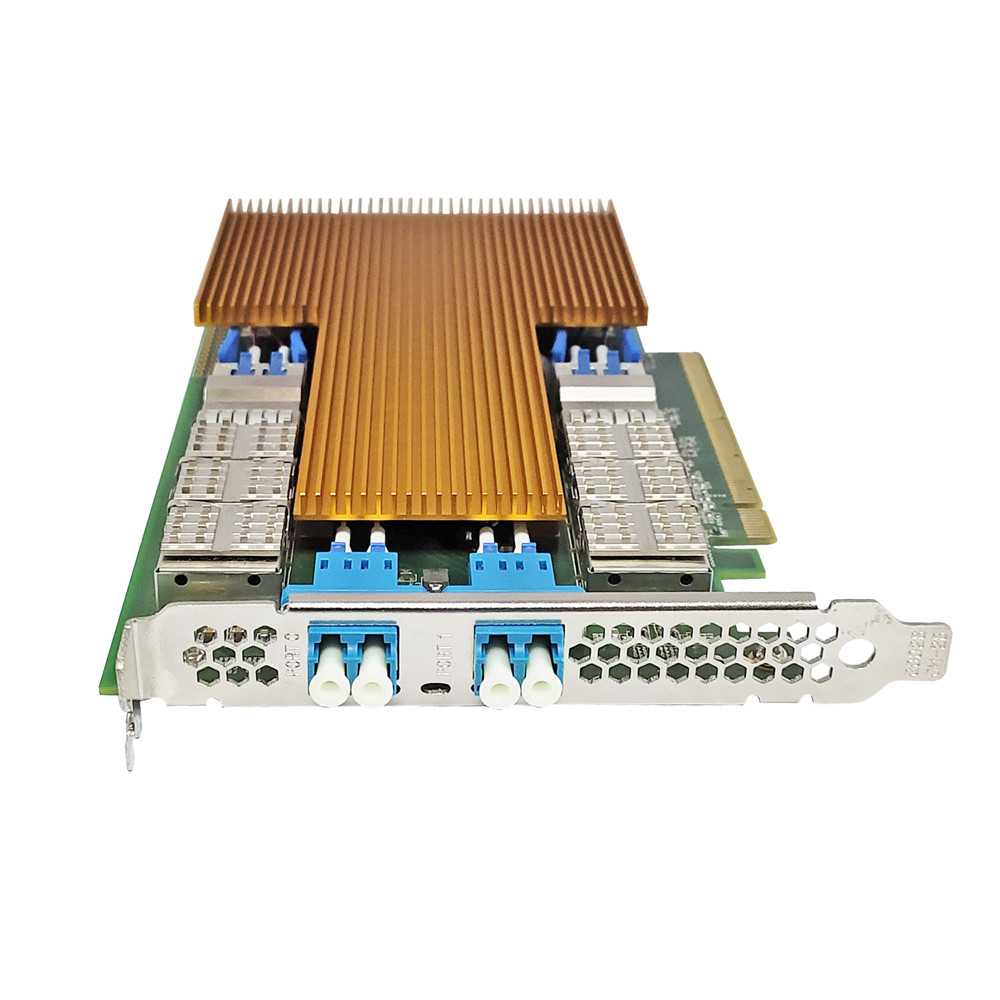

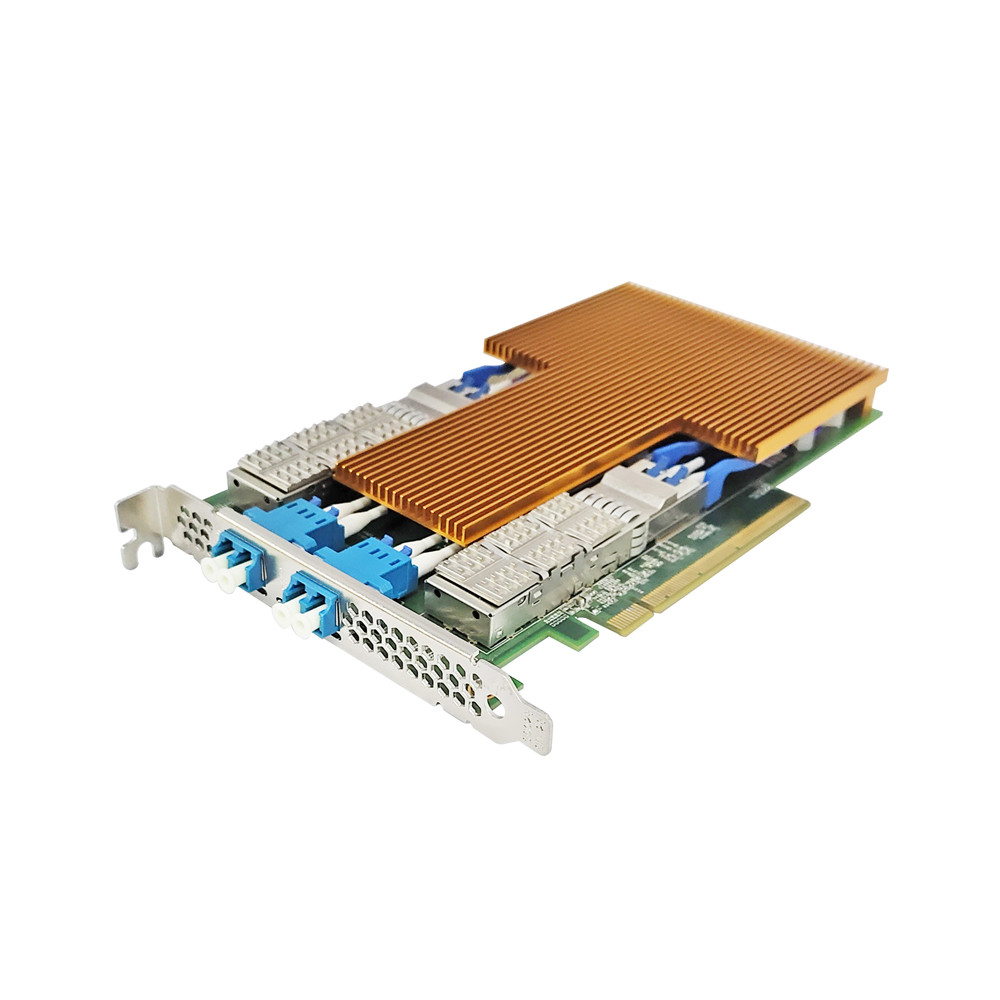

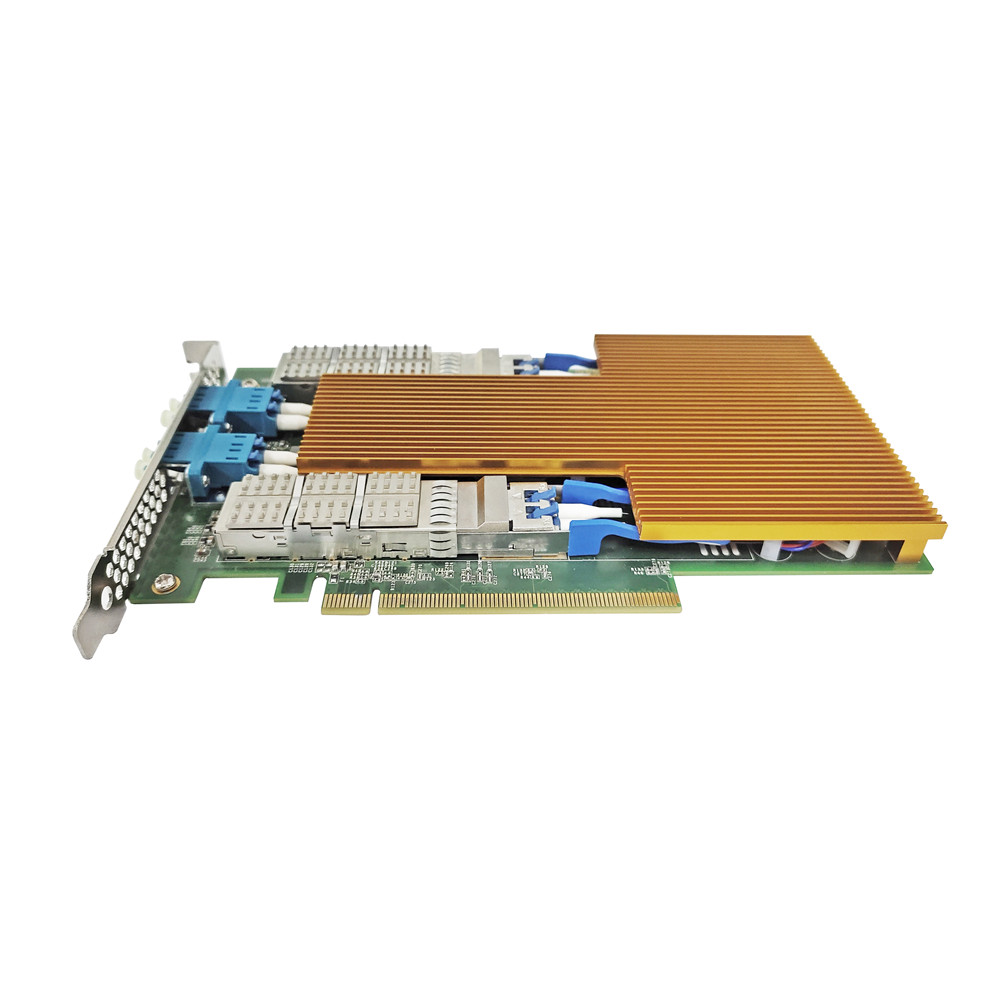

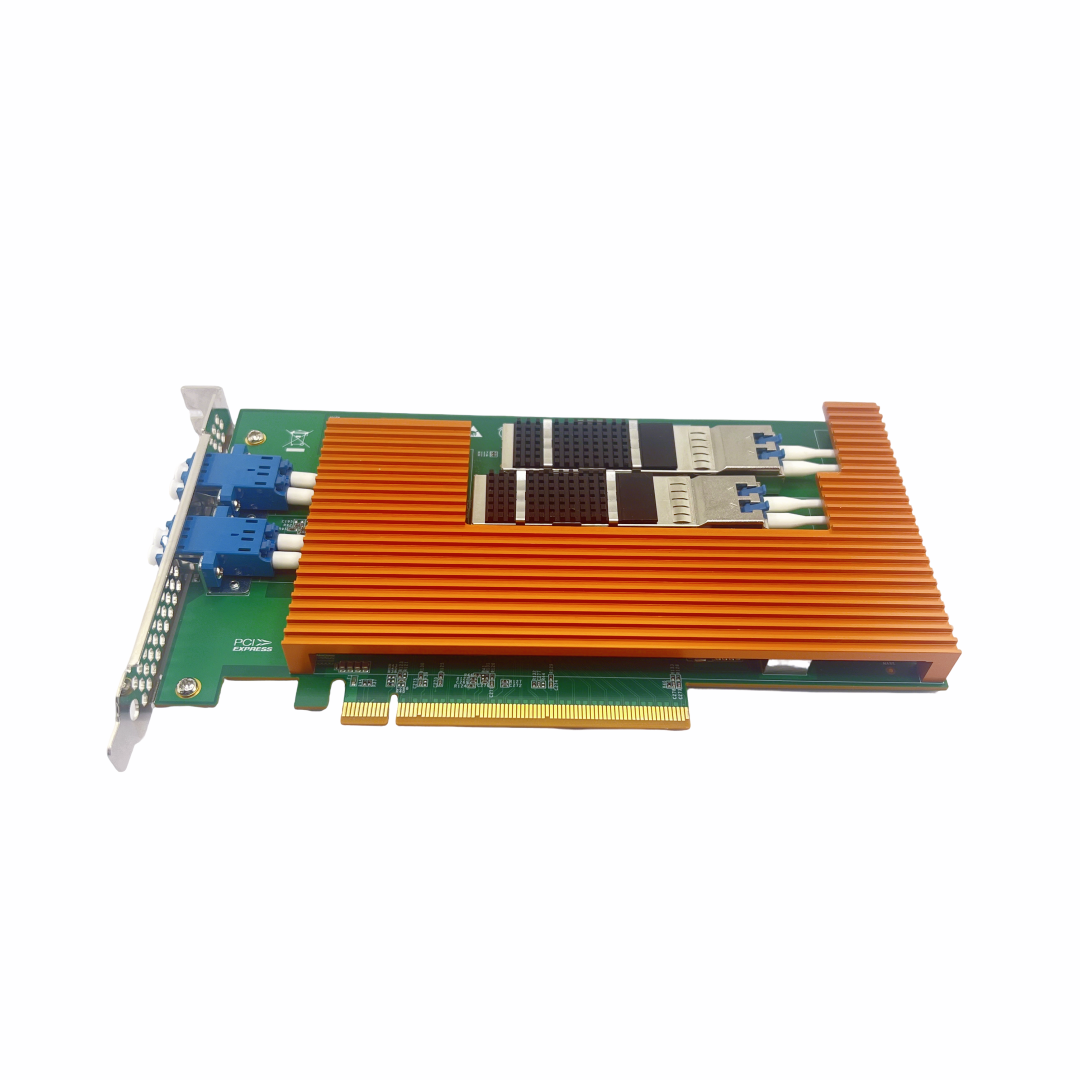

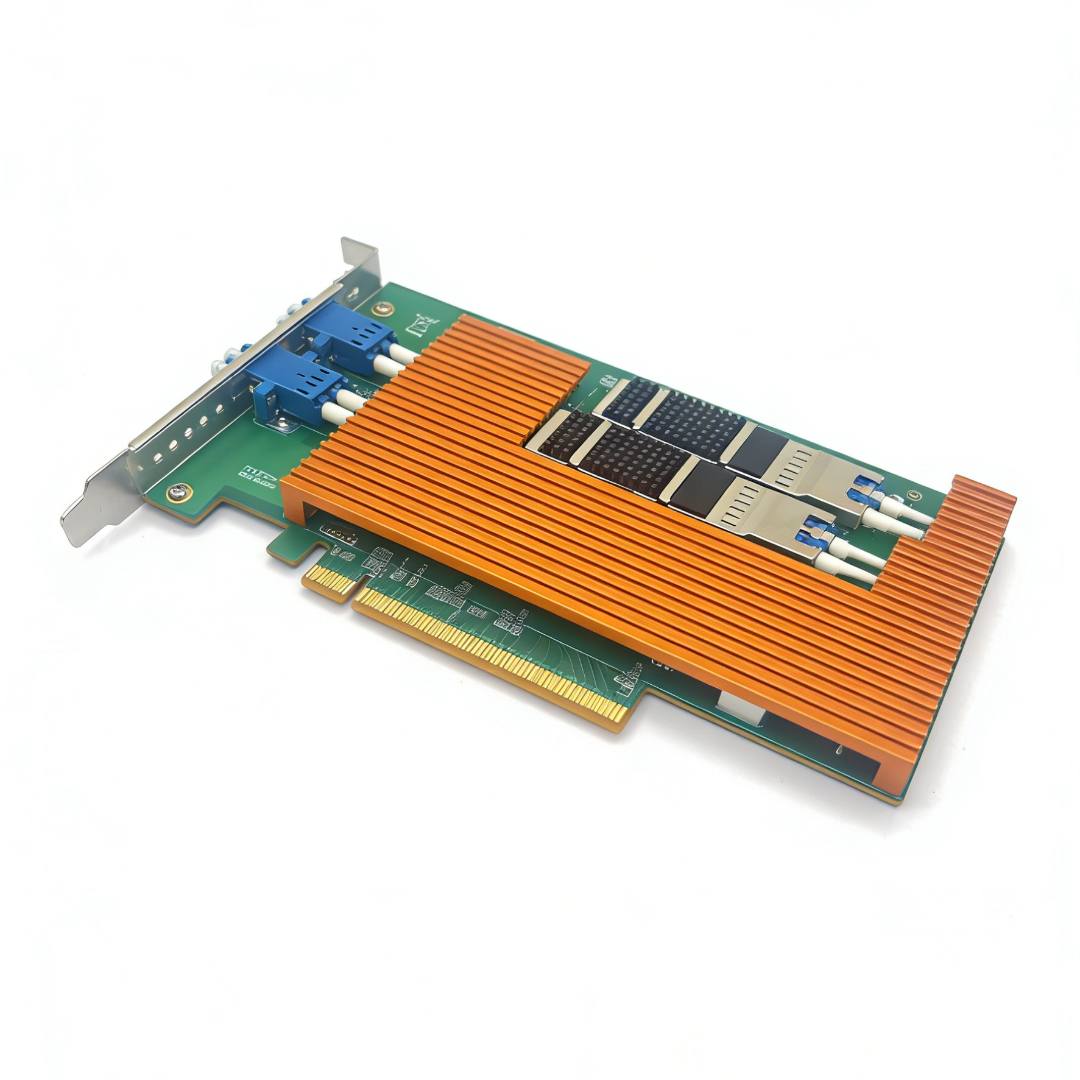

The single-channel dual-port fiber 100G Bypass Ethernet bypass server adapter 3.0 is a PCI-Express X16 network interface card with dual fiber (LR) 100G Ethernet ports (including two 100G single-mode 10KM optical modules) on the PCI-E adapter. This adapter is oriented to the inline network system and maintains network connections in case of system failure. The GH1102EBPLR-V3.0 Dual-port fiber 100G Ethernet bypass server adapter supports normal Ethernet mode, bypass mode, and disconnection mode. In normal Ethernet mode, the port is a separate interface, while in bypass (BYPASS) mode, all packets received from one port will be transmitted to an adjacent port, and in disconnected (Disconnect) mode, the adapter analog switch / path cable is disconnected.
The GH1102EBPLR-V3.0 server adapter can bypass or disconnect its Ethernet port after the host system failure, power shutdown, or software request timeout. In bypass (Bypass) mode, the connection of the Ethernet port is disconnected from the system and switched to another port to create a cross-connection loop back between the Ethernet ports. Thus, in the bypass mode, all data received from one port is sent to adjacent ports and vice versa. This feature bypass faulty system and provides the maximum running time for the network. The GH1102EBPLR-V3.0 dual-port fiber 100G PCIE Bypass server adapter includes an onboard WDT (Watchdog Timer) controller. A software driver or software application can write commands to an onboard WDT controller. The adapter software driver, WDT controller, and bypass circuit provide an interface to control and manage the adapter mode.The GH1102EBPLR-V3.0 Dual-port fiber 100G Ethernet bypass server adapter is based on the Intel E810-CAMM 2 Ethernet controller with superior product performance.
Bypass/Disconnect Function：
- Bypass/disconnect the Ethernet side in case of power failure, system hang or software application hang;
- Software programmable bypass, disconnect or normal mode;
- Onboard (WDT) controller;
- Software programmable timeout interval
Up to 3,276,800 mSec (3,276.8 Sec)
Minimum 100 mSec ( 0.1 Sec)
WDT calculation formula = (2^wdt_interval_parameter)*(0.1) sec.
wdt_interval_parameter: { legal value range: 0-15};
- Software programmable WDT enable/disable counter;
- Software programmable bypass function enable/disable;
- Software programmable disconnect function enable/disable;
- Software programmable mode (bypass, normal or disconnected mode) when powered on;
- Software programmable mode (bypass, normal mode) when the power is turned off;
- Independent bypass operation for every two ports;
- Can simulate standard NIC functions.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
