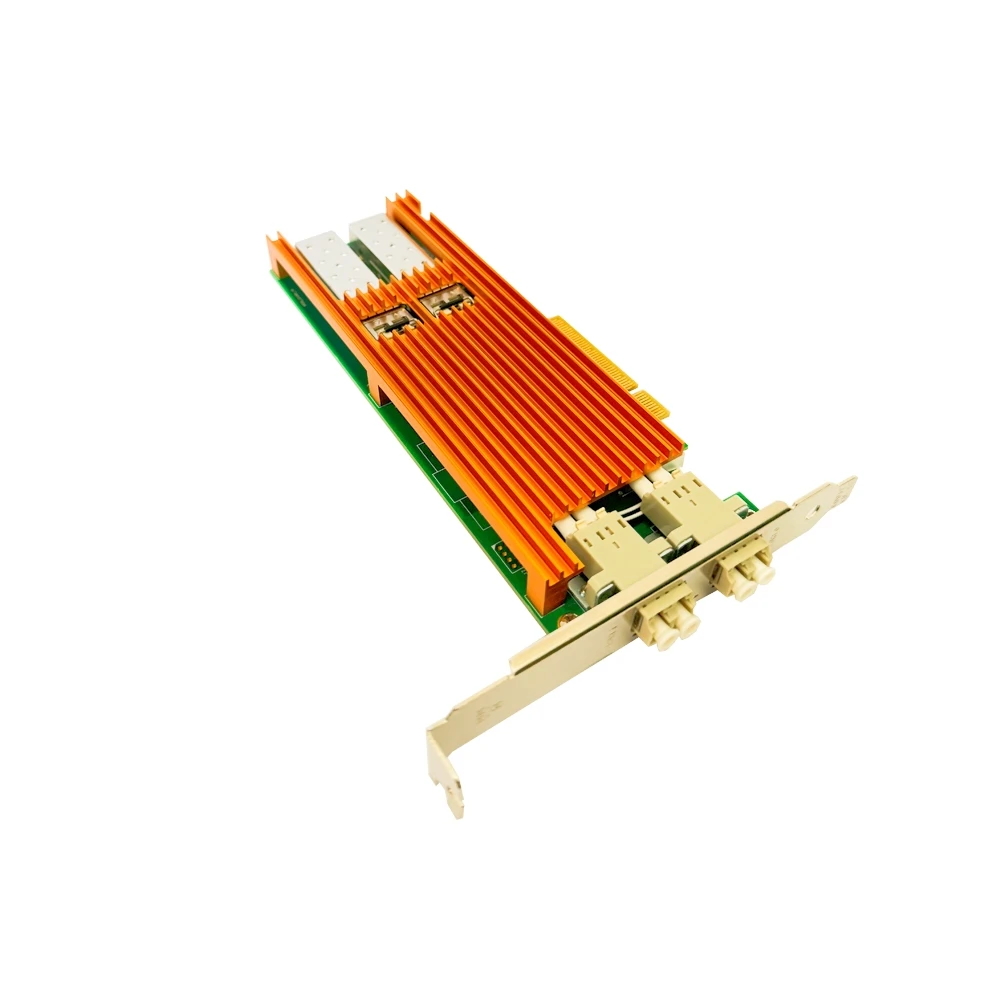

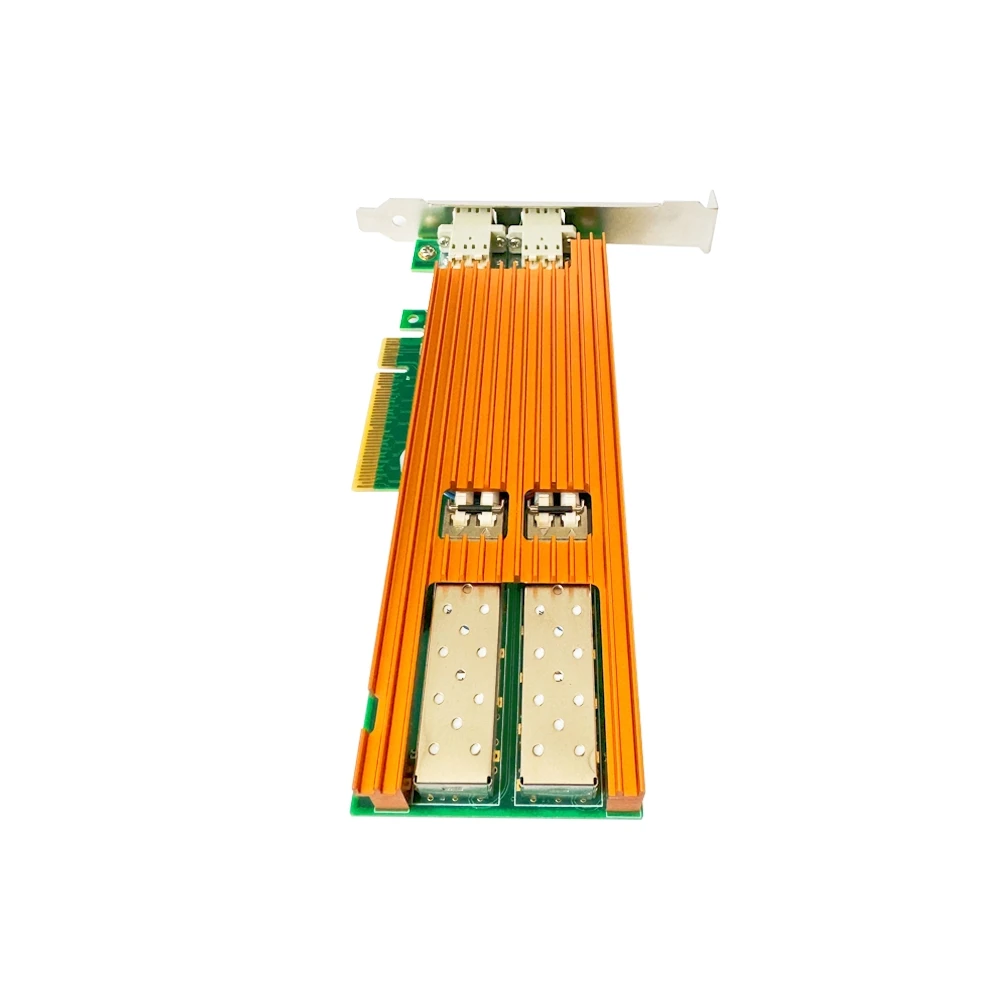

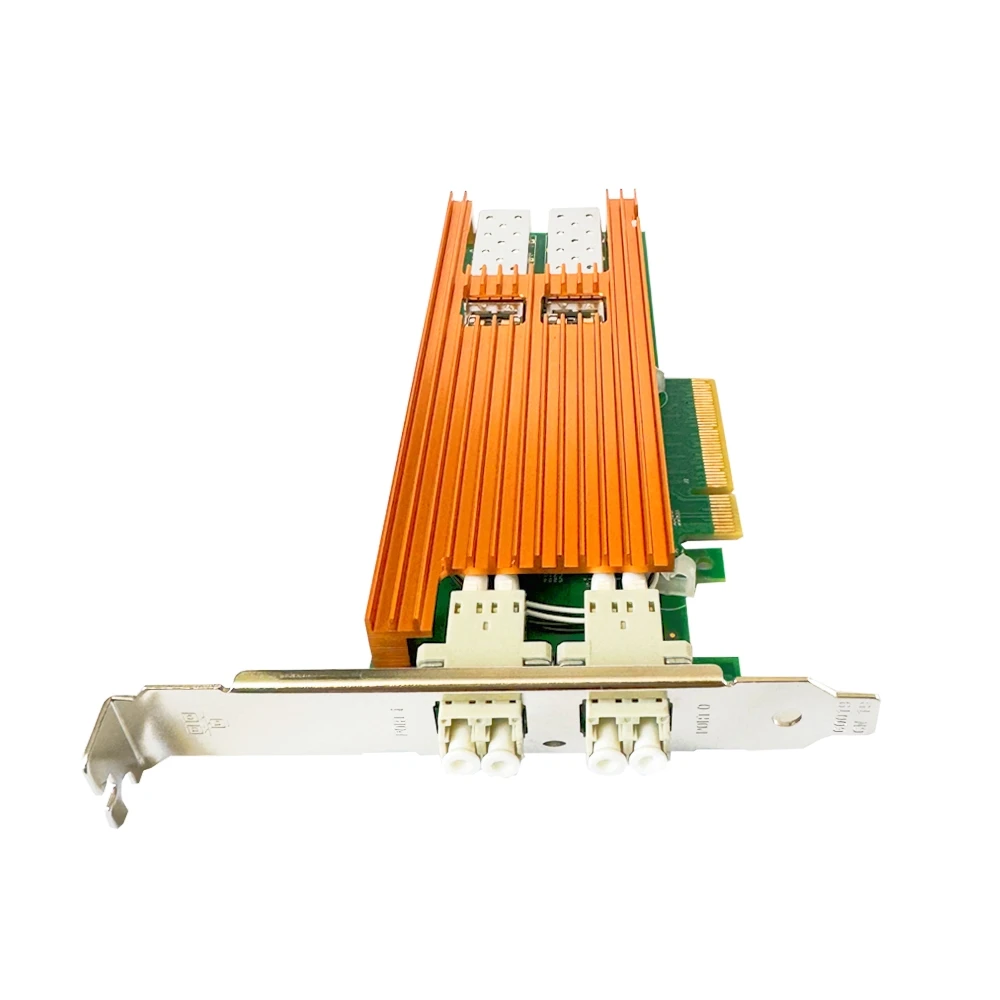

Dual-Port PCIe V2.0 Ethernet Server Bypass Adapter Ethernet 10g Network Card with SR module
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
IEEE 802.x traffic control support.
IEEE 802.q VLAN tag support.
Supports a pattern where all packets received and sent have at least one VLAN tag, except for regular tags.
IEEE 802.1p Layer 2 Priority Code.
Jumbo Frame (up to 16KB)
Link aggregation and load balancing.
RFC2819 RMON MIB statistics.
TCP segment uninstalls up to 256KB.
IPV6 supports IP/TCP receiving receive checksums and uninstalls.
DDP uninstall.
LED for link/active/bypass/off mode status.
Hot-swap is not supported.Reduced handoff latency compared to version 3.0.

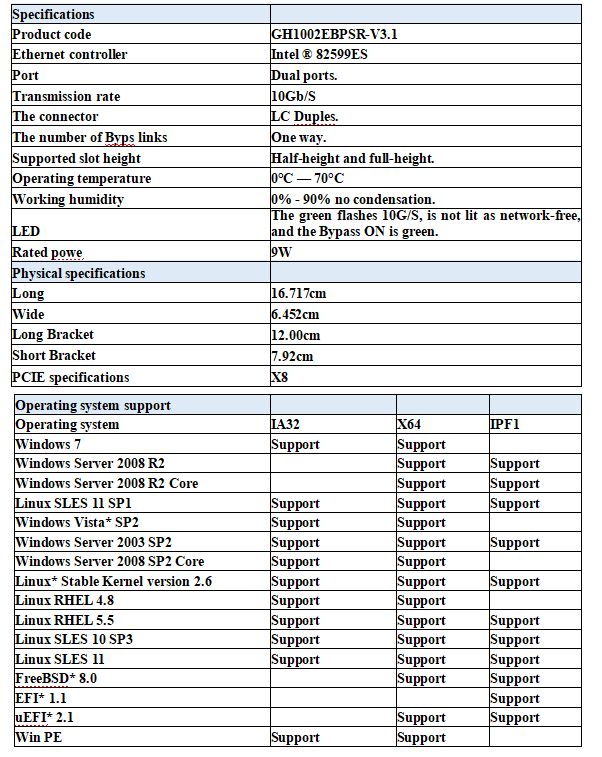

Key attributes
Model Number: GH1002EBPSR-V3.1
Brand Name: GRT
Warranty Time: 3 years
Certification: FCC, RoHS, CE
Data rate: 10GbE
Ethernet controller: Intel®82599ES
Application: Servers, GAP, Firewall, storage device,etc.
Product description

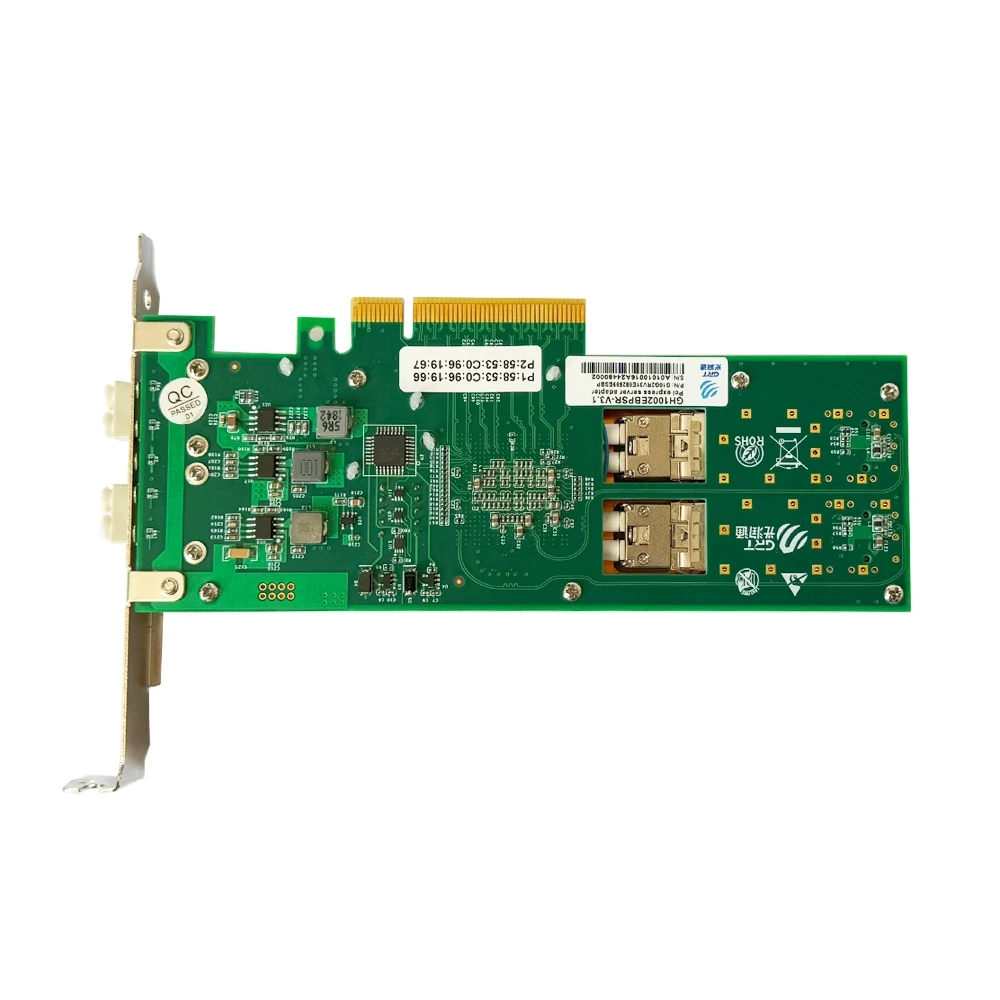

The dual-port fiber 10G Bypass Ethernet bypass server adapter GH1002EBPSR-V3.1 is a PCI-Express X8 network interface card that contains two fiber optic (SR, LR) 10G Ethernet ports on the PCI-E adapter. The GH1002EBPSR adapter is intended for inline network systems and maintains network connectivity in the event of a system failure.
The GH1002EBPSR dual-port fiber 10G Ethernet bypass server adapter supports normal bypass and disconnect modes. In Normal mode, the port is a separate interface, while in BYPASS mode, all packets received from one port are transferred to adjacent ports, and in Disconnect mode, the adapter analog switch/path cable is disconnected.
The GH1002EBPSR server adapter can bypass or disconnect its Ethernet ports in the event of a host system failure, power shutdown, or software request. In Bypass mode, the connection to the Ethernet port is disconnected from the system and switched to another port to create a crossover loop-back between the Ethernet ports. Therefore, in bypass mode, all groupings received from one port are sent to adjacent ports and vice versa. This feature bypasses failed systems and provides the longest running time for the network. The GH1002EBPSR dual-port fiber 10G PCIE Bypass server adapter includes an on-board WDT (Gate-nor Timer) controller. The adapter's software driver or software application can write commands to the on-board WDT controller. The adapter's software driver, WDT controller and bypass circuit provide an interface for controlling and managing adapter mode.
The two-port fiber 10G Ethernet bypass server adapter of the GH1002EBPSR is based on the Intel 82599ES Ethernet controller and offers superior product performance.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
