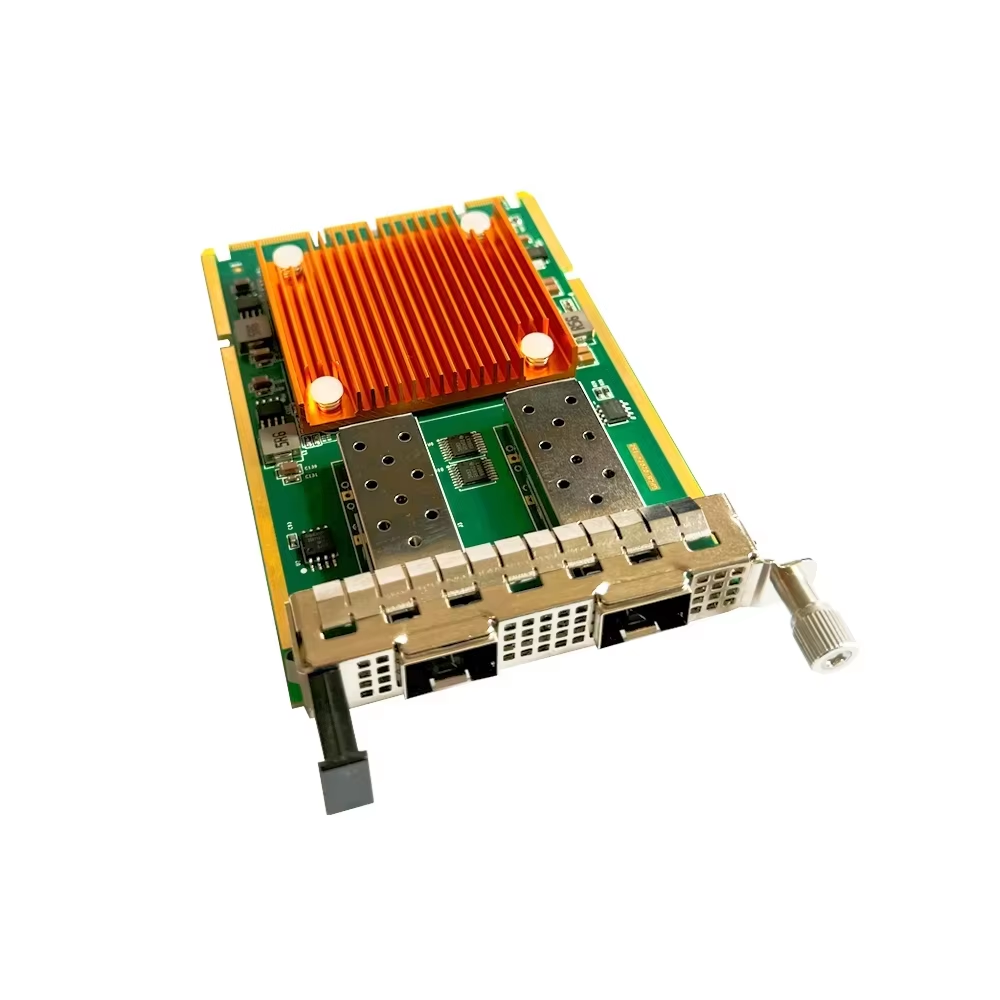

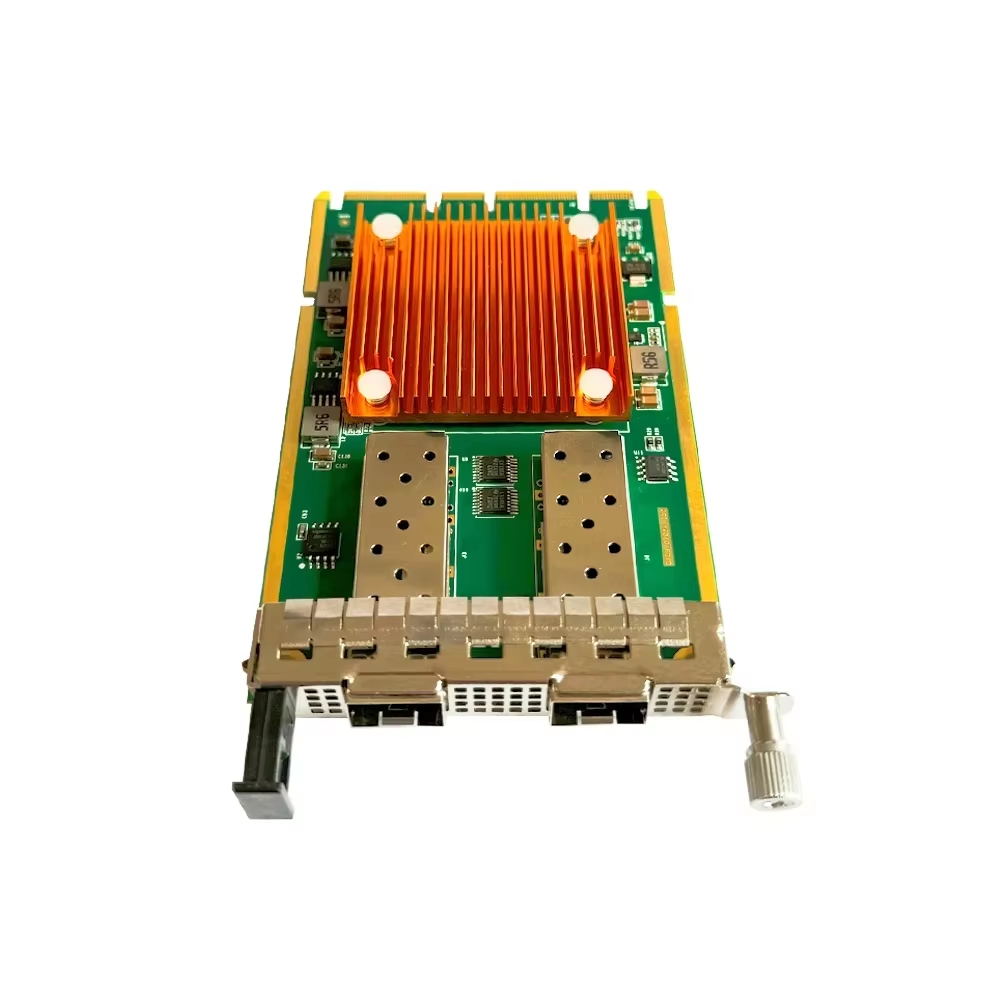

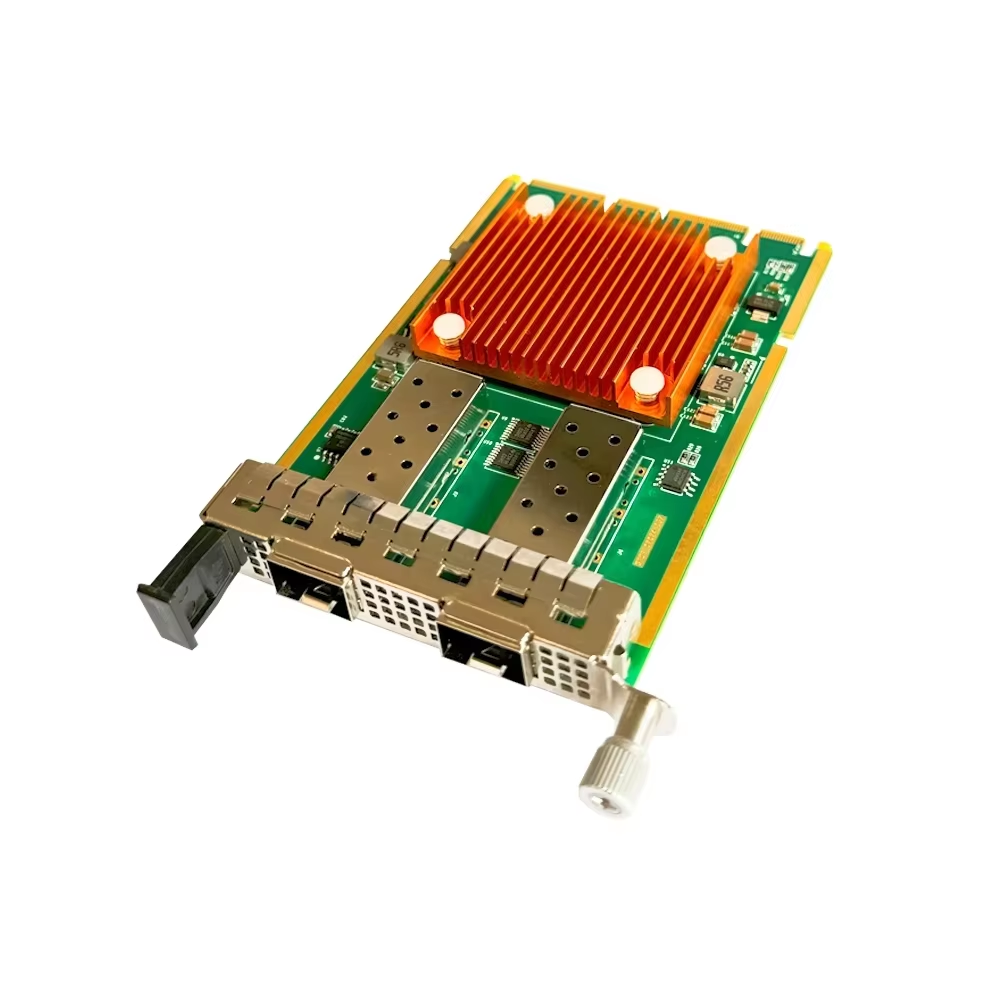

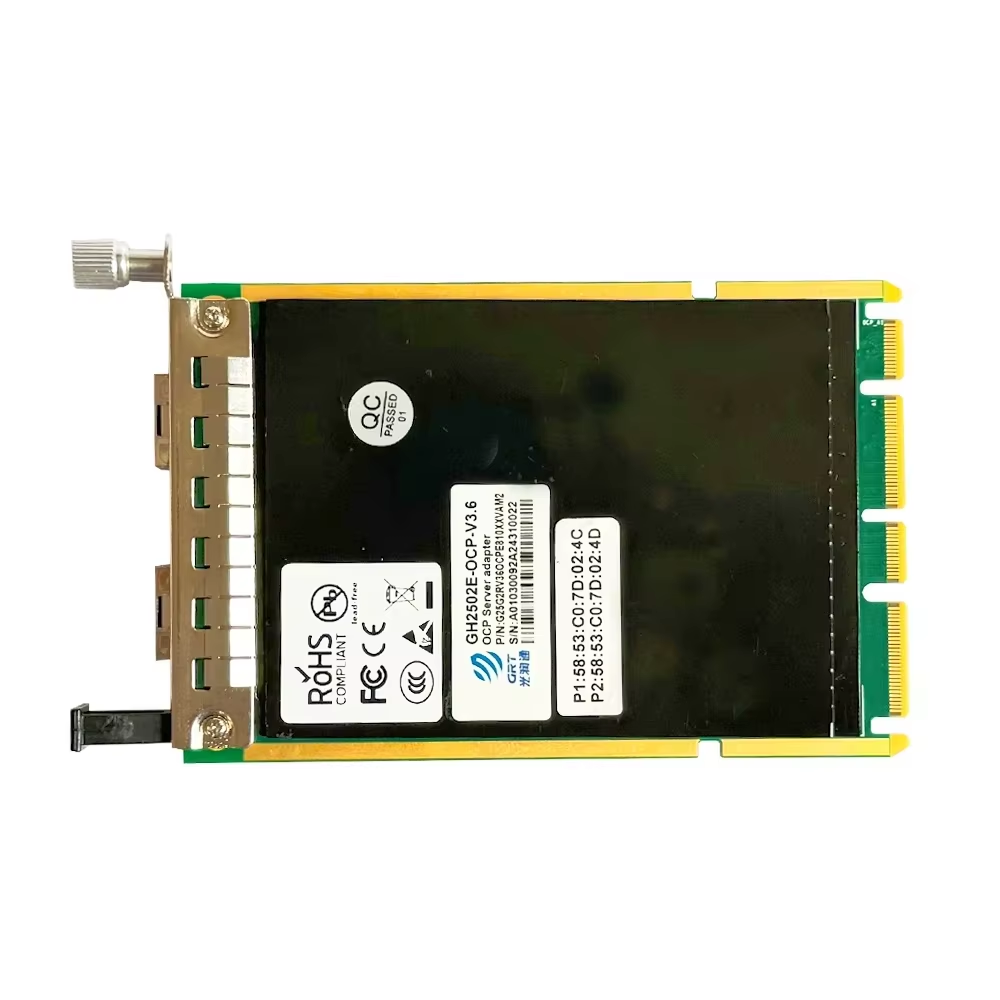

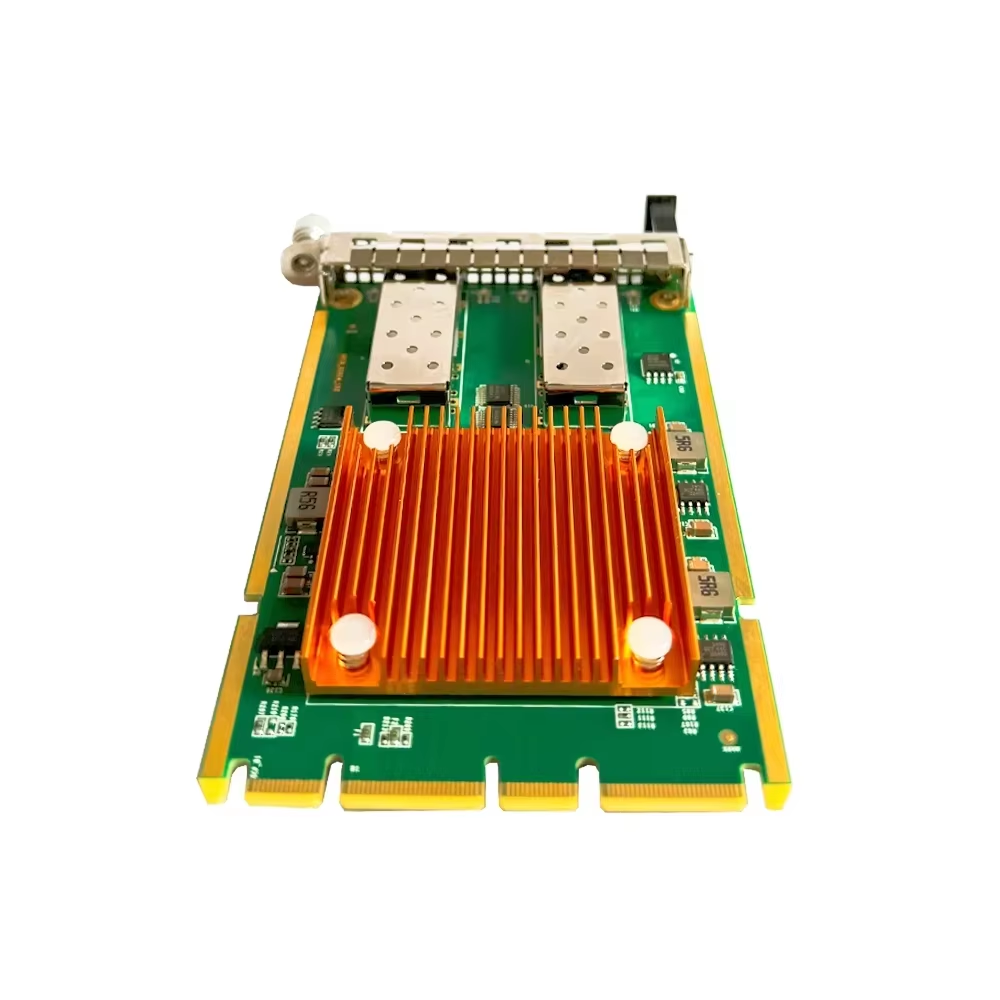

25G dual fiber port OCP 3.0 Mezzanine Network Interface Card With Intel E810-XXVAM2 chip
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product feature
Dual-Port 25G 10 Gigabit Ethernet Adapter Provides SFP28 Module Connectivity
Innovative power management features and Energy Efficient Ethernet (EEE) with integrated direct memory improve efficiency and reduce power consumption
Flexible I/O virtualization technology provides up to 128 virtual channels for port differentiation and Quality of Service (QoS)
Storage-intelligent offload solution via native OS(including NAS, iSCSI and FCoE) for competitive performance
Supports hot-swap
RDMA support

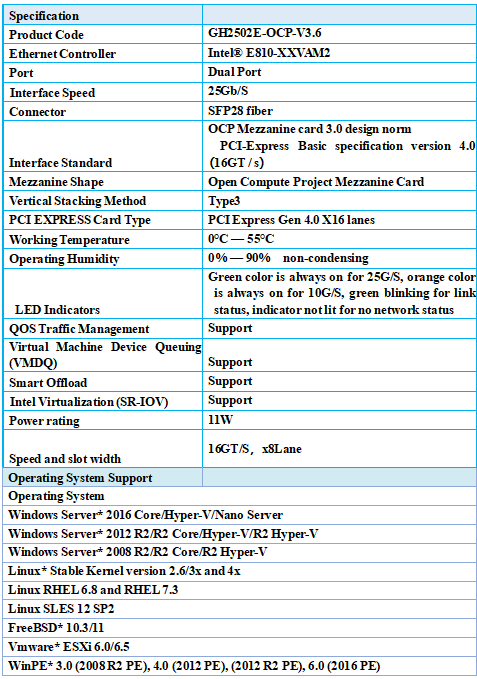

Key attributes
Model Number: GH2502E-OCP-V3.6
Brand Name: GRT
Warranty Time: 3 years
Certification:FCC, RoHS, CE
Data rate: 25 GbE
Ethernet controller: Intel®E810-XXVAM2
Application:Servers, GAP, Firewall, storage device,etc.
Product description
The GRT 25G Dual Optical Port Ethernet OCP Mezzanine Card GH2502E-OCP-V3.6 is based on the Intel E810-XXVAM2 Ethernet controller with fully integrated 25G Ethernet Media Access Control (MAC) and SFI interfaces. In addition to managing MAC and PHY Ethernet layer functions, the controller also manages PCI Express packet traffic at its transaction, link and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host such as TCP/UDP/IP checksum calculations and TCP segmentation.
The GRT 25G Ethernet OCP Mezzanine Card is the ideal solution for implementing multiple segments in high performance OCP servers for mission critical high performance network applications and environments.
Host Interface:
- Supports OCP Mezzanine Card 3.0 design specification.
- Supports connectors mounted on mezzanine cards
- PCI Express Gen 4.0 X16 lanes
Size Form Factor.
Open Compute Project Mezzanine Card, Type 3
25G 10 Gigabit Ethernet Adapter.
--SRD: Fiber 25G Ethernet rate.
10000BASE-SX with 10G 850nm small form factor pluggable (SFP +)
1G BASE-SR with 1Gigabit 850nm Small Form Factor Pluggable (SFP)
-LRD: Fiber 25G Ethernet Base-LX
10000BASE-LX with 10G 1310nm small form factor pluggable (SFP +)
1GBASE-LR with 1Gigabit 1310nm Small Form Factor Pluggable (SFP )
LAN and virtualization features:
- VXLAN and NVGRE network virtualization offloading
- Unified Networking provides a single line for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
- Virtual bridging support - VEPA / 802.1Qbg, BPE / 802.1Qbh
- Virtualization supports 64 virtual ports per port
- Virtualization - Relieves hypervisor I/O bottlenecks by providing stream separation for virtual machines (VMs)
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
