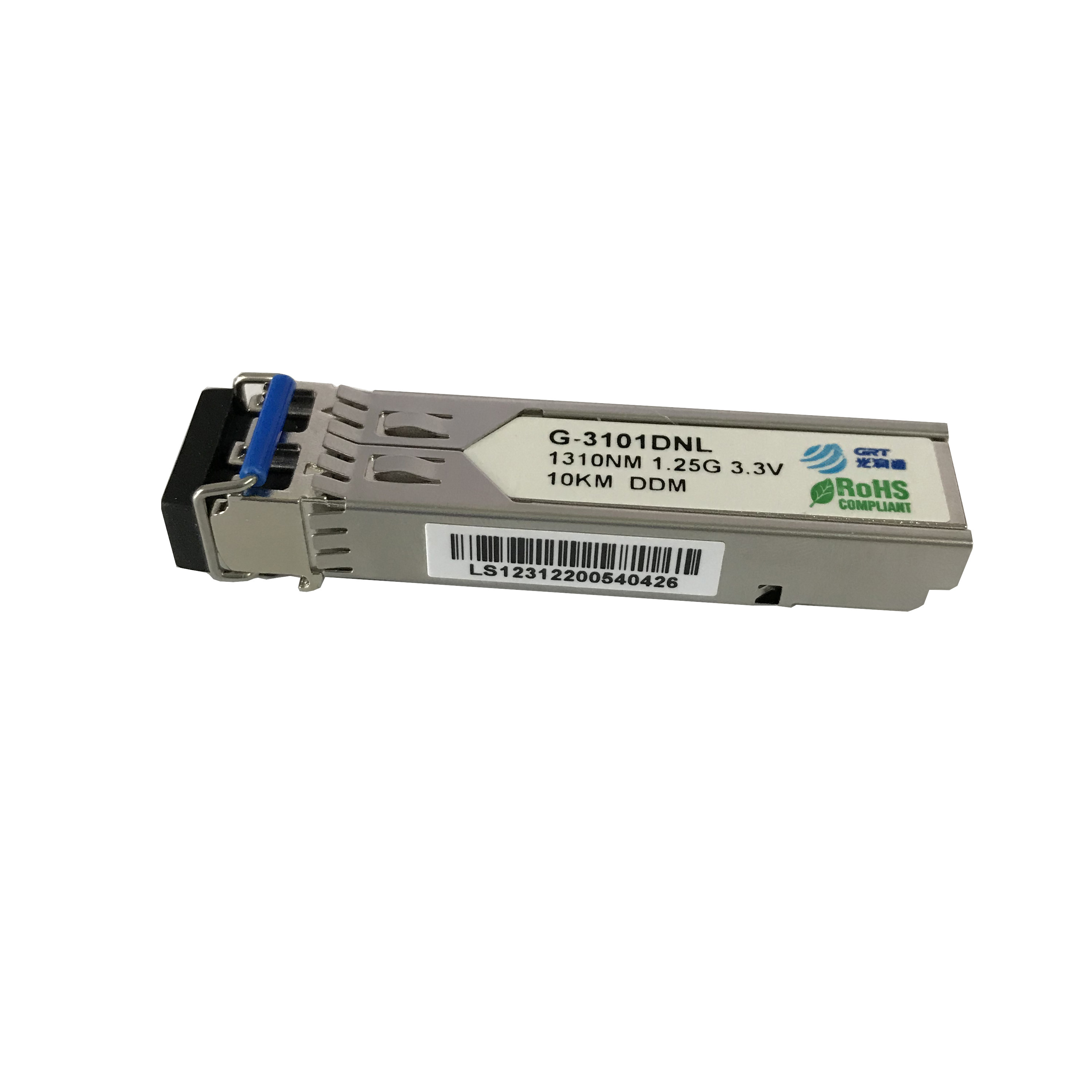

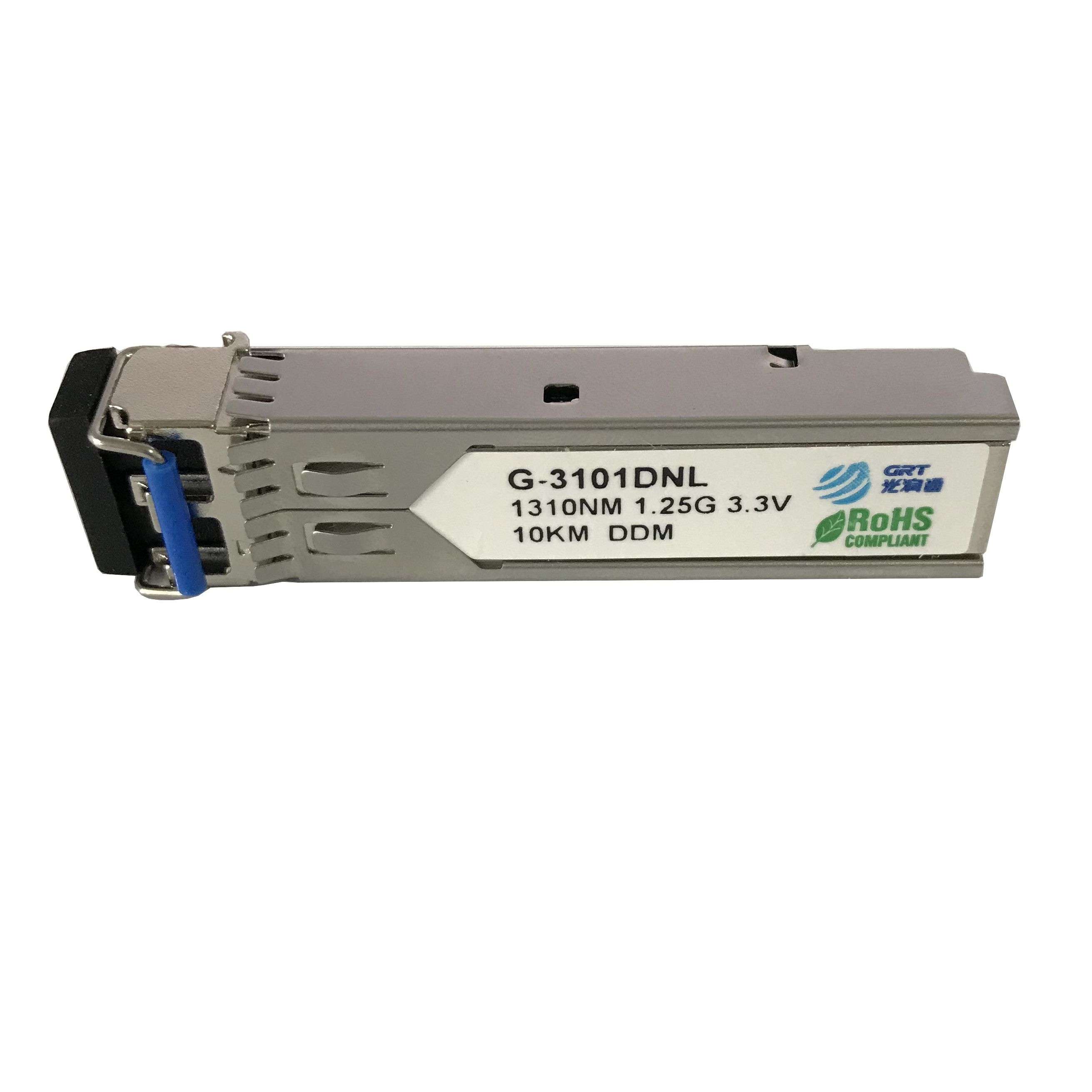

1.25G 1310nm 10km Single Mode Fiber Optical Transceiver Module
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product Features
SFP package with duplex LC connector
1310nm SFP laser and PIN photo detector
Up to 10Km transmission on SMF
+3.3V single power supply
LVPECL compatible data input/output interface
Low EMI and excellent ESD protection
laser safety standard IEC-60825 compliant
Compatible with RoHS
Digital Diagnostic SFF-8472 compliant
| Code Number | G-3101DNL |
| Data Rate | 1.25Gbps |
|
Operating wavelength |
1310nm |
| Transmission Distance | 10 km |
| Commercial Case Temperature | 0-70℃ |
| Mode | Single mode |
| DDM diagnostic function | yes |
| Certification | ISO9001, CE, FCC, RoHS |
| Application | Switches, Routers, VPN, Firewall |
| Warranty Time | 3 years |
Application
NIC network cards
Switches
Routers
VPN equipment
Traffic control device
GAP
Fiber Media Converter
Firewall
Storage device
Telecommunication
Fiber Channel
Customer Ordering
For each model of optical module, there're 3 levels for choice.
|
Product Level |
Description |
| Aerospace Level | made by 100% imported material |
| Telecommunication Level | 60% of material are imported |
| Network Level | chipset imported, others are of dometic brand |
Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packaging & Shipping
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
