GRT Single Mode Channel Dual Fiber Port Server Bypass Ethernet Adapter with G350AM2Ⓔ
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
1、Product feature
The dual-port Gigabit Ethernet adapter provides a gigabit single-mode SFP
optical port interface connection
Innovative power management features and energy efficient Ethernet, integrated direct memory
Improvements reduce power consumption
Intelligent Bypass control chip, open source API design and integration standard
NIC function it has the ability to function as Bypass
Pure domestic design, autonomous control

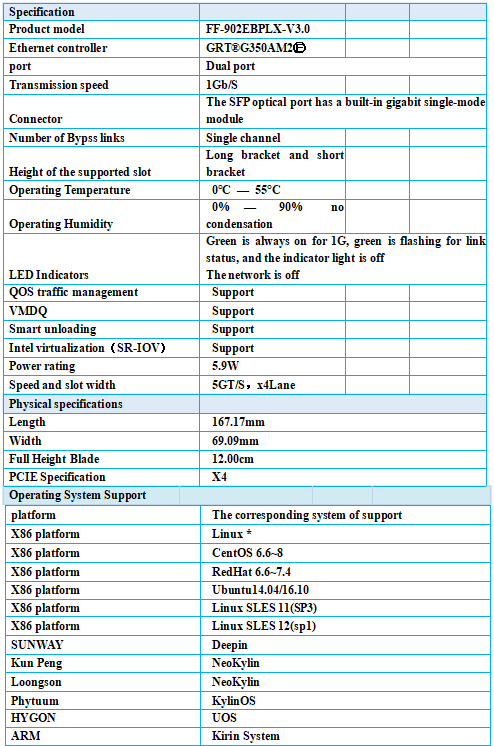

2、Key attributes
Model Number: FF-902EBPLX-V3.0
Brand Name: GRT
Warranty Time: 3 years
Certification:FCC, RoHS, CE
Data rate: 1 GbE
Ethernet controller:GRT®G350AM2Ⓔ
Application:Servers, GAP, Firewall, storage device,etc.
3、Product description

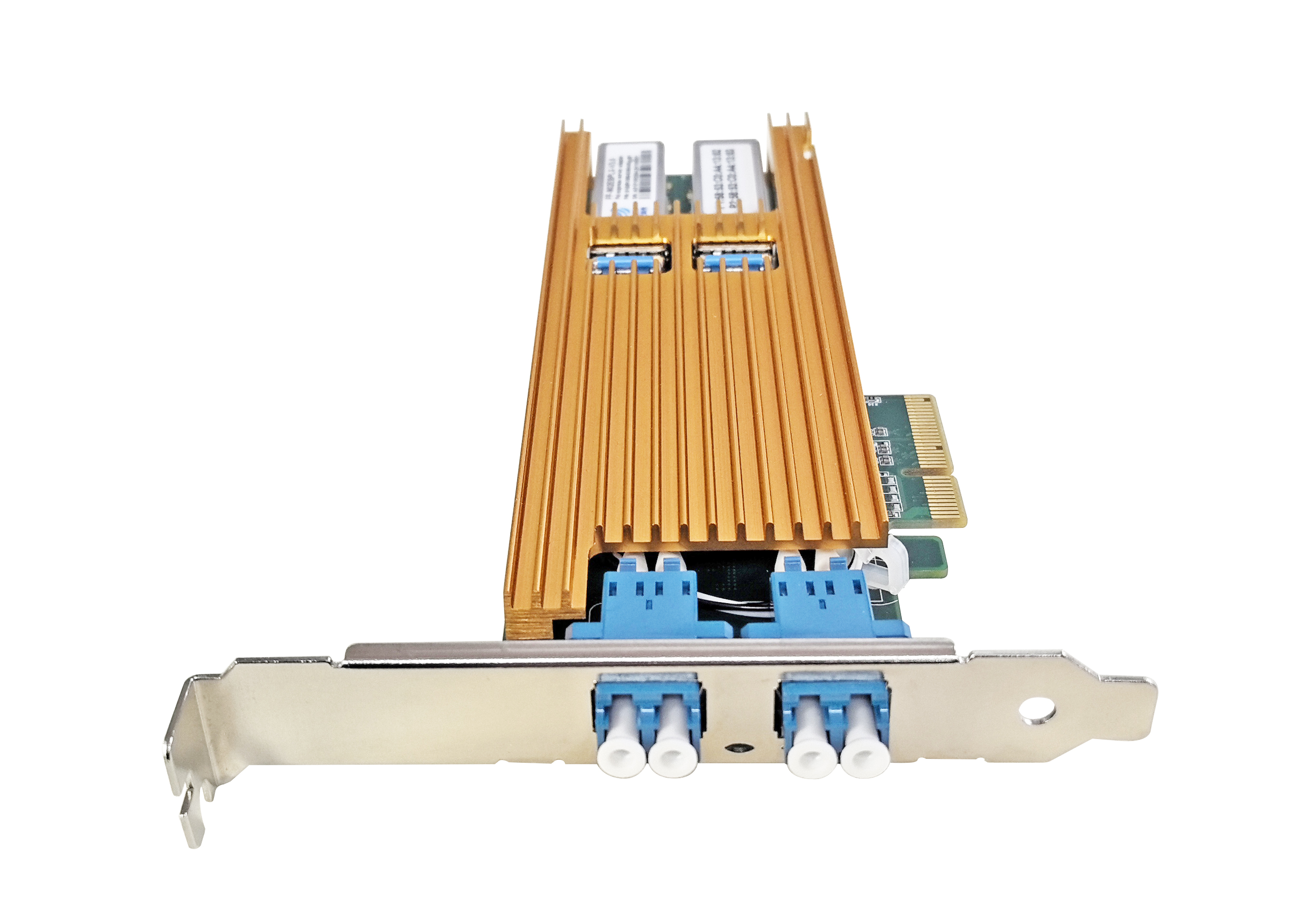

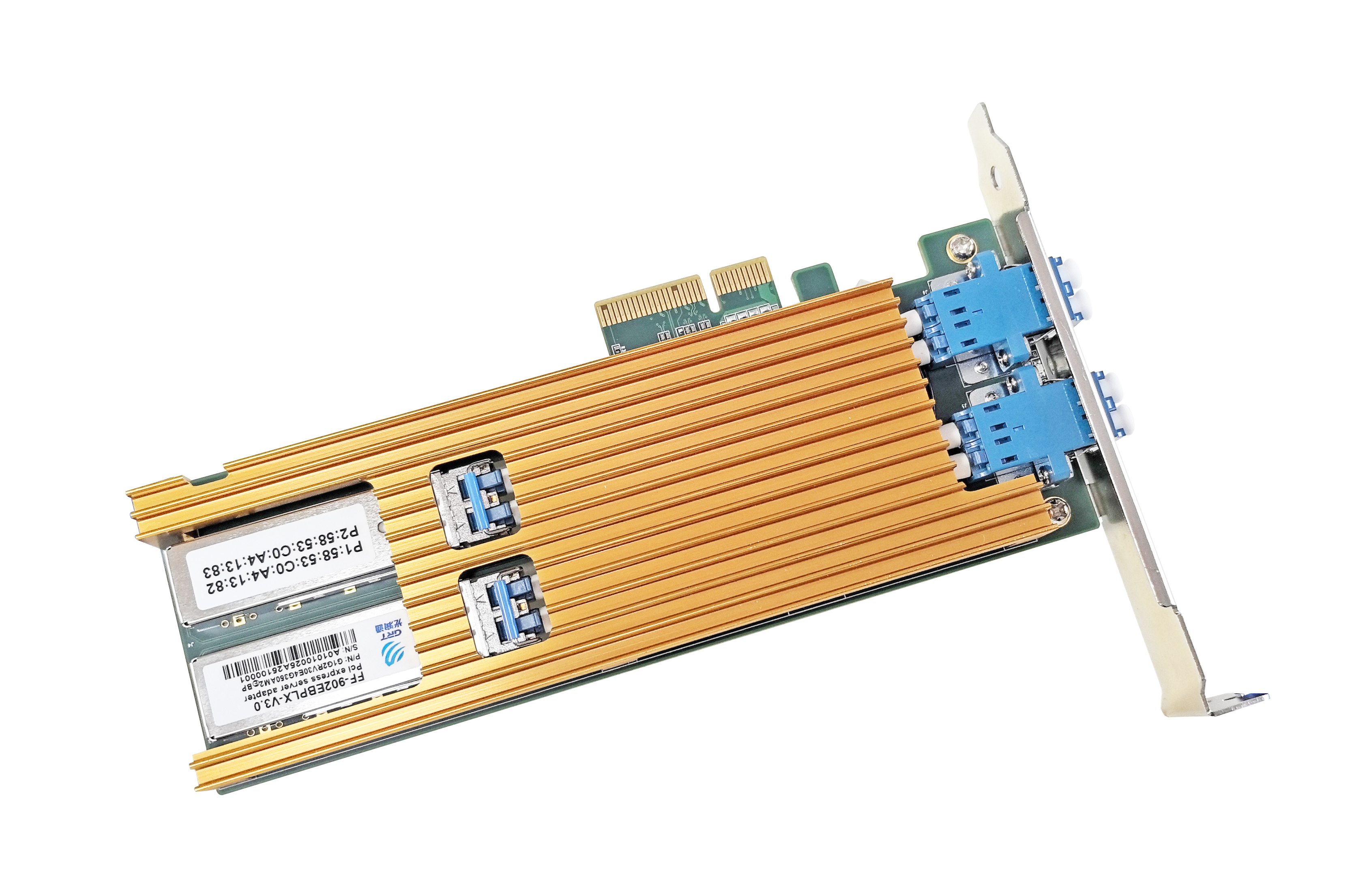

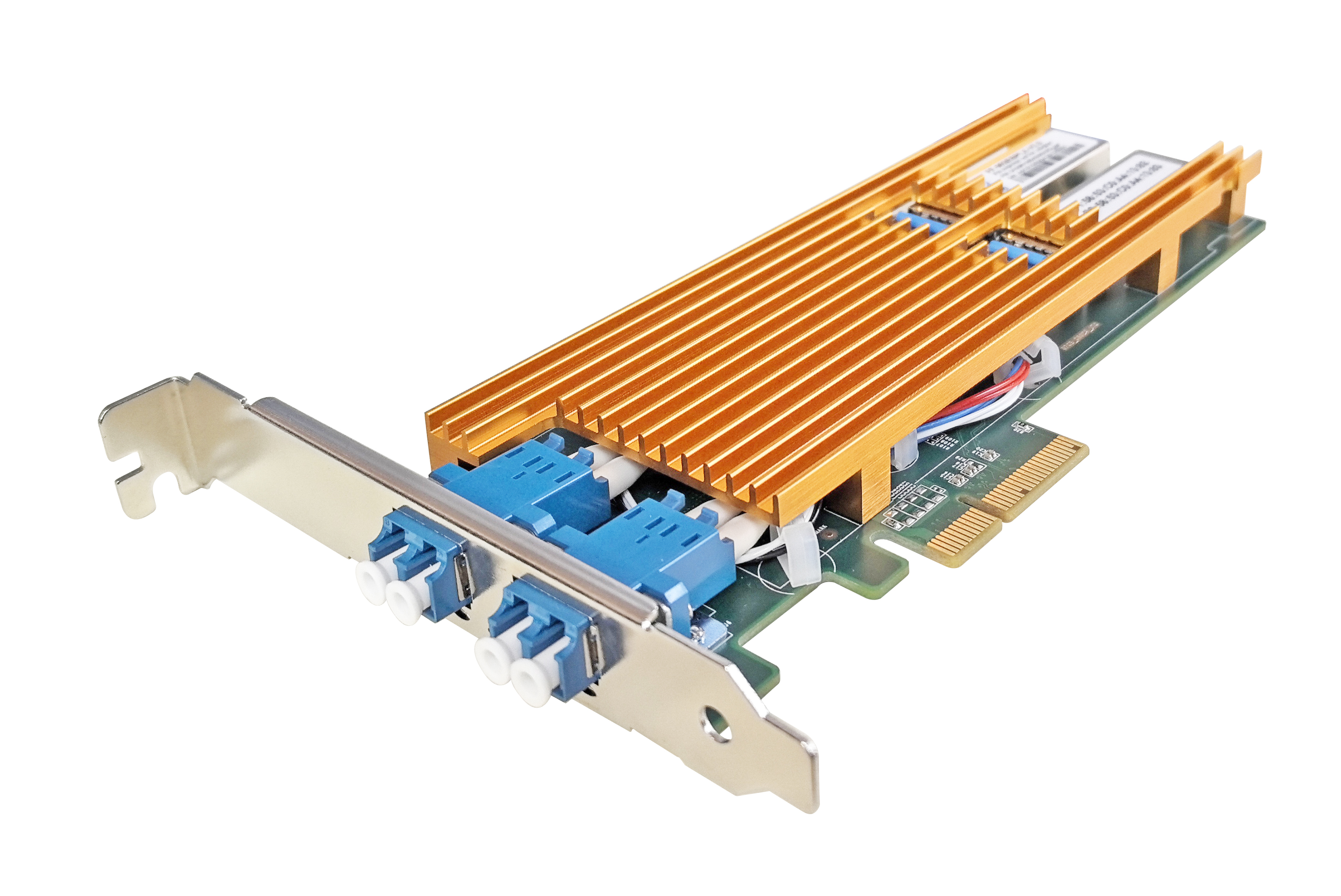

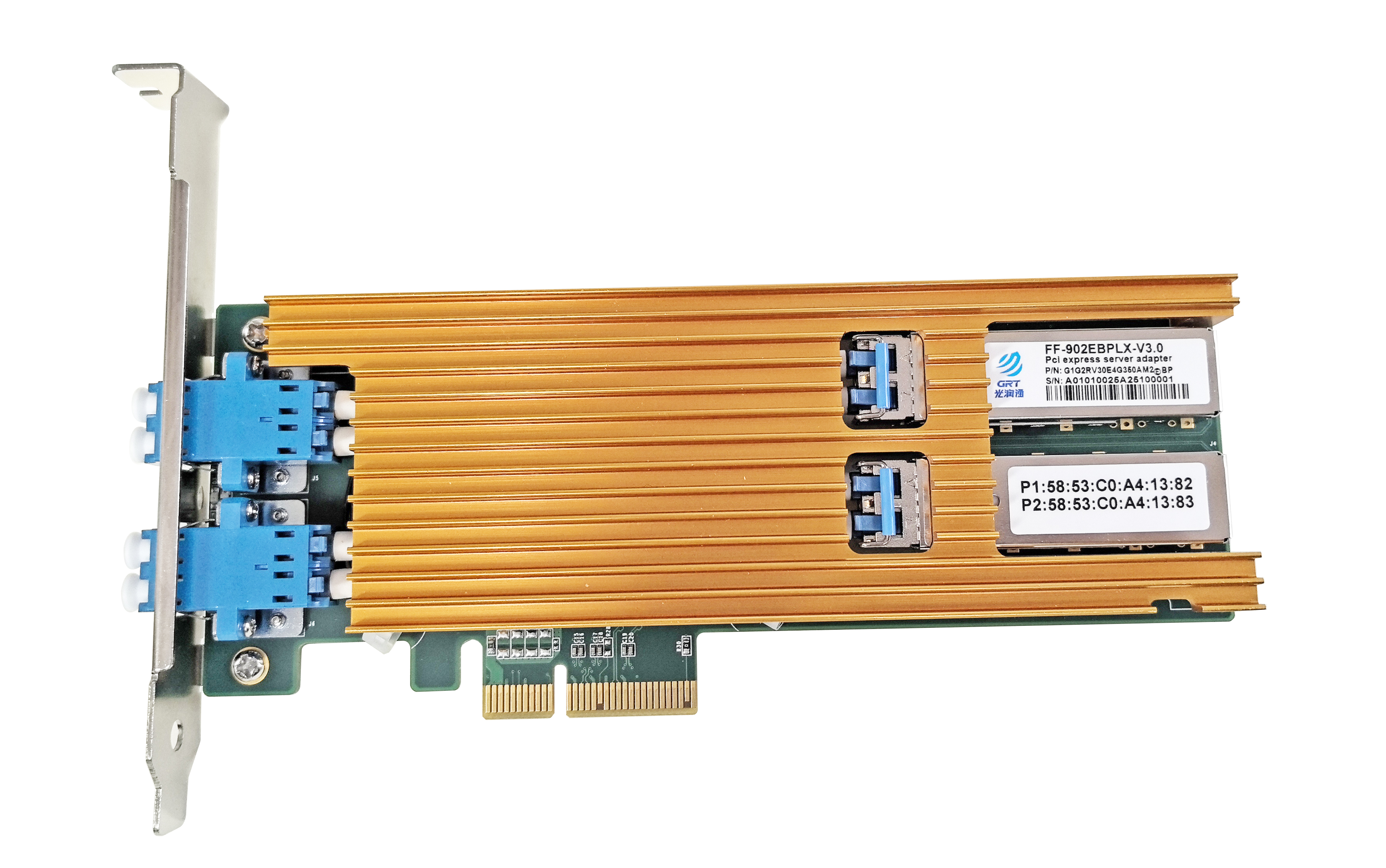

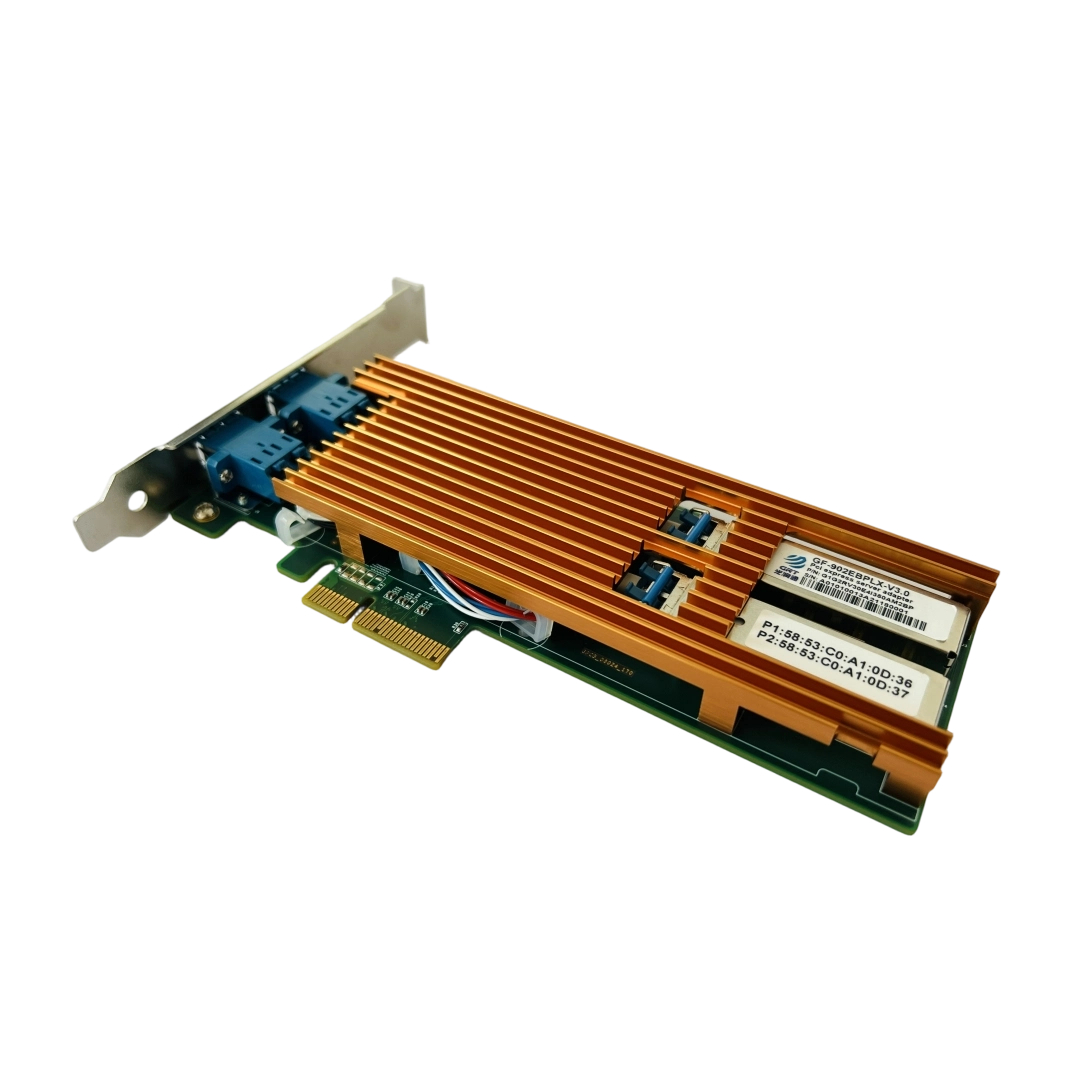

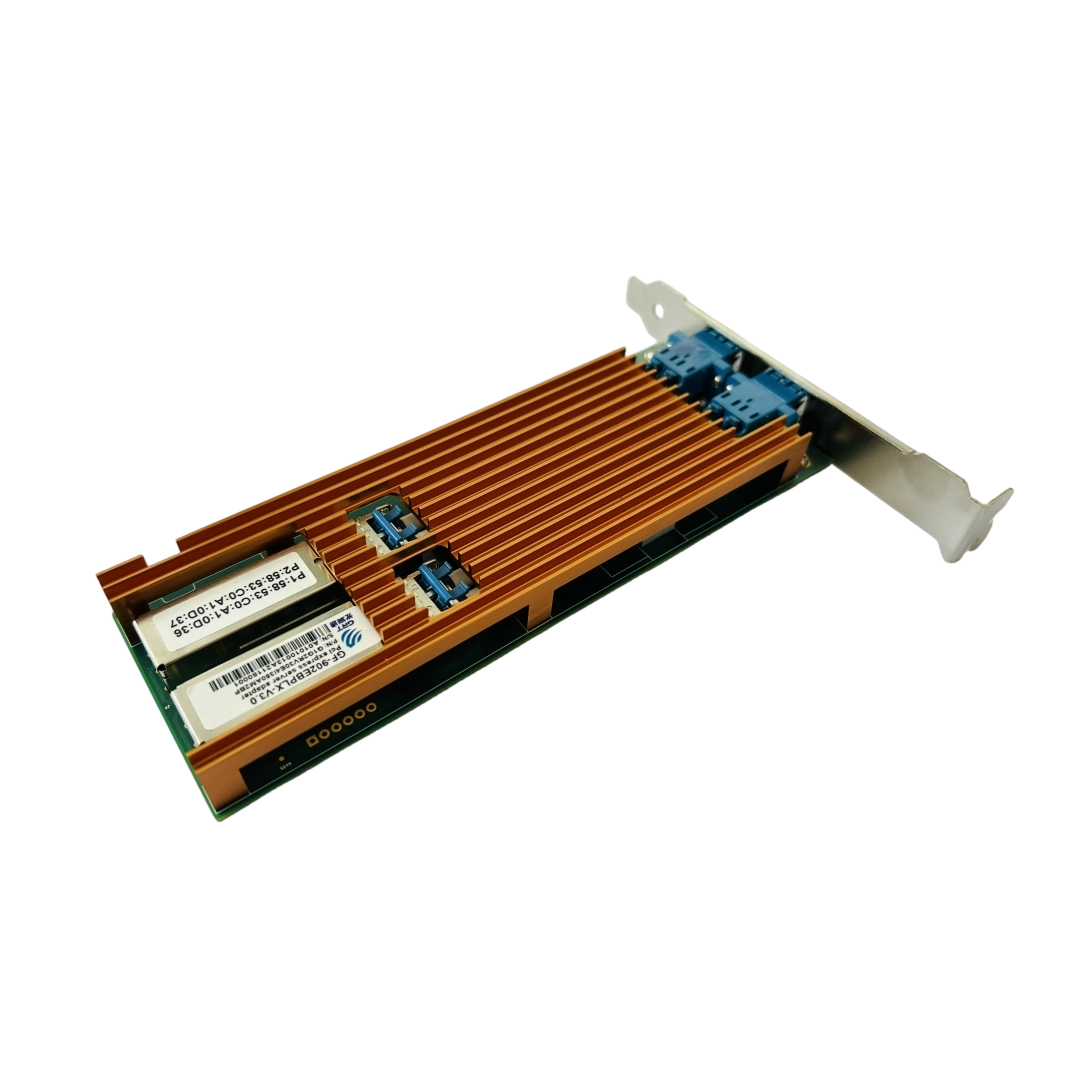

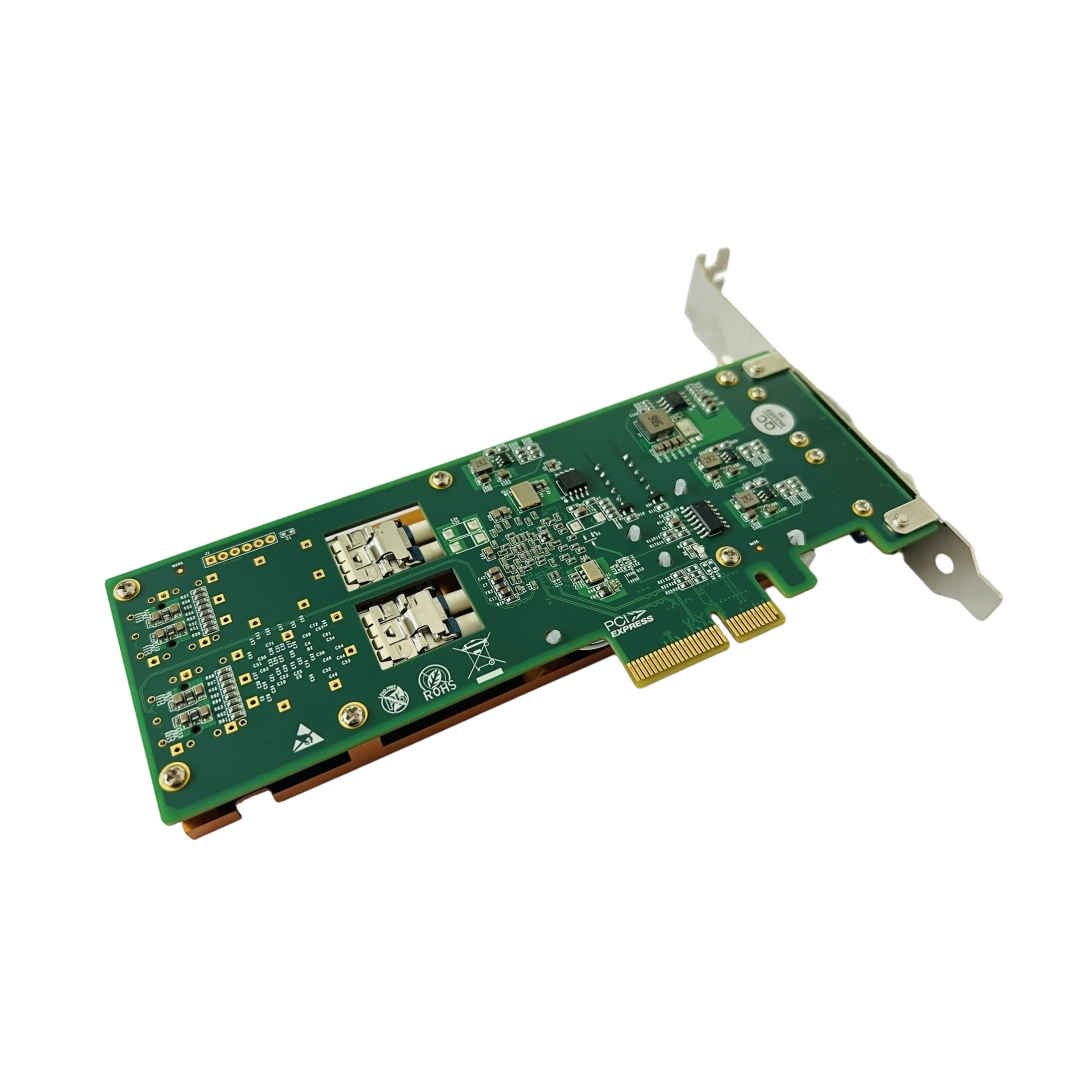

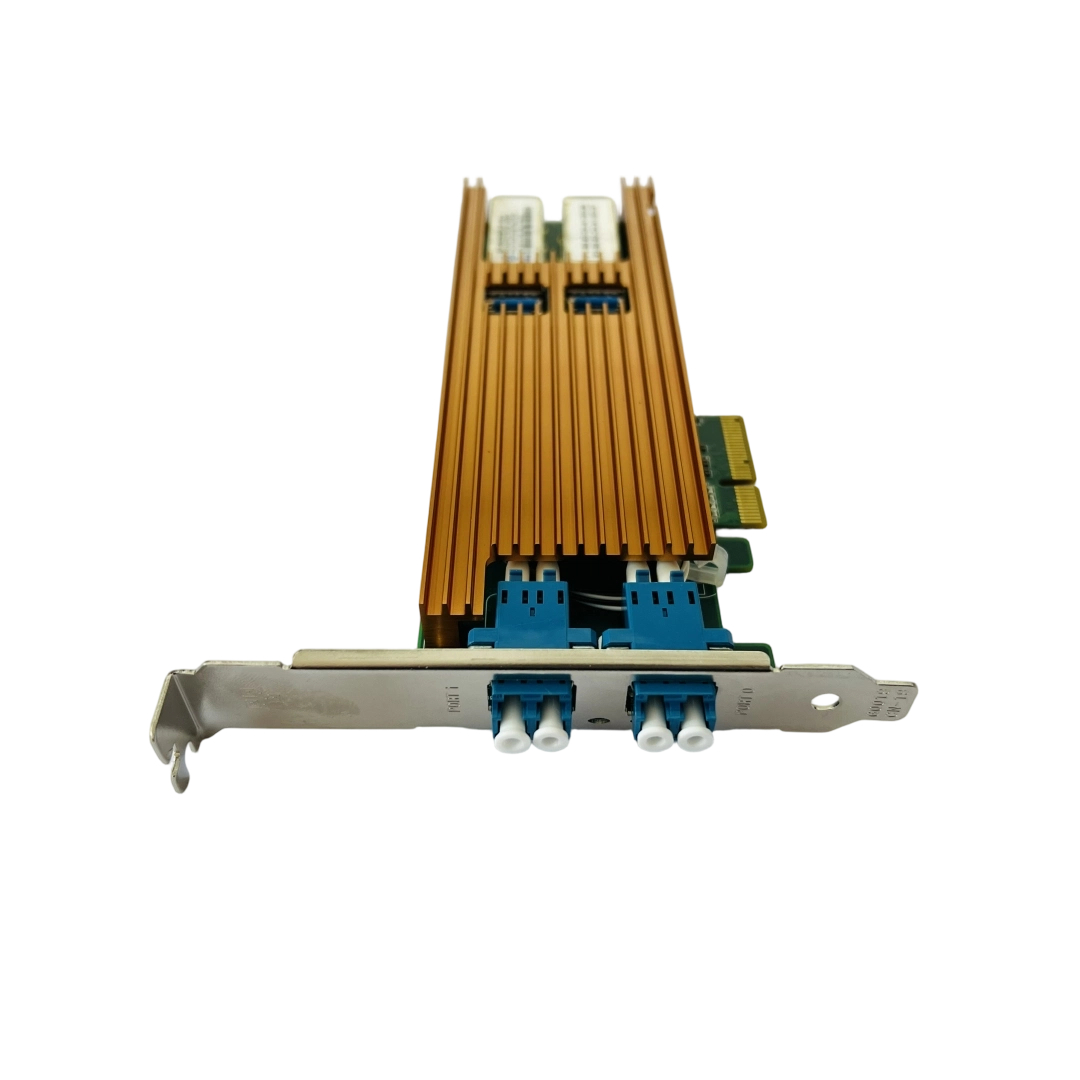

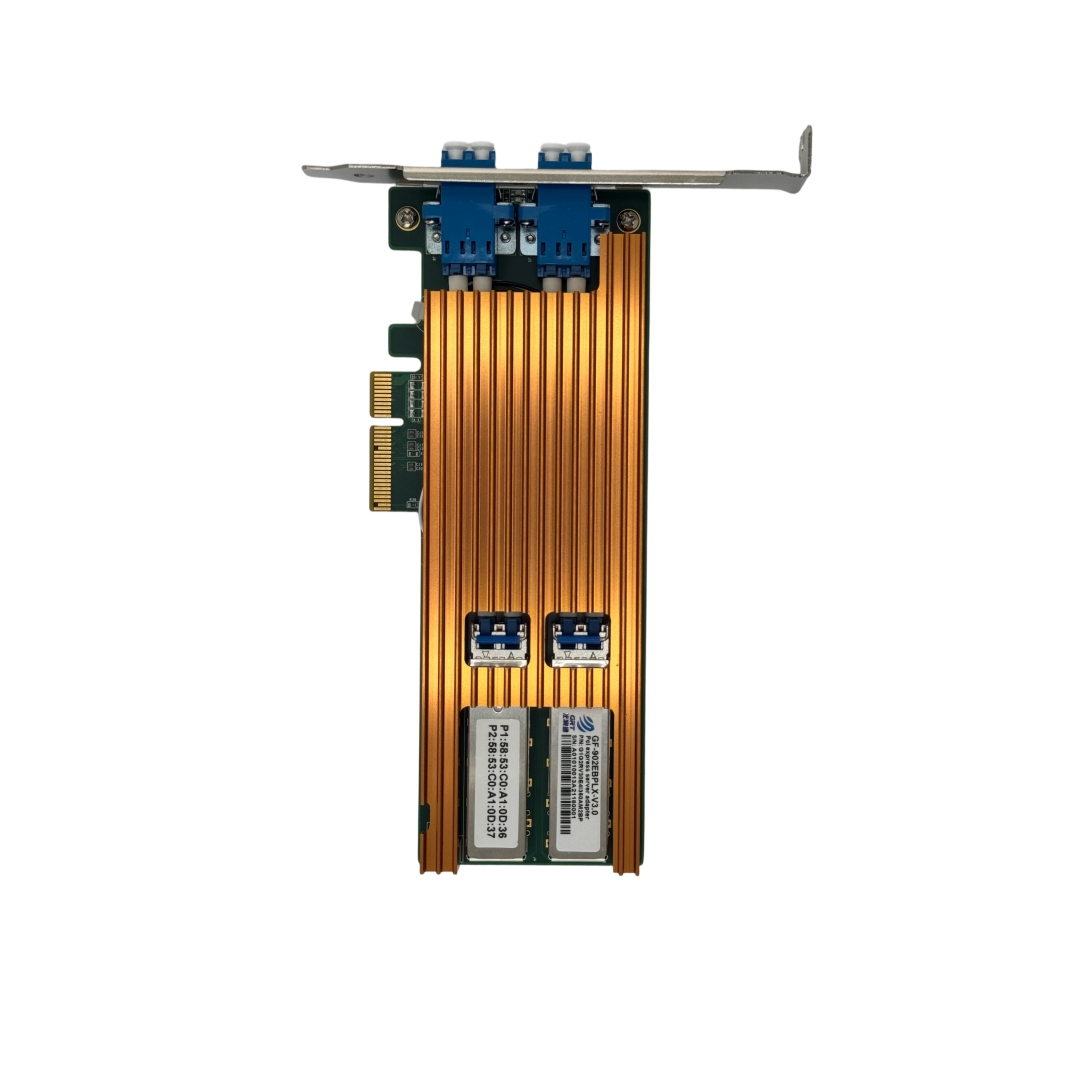

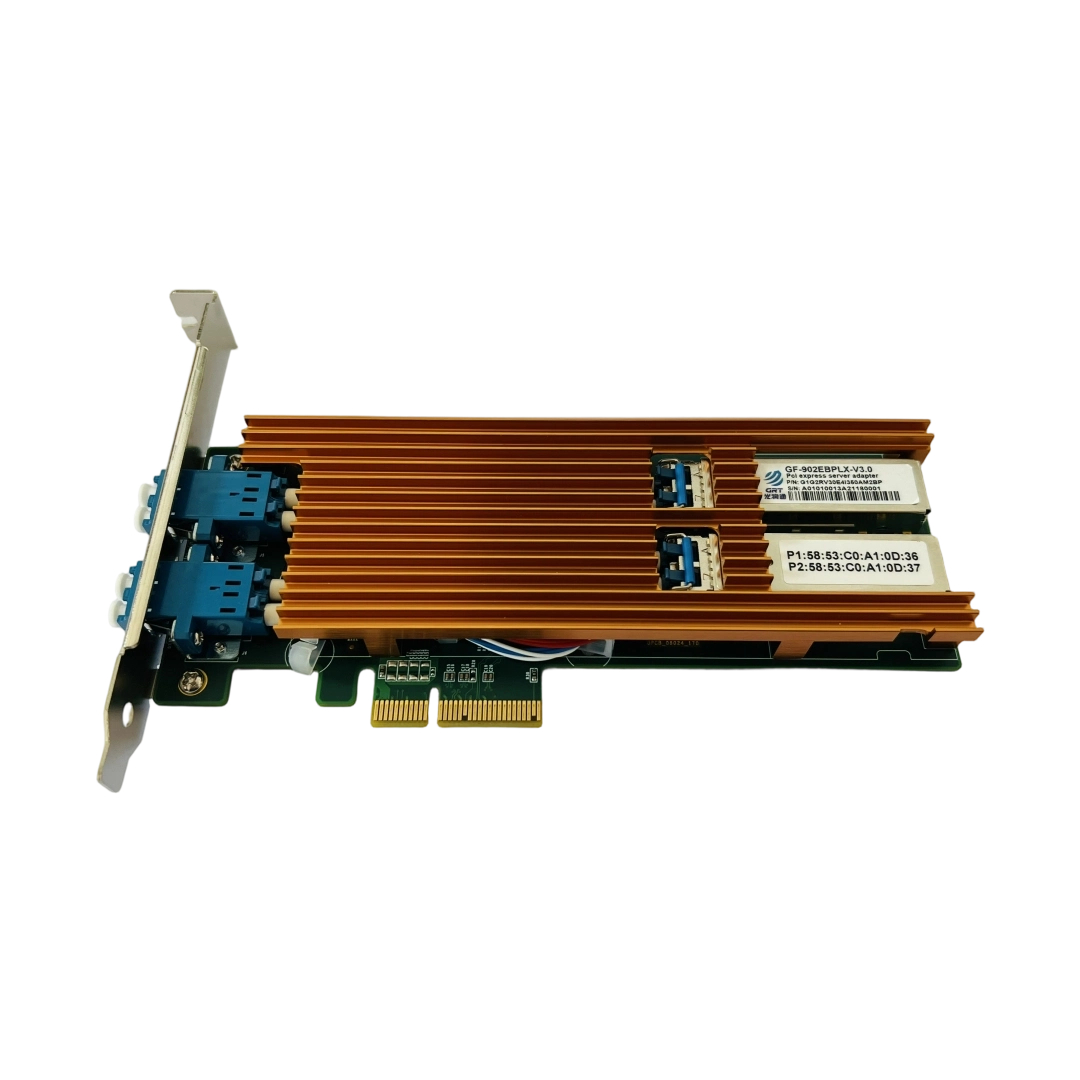

The FF-902EBPLX-V3.0 is a PCI-Express X4 network interface card for the Gigabit Single-mode SFP optical port Bypass Ethernet bypass server adapter produced by Guangrun Tong. The adapter contains two gigabit Ethernet ports with two gigabit 1310nm single-mode optical modules. The FF-902EBPLX-V3.0 adapter is designed for in-line network systems. In the event of a network link failure, it can switch to bypass and continue communication, providing a backup link protection mechanism.
FF-902EBPLX-V3.0 Dual-port Gigabit Ethernet bypass server adapter, supports normal bypass and disconnect mode.In normal (Normal) mode, the port is an independent interface, while in bypass (BYPASS) mode, all packets received from a port are transmitted to the adjacent port, and in disconnect (Disconnect) mode, the adapter simulates a switch/path cable break.
The FF-902EBPLX-V3.0 server adapter can bypass or disconnect its Ethernet ports in the event of a host system failure or power shutdown.Continue working in bypass (Bypass) mode and connect to another port, so in bypass mode, all packets received from one port are sent to the adjacent port, and vice versa.This feature bypasses the faulty system and provides the longest possible uptime for the network. The FF-902EBPLX-V3.0 dual-port Gigabit PCI Bypass server adapter includes an onboard WDT (watchdog timer) controller.The adapter's software driver or software application can write commands to the onboard WDT controller.The adapter's software driver, WDT controller, and bypass circuit provide an interface for controlling and managing the adapter mode.
The Guangrun Tong FF-902EBPLX-V3.0 dual-end Gigabit Ethernet bypass server adapter is based on the Guangrun Tong G350AM2Ⓔ Ethernet controller and has superior product performance.
4、Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application
.
5、Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped
within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
