1G Dual RJ45 Ports Server Bypass Adapter with GRT ® G350AM2
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
The dual-port Gigabit Ethernet adapter provides an RJ45 interface connection
Flexible I/O virtualization technology provides up to 16 virtual channels for port differentiation and quality of service (QoS)
The software is programmable and has network card mode, bypass mode and disconnect mode
The system feeds the dog with automatic bypass mode and link switching characteristics when the power is cut off
High performance host interface design PCI Express 2.1
Pure domestic design, independent control

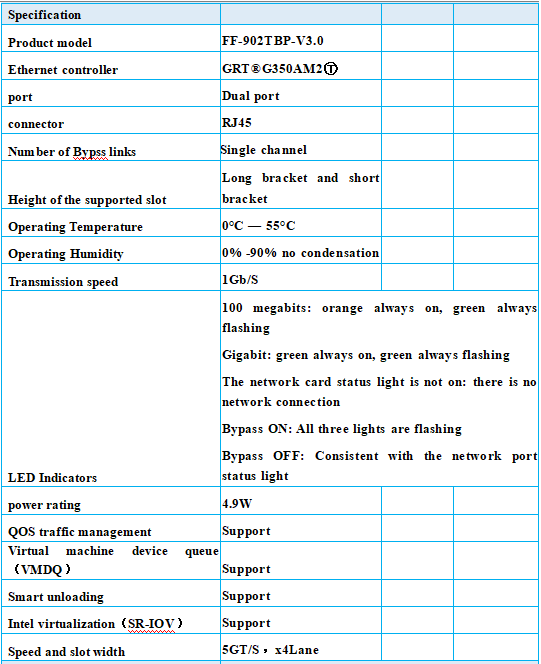

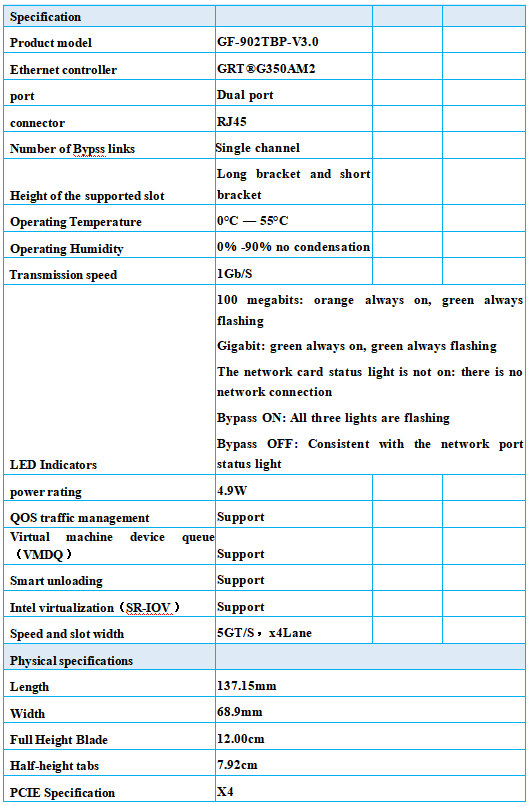

Key attributes
Model Number:FF-902TBP-V3.0
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:1GbE SFP network card
Ethernet controller:GRT®G350AM2Ⓣ
Host height supportable:2U or 1U
Hot pluggable:yes
Application:Servers, GAP, Firewall, storage device,etc.
Product Description

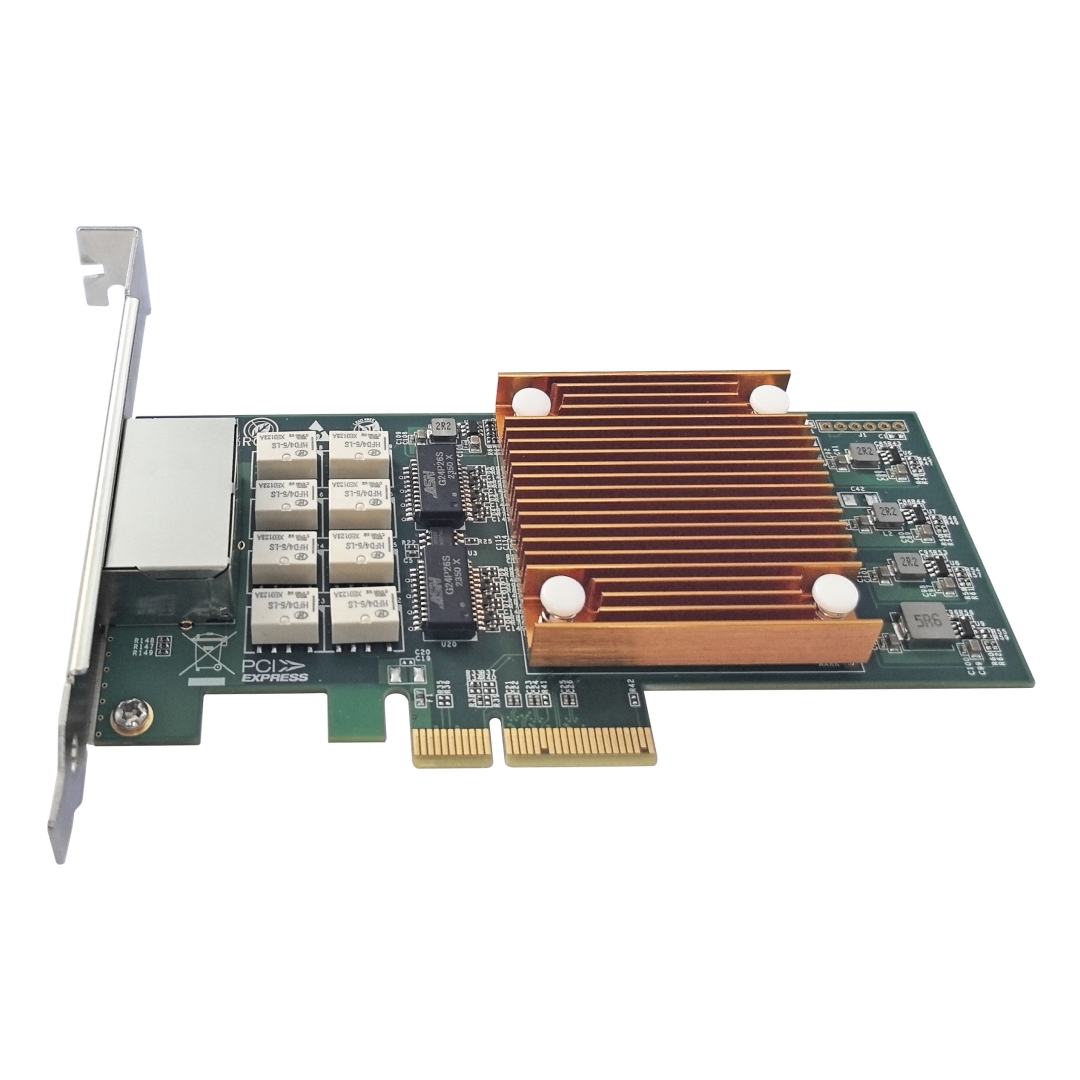

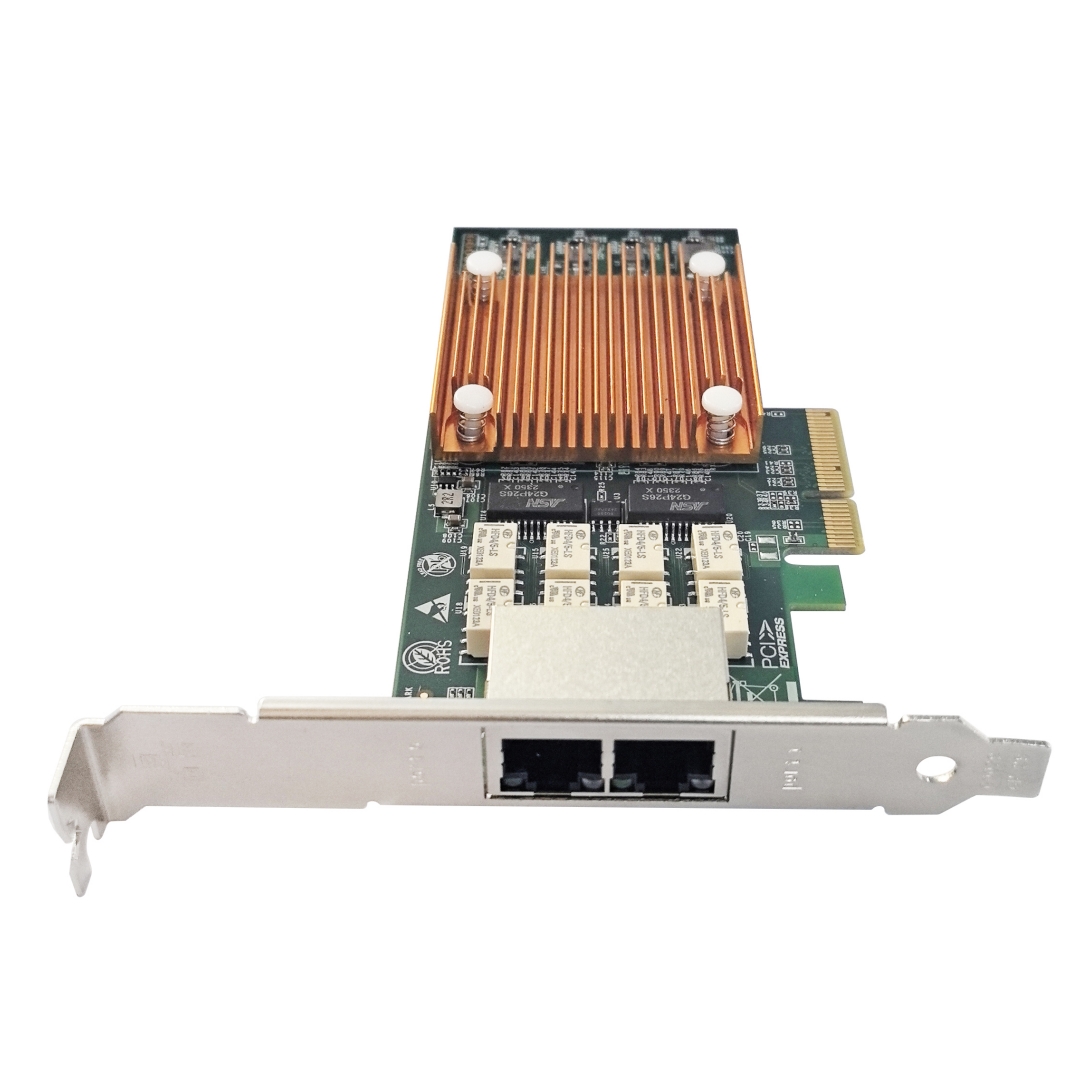

The Gigabit RJ45 port Bypass Ethernet bypass server adapter produced by Guangrun Tong, the FF-902TBP-V3.0, is a PCI-Express X4 network interface card that includes two Gigabit Ethernet ports. The adapter is designed for Intranet systems and can switch links when network issues occur, facilitating maintenance of network connections.
FF-902TBP-V3.0 Dual-Port Gigabit Ethernet Bypass Server Adapter supports normal mode, bypass mode, and disconnect mode. In normal (Normal) mode, the ports are independent interfaces. In bypass (BYPASS) mode, all packets received from one port are transmitted to the adjacent port. In disconnect (Disconnect) mode, the adapter simulates a switch/cable break.FF-902TBP-V3.0
The server adapter can bypass or disconnect its Ethernet port when the host system fails or the power is turned off. In bypass (Bypass) mode, the connection to the Ethernet port is disconnected from the system and switched to another port, creating a cross-connect loop between Ethernet ports. Therefore, in bypass mode, all packets received from one port are sent to the adjacent port, and vice versa. This feature bypasses the faulty system and provides the longest possible uptime for the network. The dual-port Gigabit PCI Bypass server adapter includes an onboard WDT (Watchdog Timer) controller. The adapter's software driver or application can write commands to the onboard WDT controller. The adapter's software driver, WDT controller, and bypass link provide an interface for controlling and managing the adapter mode.
The Guangrun Tong FF-902TBP-V3.0 dual-end Gigabit Ethernet bypass server adapter is based on the Guangrun Tong G350AM2Ⓣ Ethernet controller and has superior product performance.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
