Product features
Quad-port 25G Ethernet adapter provides SFP28 module connectivity
Design has excellent performance in the multi-processor system, and be applied to meet the needs of virtualization and big data computing
Temperature information of the network card can be read under the instruction system
High bandwidth,ultra-low latency Ethernet networks enable high-speed transmission of cluster networks, LAN networks, and SAN networks to meet the requirements of high-performance computing
High-performance host interface design PCI Express 4.0(16GT/s)
Support for giant frame 12K
Compatible with various types of systems and equipment both domestically and internationally, independently controllable

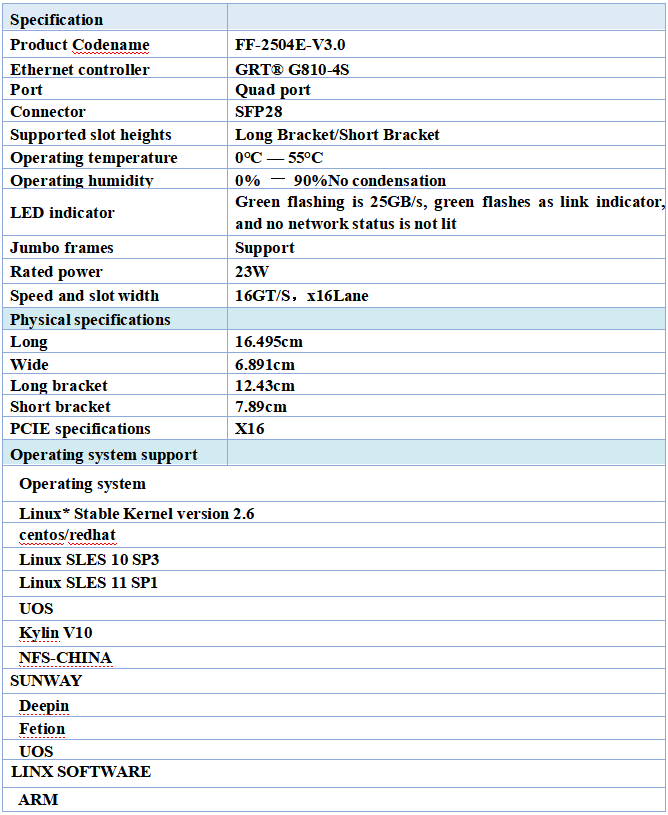

Key attributes
Model Number:FF-2504E-V3.0
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:25GbE SFP28 network card
Ethernet controller:GRT® G810-4S
Host height supportable:2U or 1U
Hot pluggable:yes
Application:Servers, GAP, Firewall, storage device,etc.
Bus type:PCI Express 4.0*1(16.0GT/s)
Product Description
GRT 25G Ethernet PCI Express server adapter FF-2504E-V3.0 is a PCI Express X16 Quad-port 25 G Ethernet adapter based on GRT G810-4S chip solution, MAC + PHY (media access controller and physical interface transceiver), compatible with PCIe X16 channels. The server adapter meets the needs of the next generation of data centers by providing unparalleled features for server and network virtualization. Provides reliable performance in flexible LAN and SAN networks.
PCI Express V4.0 X16 slot has a flexible quad-port 25 Gb link rate, which is convenient to use in the operational environment with multiple network deployment requirements. The adapter is mainly designed for high-end devices such as server, firewall and storage, and the performance has been optimized, so that the system I / O is no longer the bottleneck of high-end network applications.
This adapter can be bundled into multiple ports at the same time to achieve fault tolerance and redundancy to ensure network performance and expand network bandwidth. When stateless unloading, the adapter can also be distributed to the CPU kernel on the network traffic, which improves the throughput of the network.
The adapter can deployed on multiple networks and on high-performance servers, is an ideal solution for deploying critical network applications and environments.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
