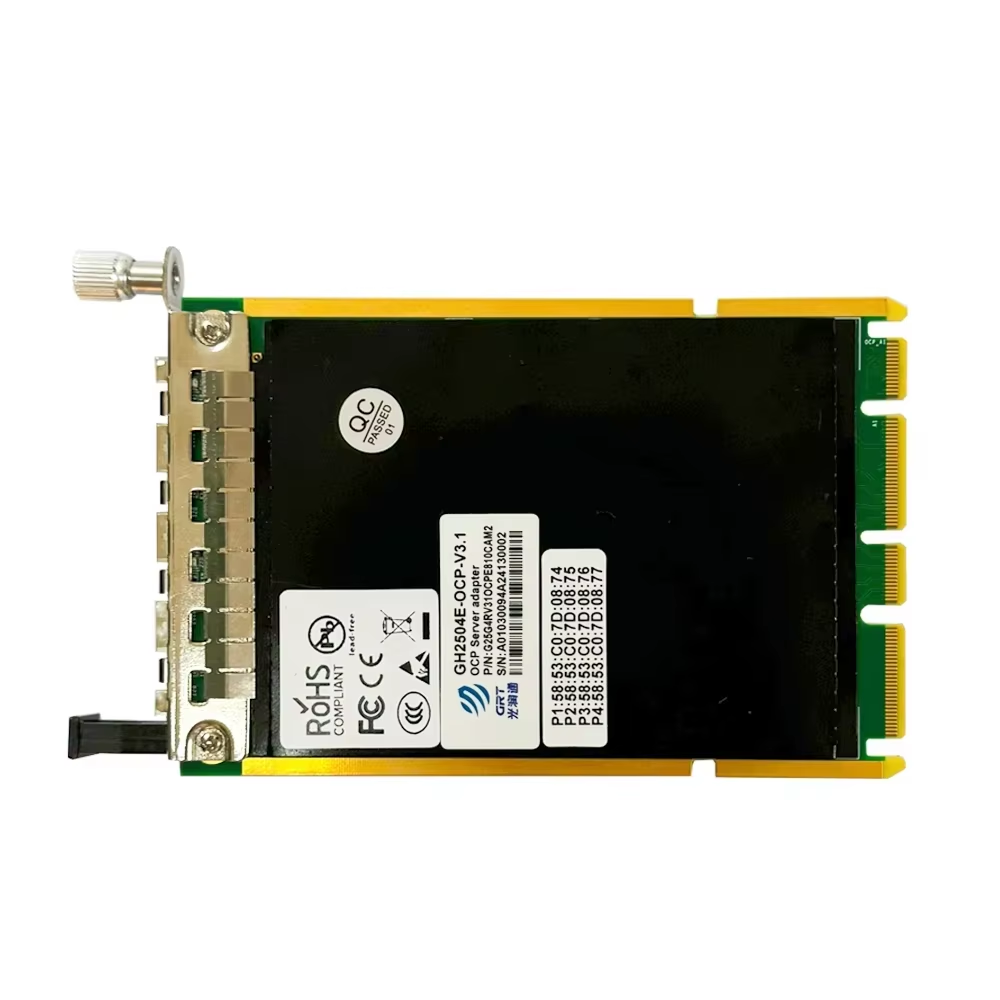

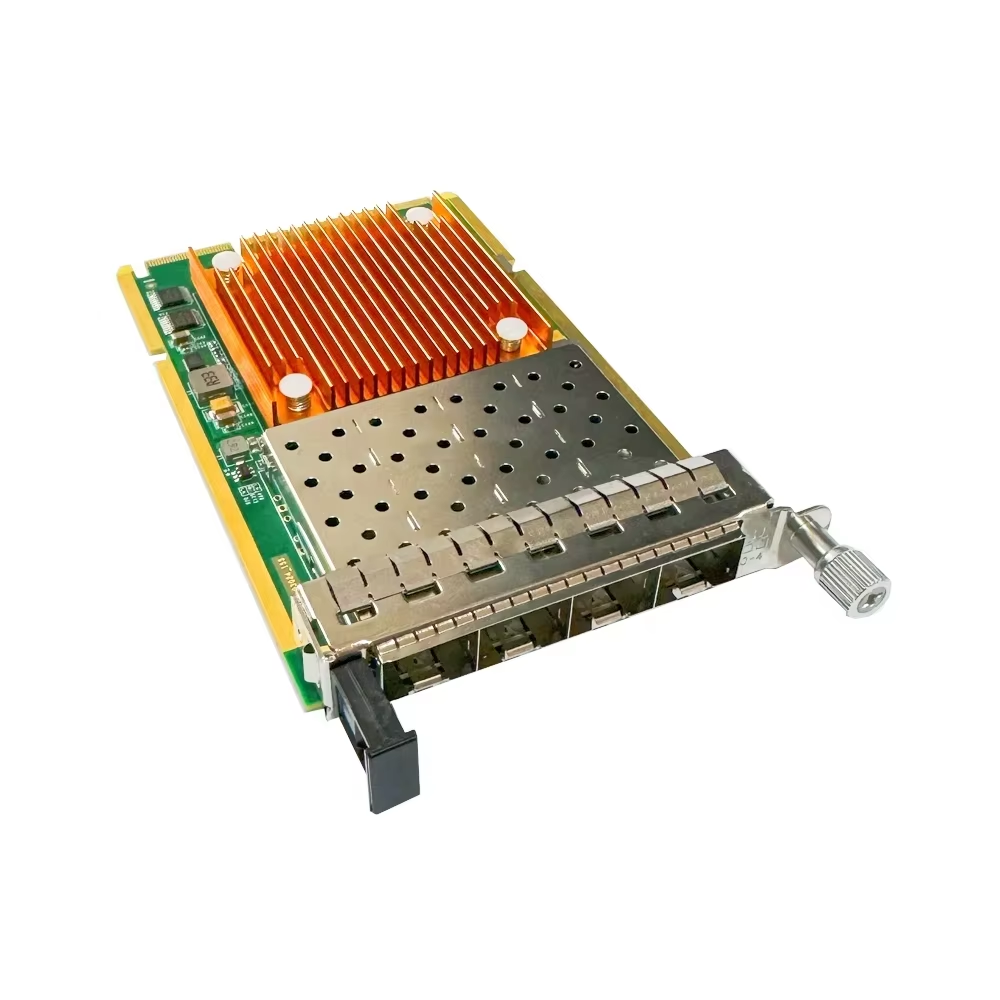

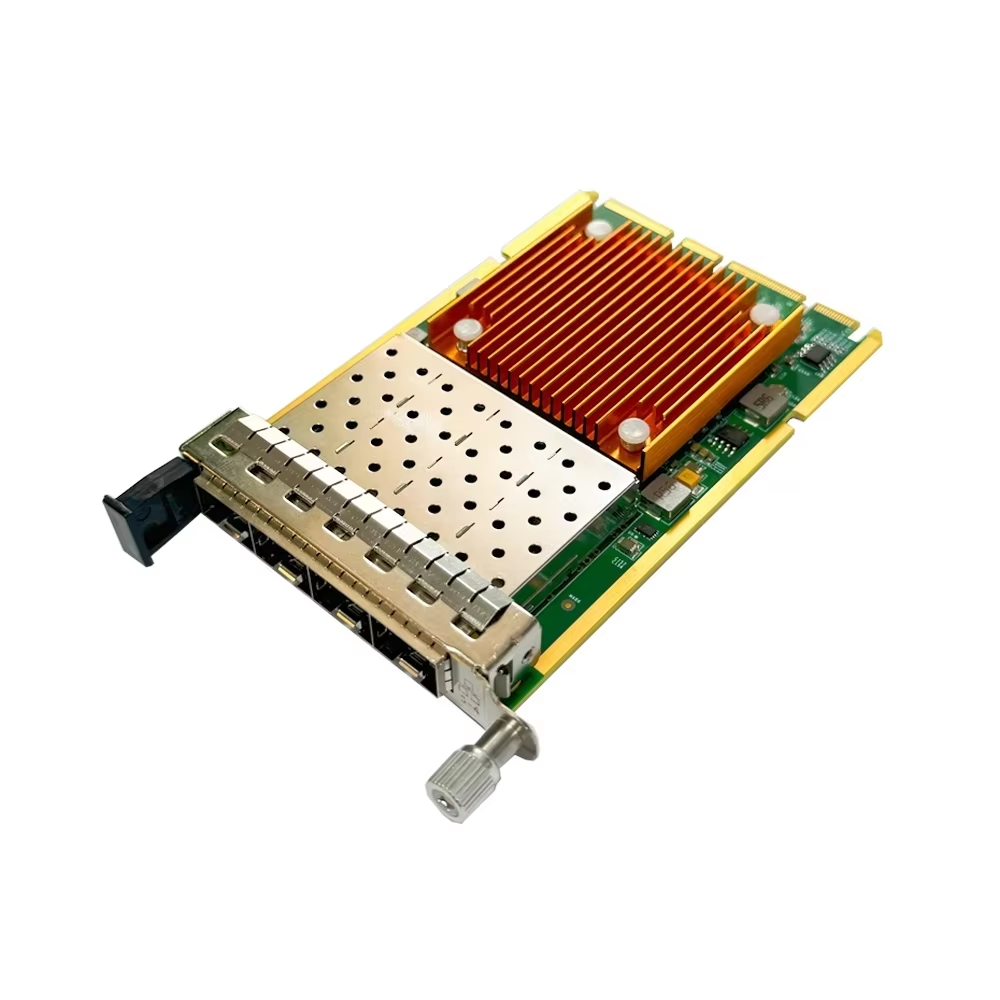

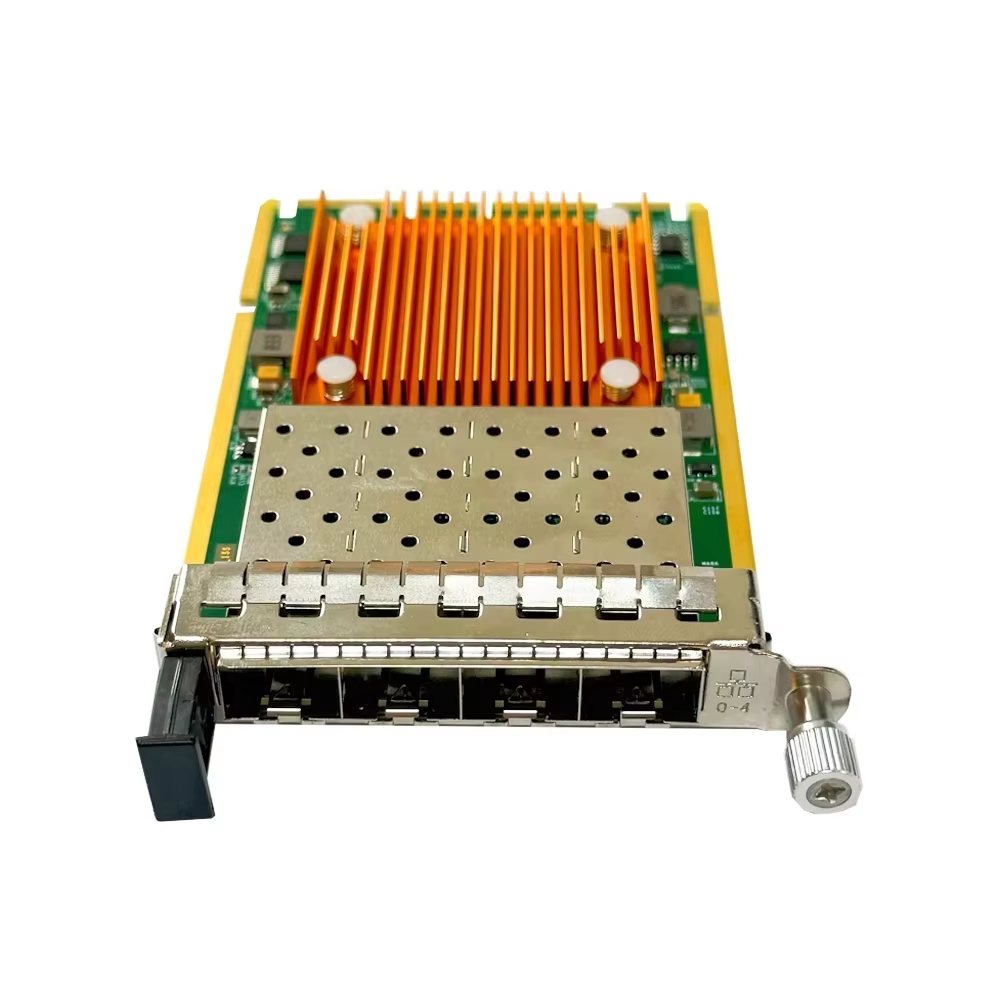

25G quad fiber port OCP 3.1 Mezzanine Network Interface Card With Intel E810-CAM2 chip
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product feature
Quad-Port 25G Ethernet Adapter Provides SFP28 Module Connectivity
It is designed to provide excellent performance in multiprocessor systems for
applications such as virtualisation and big data computing.
When used with Microsoft's Receiver Expansion or Scalable I/O in Linux, the
card effectively balances the network load across multiple central processing
units (CPUs).
Expandable iscsi provides cost-effective performance support for SAN
connectivity
Support for Intel® PRO Smart Installation, as well as for Microsoft Device
Intel® PRO Smart Install, and the new Intel® PRO Set for Microsoft Device
Manager, simplifying installation and management.
Simplifies the installation and management process by allowing simple clicks
to configure and
Manage all Intel® PRO network connections with a few simple clicks to
configure your connectivity needs.
High performance host interface design PCI Express 4.0 (16GT/s)
Hot-swappable support
RDMA support

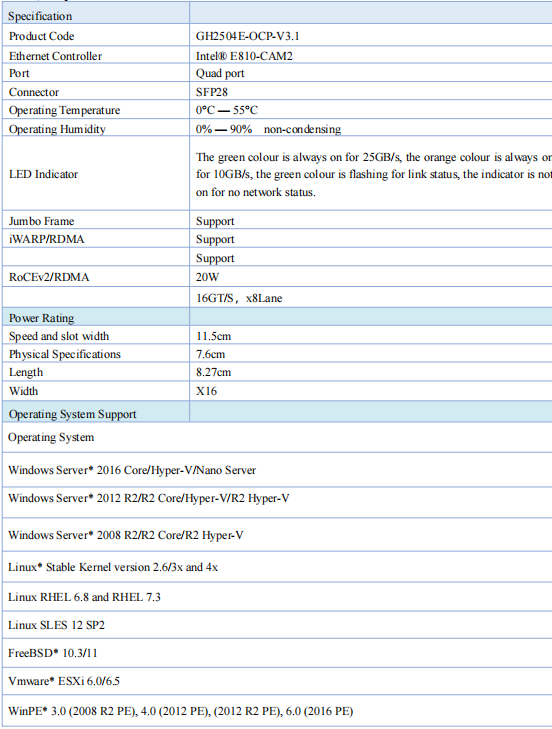

Key attributes
Model Number: GH2504E-OCP-V3.1
Brand Name: GRT
Warranty Time: 3 years
Certification:FCC, RoHS, CE
Data rate: 25 GbE
Ethernet controller: Intel®E810-CAM2
Application:Servers, GAP, Firewall, storage device,etc.
Product description
The 25G Quad Optical Ethernet OCP Mezzanine Card GH2504E-OCP-V3.1 is based on
the Intel E810-CAM2 Ethernet controller with fully integrated 25G Ethernet Media Access
Control (MAC) and SFI interfaces. In addition to managing MAC and PHY Ethernet layer functions, the controller also manages PCI Express packet traffic at its transaction, link and physical/logical layers. Using hardware acceleration, the controller offloads tasks such as TCP/UDP/IP checksum calculations and TCP segmentation from the host.
The Brighton 25G Ethernet OCP Mezzanine Card is the ideal solution for implementing multiple network segments in high-performance OCP servers for mission-critical high-performance network applications and environments.
Host Interface:
- Supports OCP Mezzanine Card 3.0 design specification
- Supports connectors mounted on mezzanine cards
- PCI Express Gen 4.0 X16 lanes
Dimensional profile.
Open Compute Project Mezzanine Card, Type 3
25G 10 Gigabit Ethernet Adapter.
--LRD: Fibre-optic 25G Ethernet Base-LX LAN and virtualisation capabilities:
- VXLAN and NVGRE network virtualisation offloading
- Unified Networking provides a single line for LAN and storage: NAS (SMB, NFS) andhttps://www.grt.ink
SAN (iSCSI, FCoE)
- Virtual Bridging Support - VEPA / 802.1Qbg, BPE / 802.1Qbh
- Virtualisation supports 64 virtual ports per port
- Virtualisation - Relieves hypervisor I/O bottlenecks by providing stream separation for virtual machines (VMs)
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped
within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
