1G Dual Fiber Ports Single mode Server Bypass Adapter with Intel ® I350AM2
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
Dual port Gigabit Ethernet adapter provides SFP interface connection
Innovative power management features and Energy EfficientEthernet (EEE), integrated direct memory improves efficiency and reduces power consumption
Flexible I/O virtualization technology provides up to 16 virtual channels for port differentiation and quality of service (QoS)Scalable iscsi provides cost-effective SAN connectivity
High-performance host interface design PCI Express 2.1
Reliable solution proves server adapter performance
Key attributes
Model Number:GH902EBP-V3.0
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:1GbE SFP network card
Ethernet controller:Intel®I350AM2
Host height supportable:2U or 1U
Hot pluggable:yes
Application:Servers, GAP, Firewall, storage device,etc.
Bus type:PCI Express 2.1*1(5.0GT/s)
Product Description

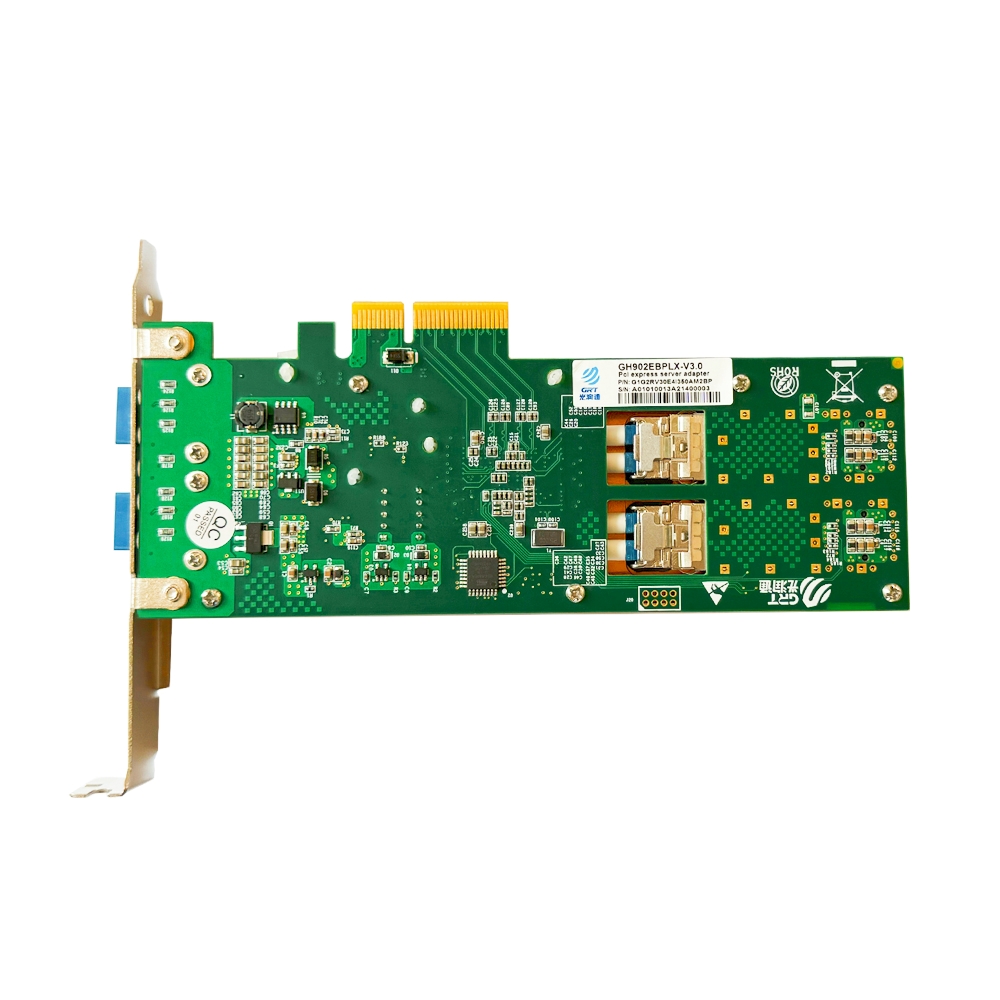

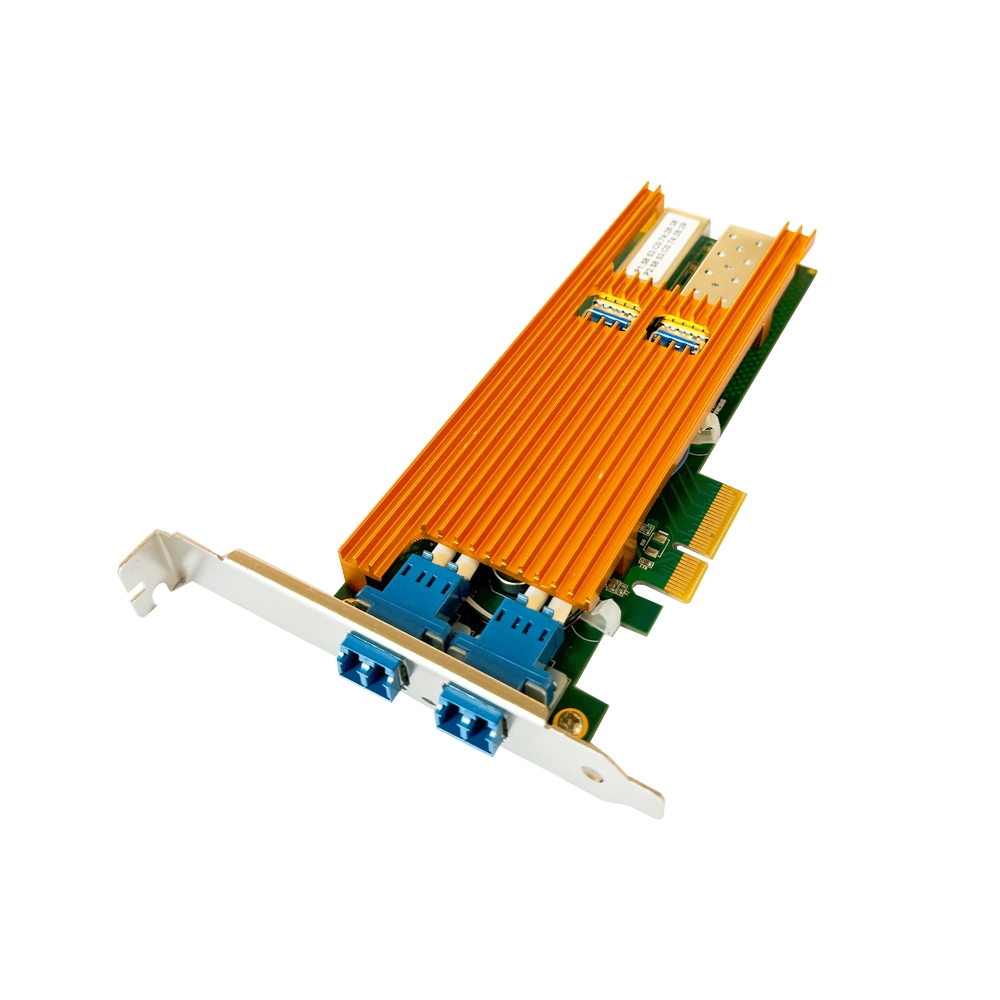

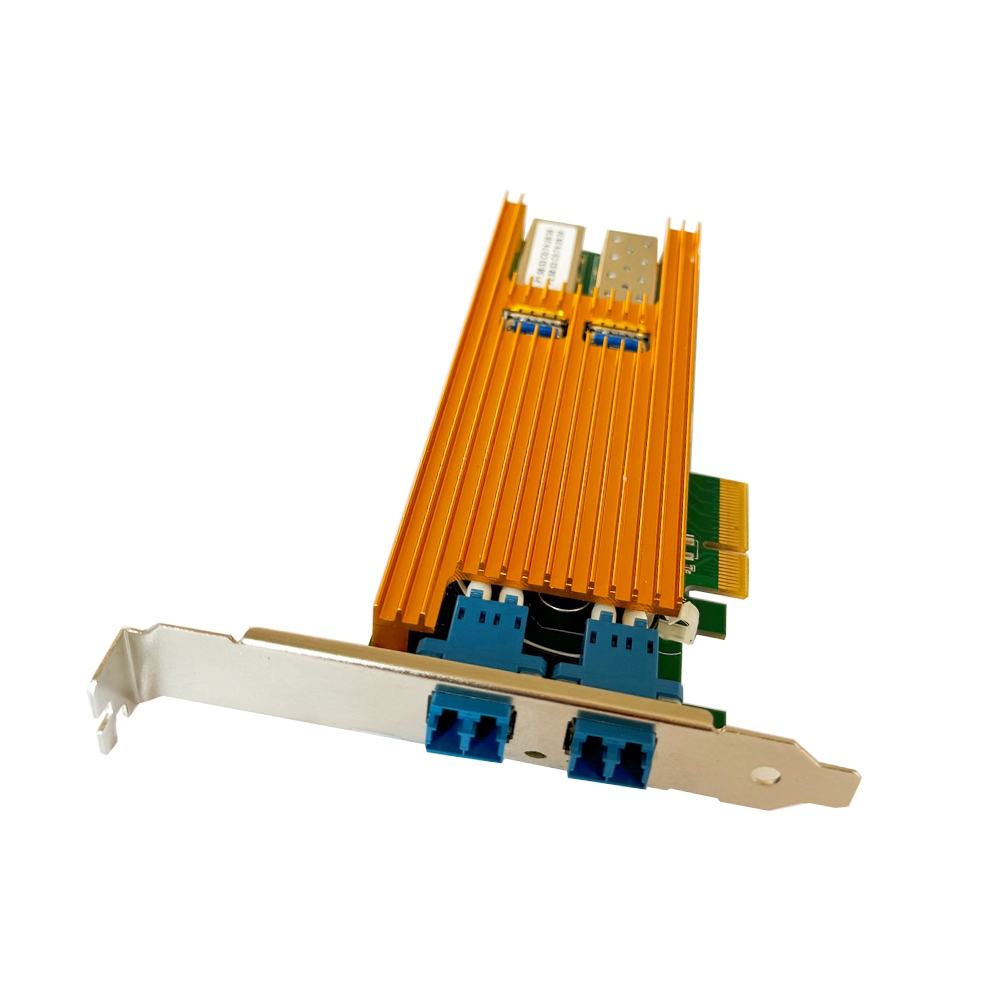

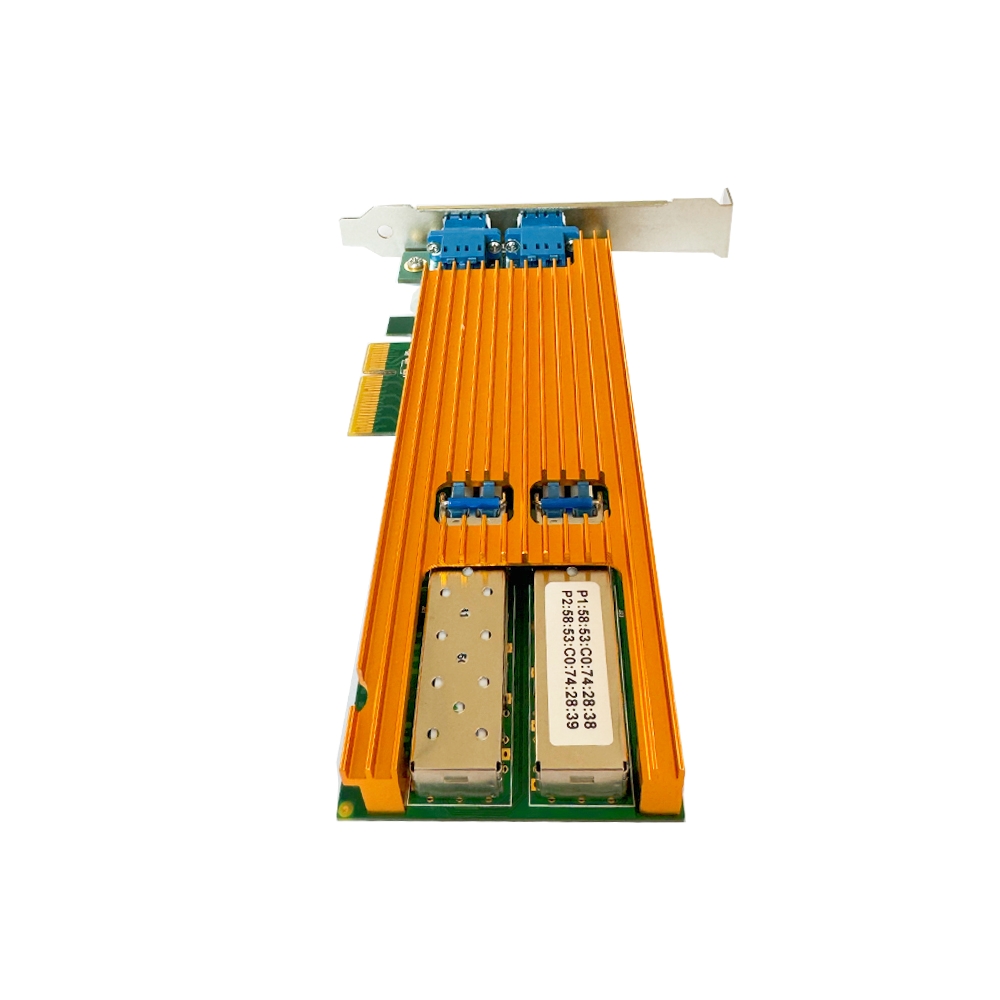

The Gigabit single channel dual ports fiber Bypass Ethernet bypass server adapter produced by Guangruntong, GH902EBP-V3.0 is a PCI-Express X4 network interface card, and the adapter contains two Gigabit Ethernet ports. The GH902EBP-V3.0 adapter is oriented to the inline network system, which can facilitate the maintenance of the network connection when the network fails.
GH902EBP-V3.0 Dual Ports Gigabit Ethernet Bypass Server Adapter, supports normal bypass and disconnect mode. In Normal mode, the ports are independent interfaces, while in BYPASS mode, all packets received from one port will be transmitted to the adjacent port, in Disconnect mode, Adapter analog switch/path cable disconnected.
The GH902EBP-V3.0 server adapter can bypass or disconnect its Ethernet port when the host system fails, power is turned off. In Bypass mode, the connection to the Ethernet port is disconnected from the system and switched to another port to create a cross-connect loopback between the Ethernet ports. Therefore, in bypass mode, all packets received from one port are sent to the adjacent port and vice versa. This feature can bypass a failed system and give the network maximum uptime. GH902EBP-V3.0 Dual-Port Gigabit PCI Bypass Server Adapter, includes an onboard WDT (Watchdog Timer) controller. The adapter's software driver or software application can write commands to the onboard WDT controller. The adapter's software driver, WDT controller and bypass circuit provide an interface to control and manage the adapter mode.
GH902EBP-V3.0 is a Dual-ended Gigabit Ethernet bypass server adapter based on Intel I350AM2 Ethernet controller with superior product performance.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
