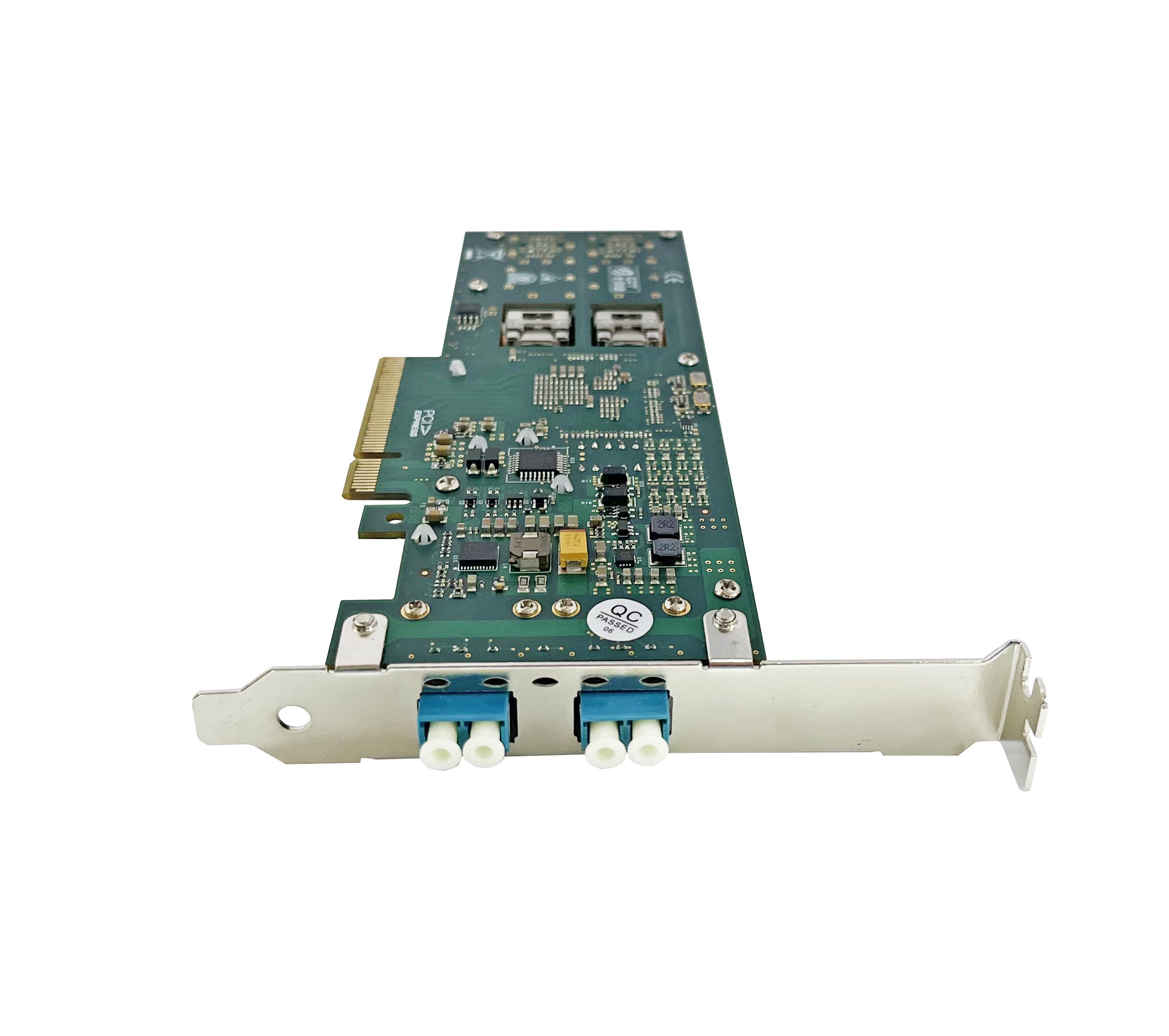

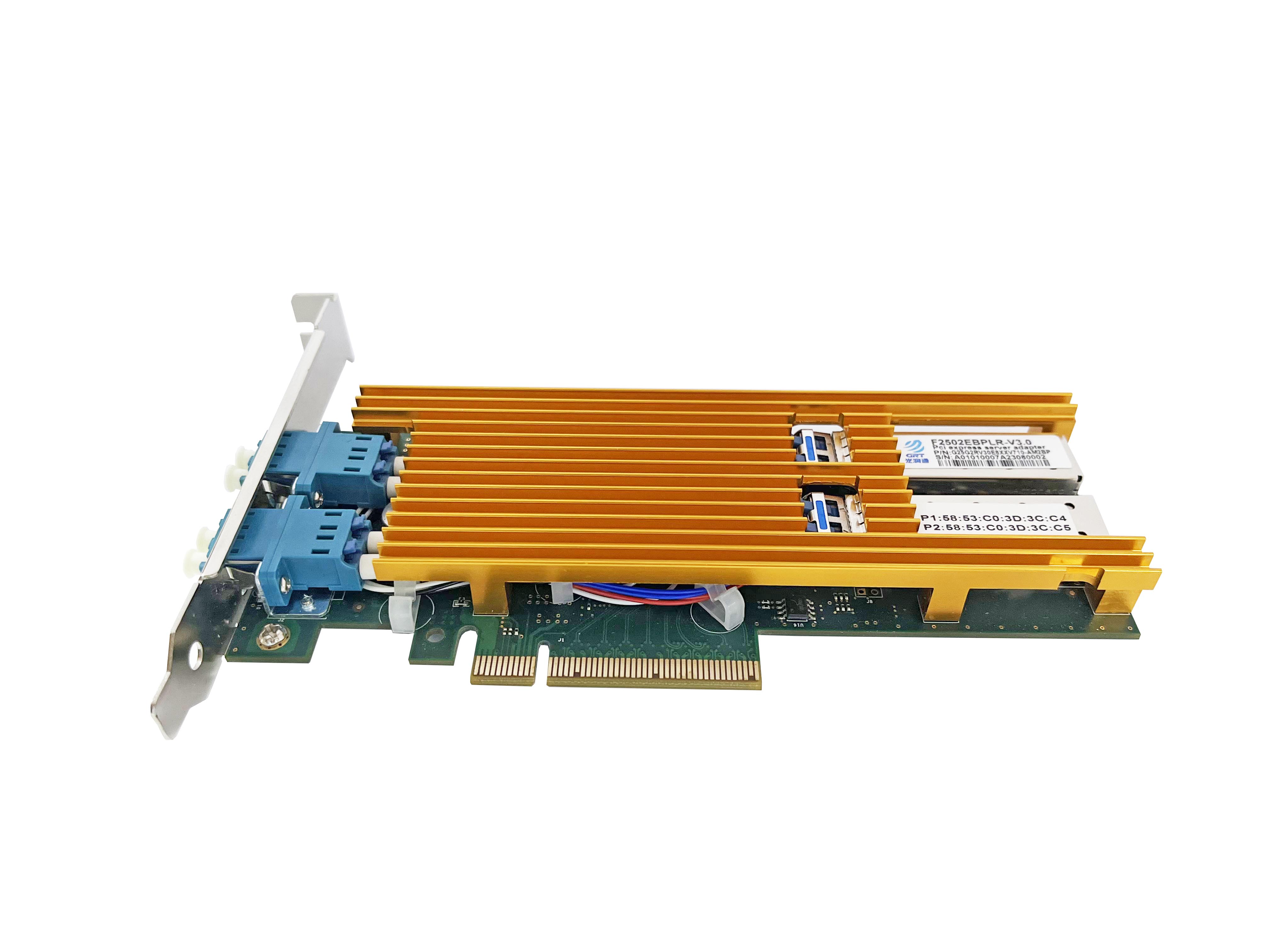

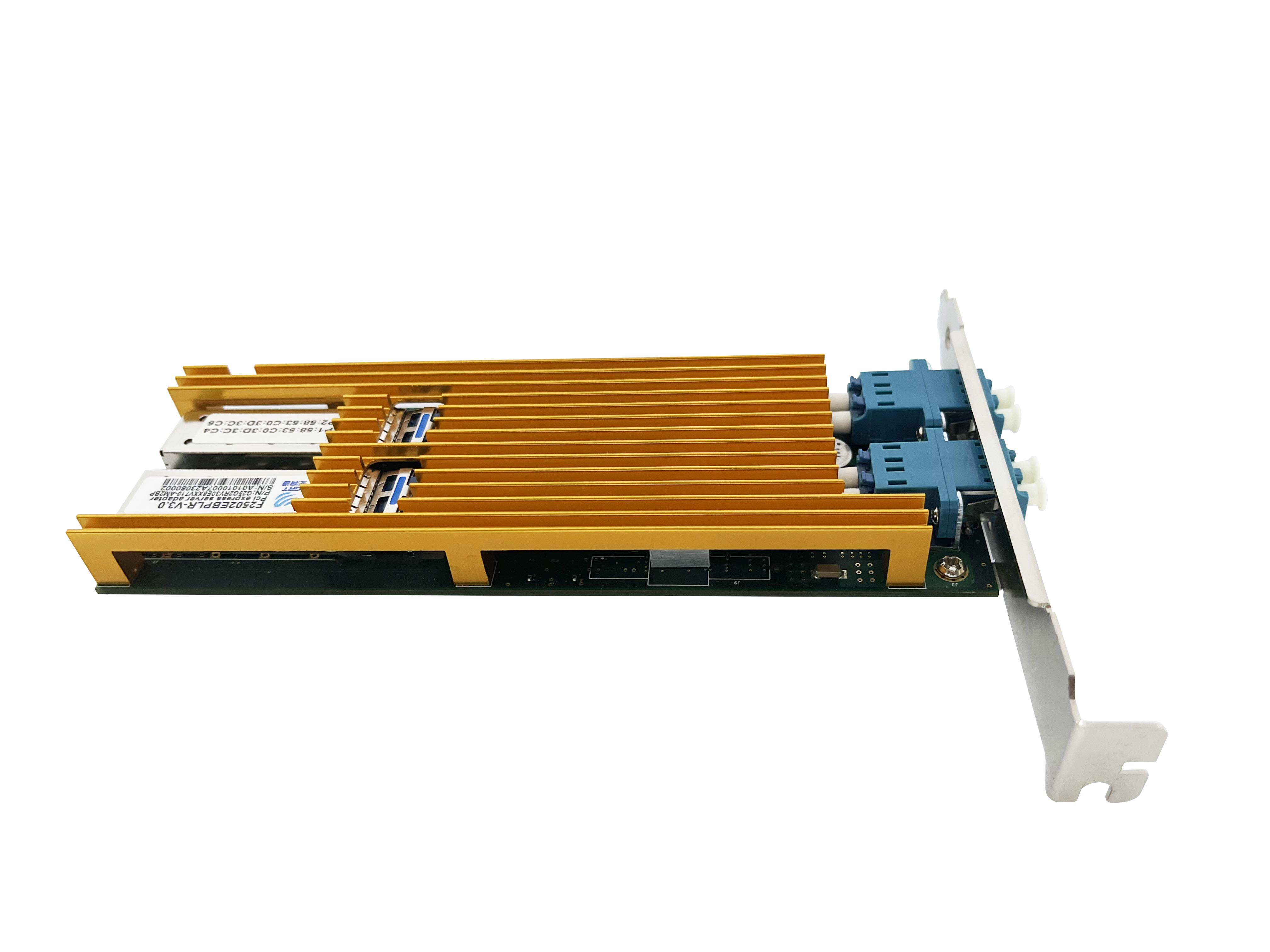

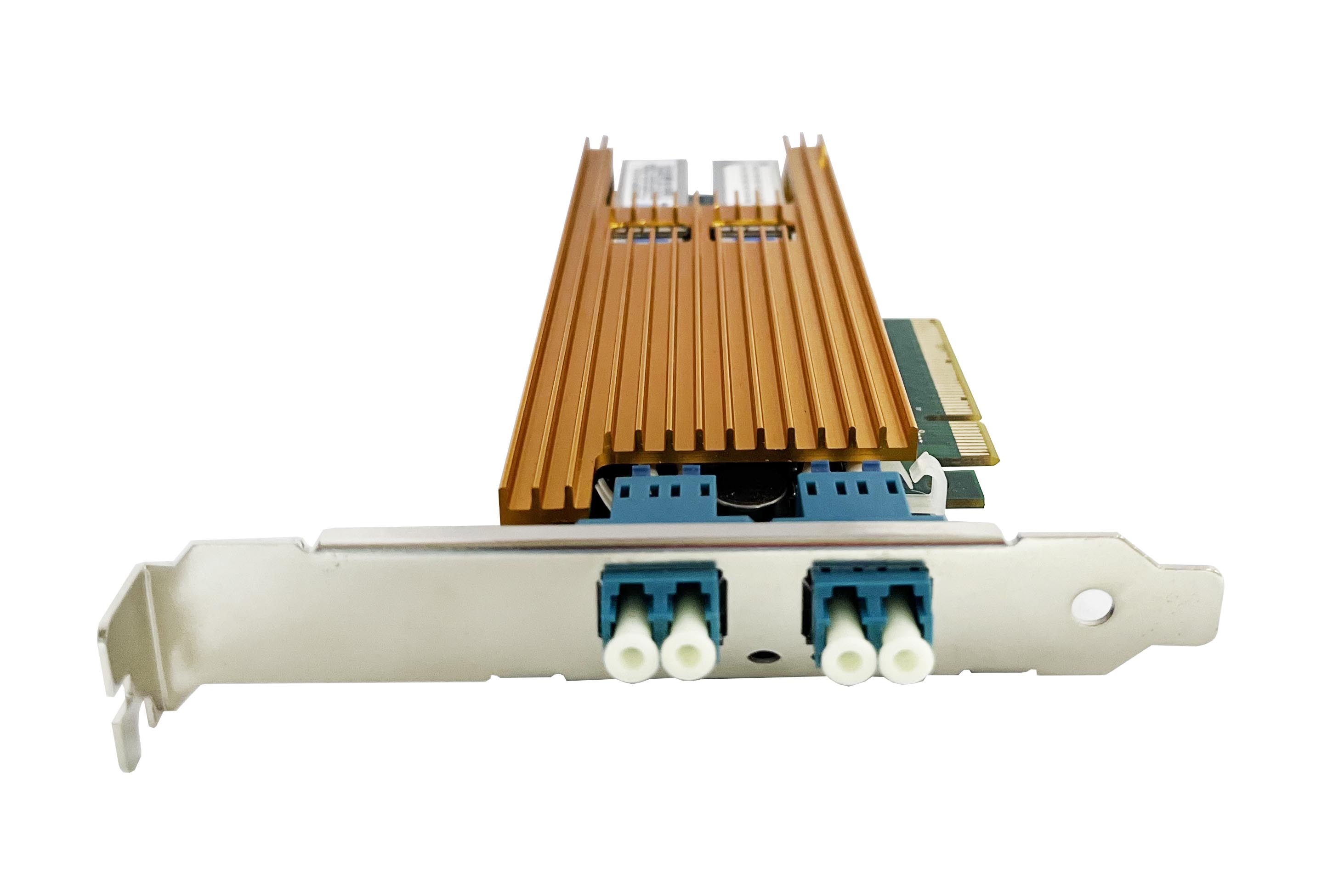

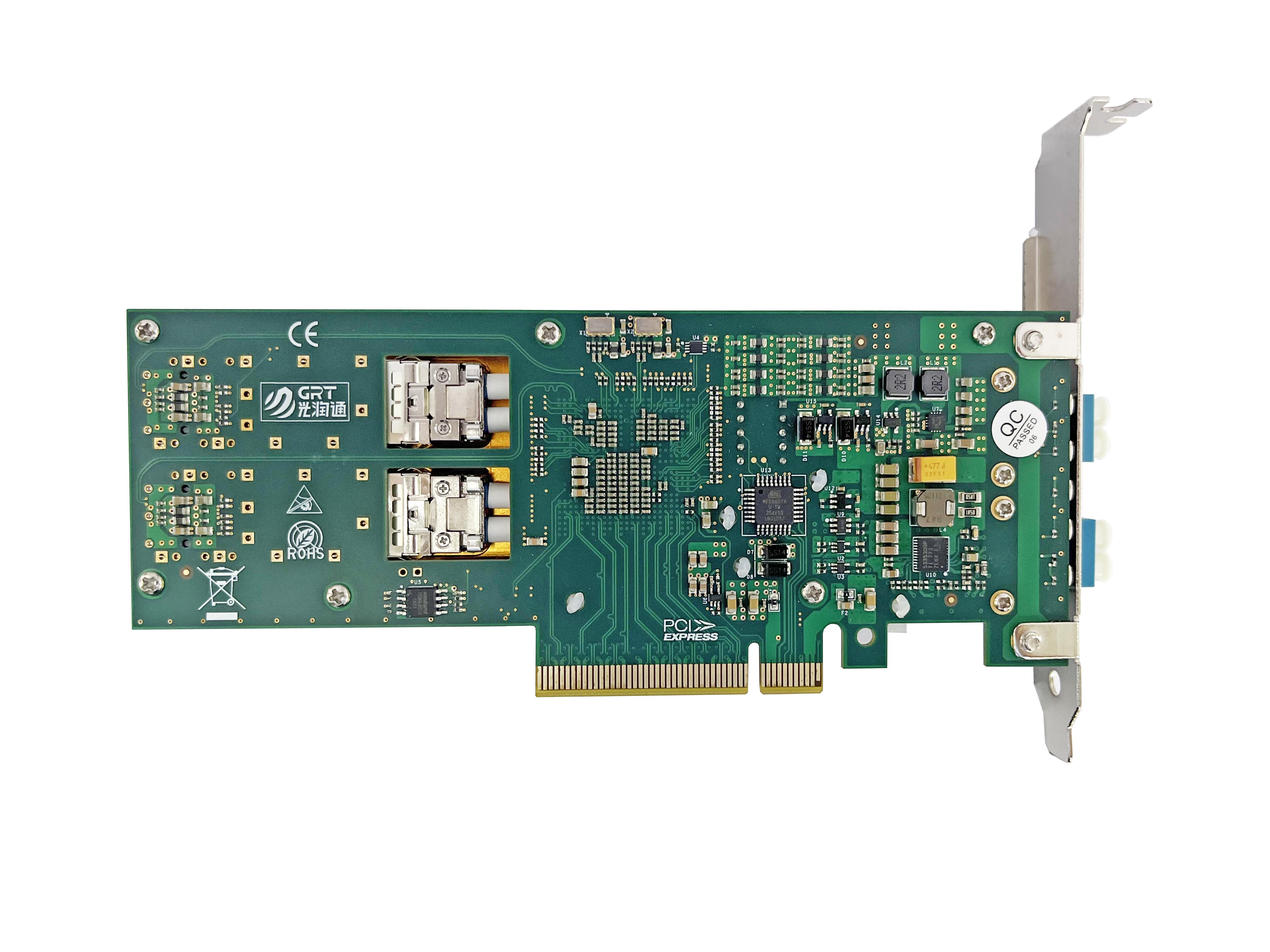

Dual Port Fiber 25 Gigabit Ethernet PCI Express Bypass Server Adapter with Intel XXV710 chip including LR module
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
Supports jumbo frames up to 9.5KB
Support flow control (Flow Control)
Priority flow control (IEEE 802.1Qbb)
Enhanced Transmission Selection (IEEE802.1az)
Statistics Management and RMON
1q VLAN support
DCB/DCB-X support
Message Signaled Interrupt (MSI-X)
Storage - Smart Offload Solution via Native OS(including NAS, iSCSI and FCoE) for competitive performance

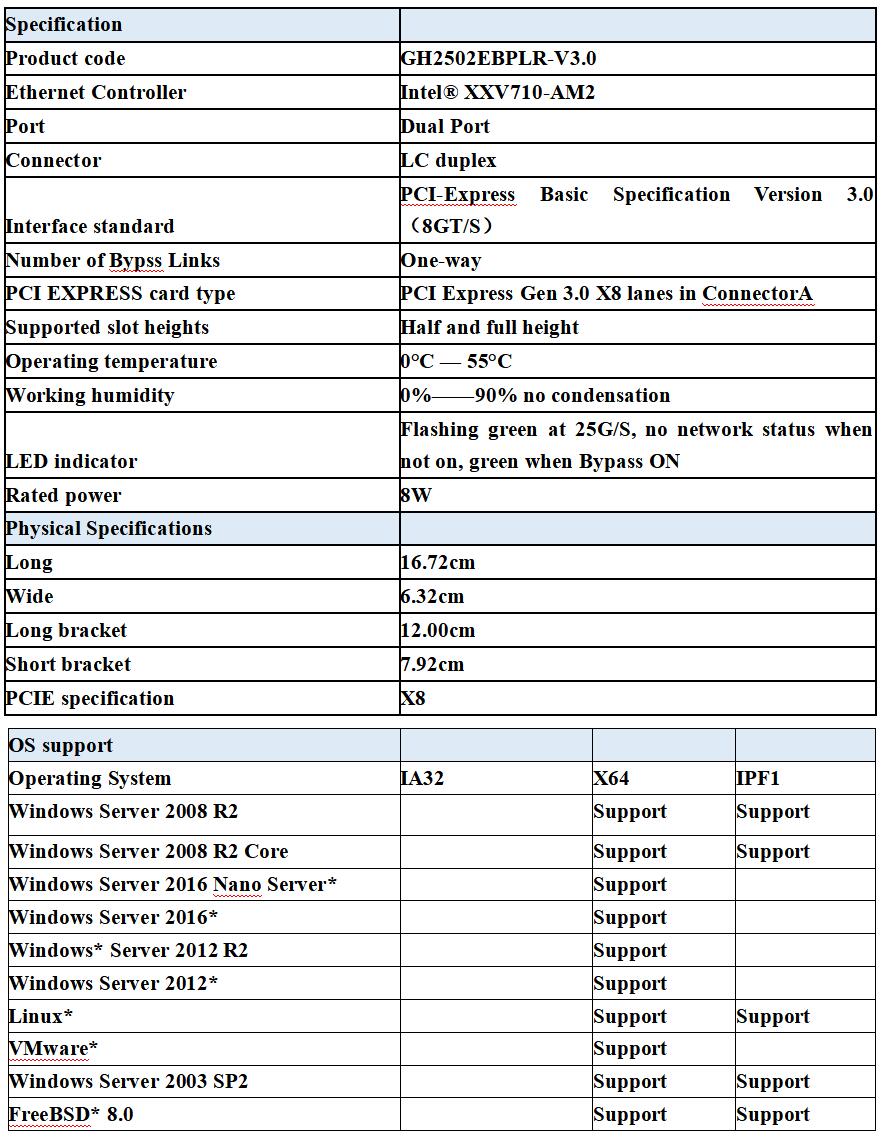

Key attributes
Model Number:GH2502EBPLR-V3.0
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:25GbE
Ethernet controller:Intel XXV710-AM2
Application:Servers, GAP, Firewall, storage device,etc
Product description
The single-channel dual-port optical fiber 25G Gigabit Bypass Ethernet bypass server adapter GH2502EBP produced by GRT is a PCI-Express X8 network interface card, which contains two optical fiber (SR, LR) 10 Gigabit Ethernet ports on the PCI-E adapter . The GH1002E-BP adapter is designed for inline network systems and maintains network connectivity in the event of a system failure.
The GH2502EBP Dual Port Fiber 25 Gigabit Ethernet Bypass Server Adapter supports normal bypass and disconnect modes. In Normal mode, the ports are independent interfaces, while in BYPASS mode, all packets received from one port will be transmitted to the adjacent port, in Disconnect mode, Adapter analog switch/path cable disconnected.
The GH2502EBP server adapter can bypass or disconnect its Ethernet port in the event of a host system failure, power down, or software request. In Bypass mode, the connection to the Ethernet port is disconnected from the system and switched to another port to create a cross-connect loopback between the Ethernet ports. Therefore, in bypass mode, all packets received from one port are sent to the adjacent port and vice versa. This feature can bypass a failed system and give the network maximum uptime. The GH2502EBP Dual Port Fiber Optic 25G PCIE Bypass Server Adapter includes an onboard WDT (Watchdog Timer) controller. The adapter's software driver or software application can write commands to the onboard WDT controller. The adapter's software driver, WDT controller and bypass circuit provide an interface to control and manage the adapter mode.
GRT GH2502EBP's dual-port fiber 10 Gigabit Ethernet bypass server adapter is based on Intel XXV710-AM2 Ethernet controller and has superior product performance.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
