1G Quad RJ45 ports Bypass Network Card with Intel I350AM2 Chip
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
Quad port Gigabit Ethernet adapter provides RJ45 interface connection
Innovative power management features and Energy Efficient Ethernet (EEE), integrated direct memory improves efficiency and reduces power consumption
Flexible I/O virtualization technology provides up to 32 virtual channels for port differentiation and quality of service (QoS)
Scalable iscsi provides cost-effective SAN connectivity
High-performance host interface design PCI Express 2.1
Reliable solution proves server adapter performance

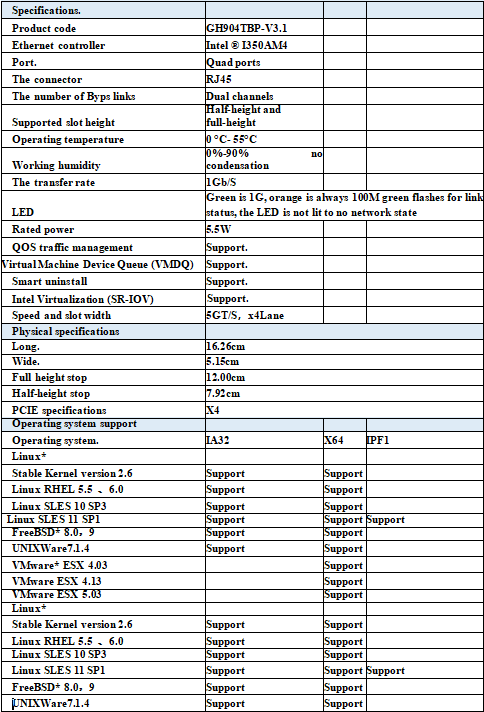

Key attributes
Model Number: GH904TBP-V3.1
Brand Name: GRT
Warranty Time: 3 years
Certification: FCC, RoHS, CE
Data rate: 1GbE
Ethernet controller: Intel®I350AM4
Application: Servers, GAP, Firewall, storage device,etc.
Product description

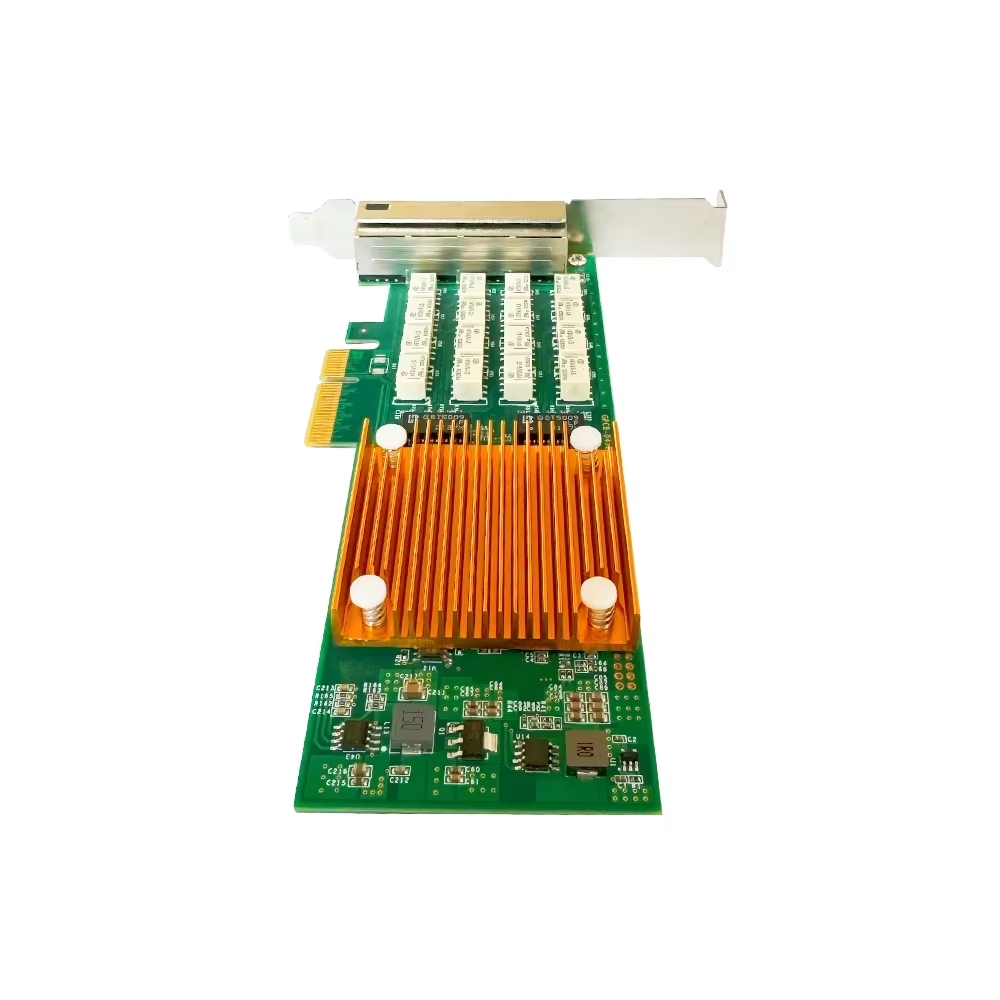

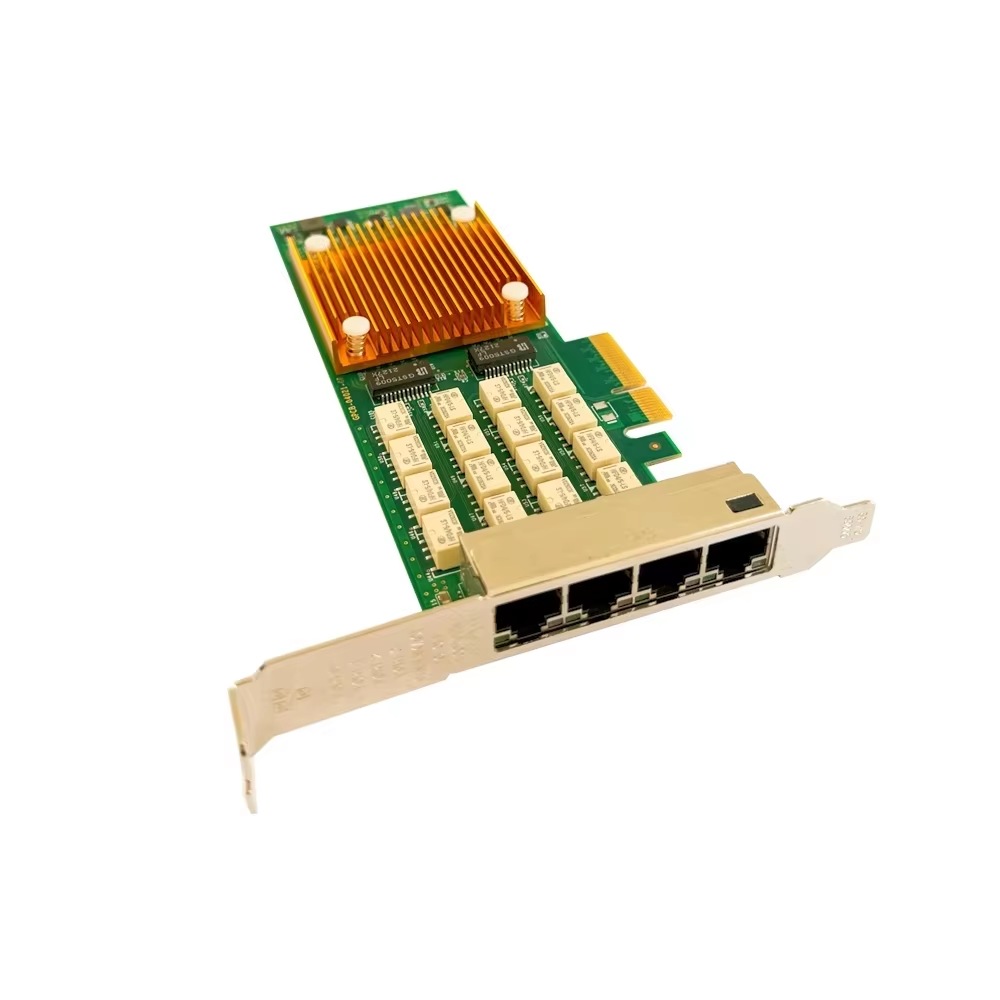

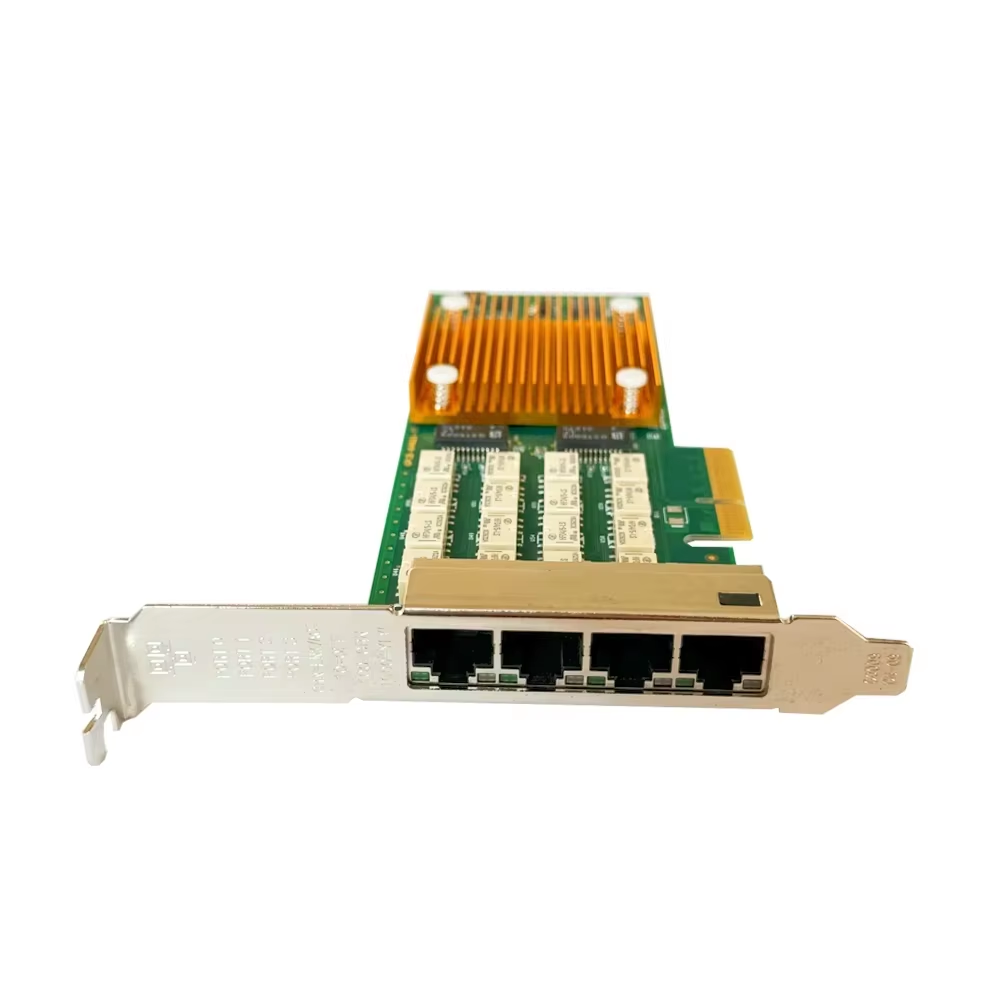

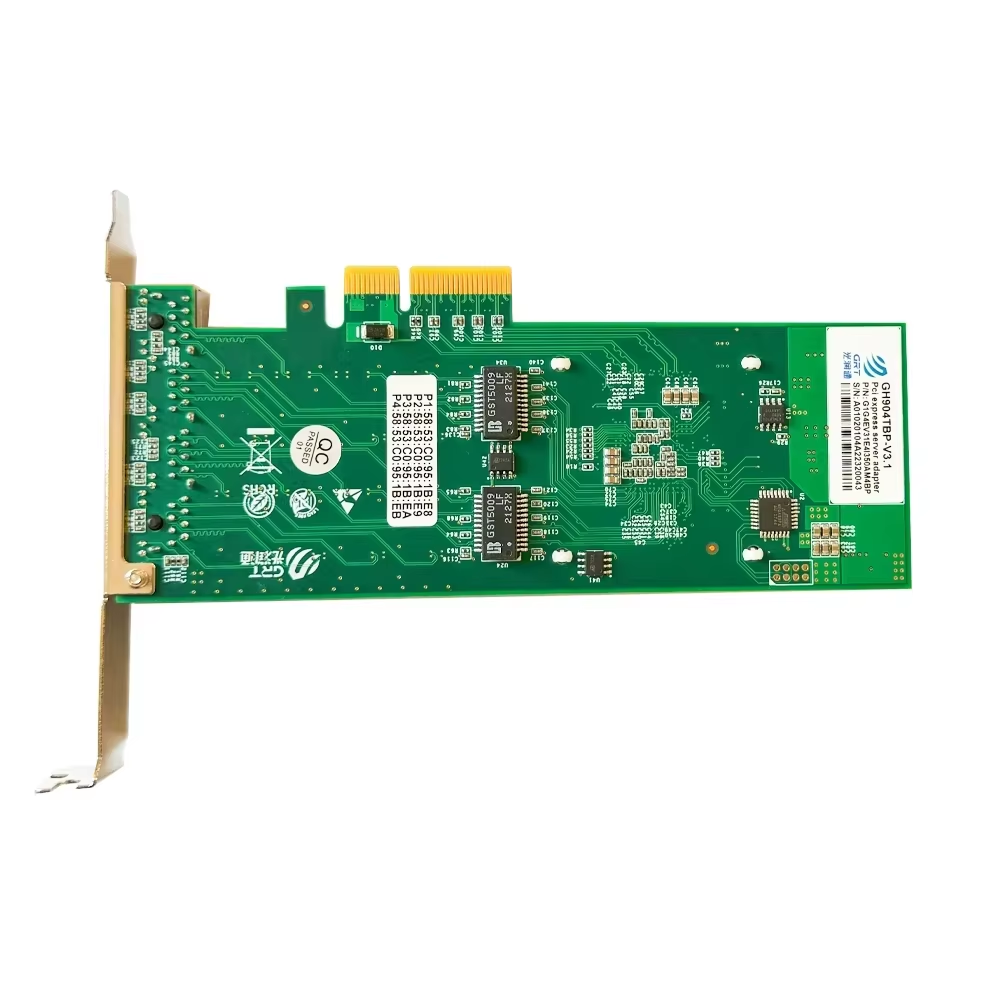

The Gigabit RJ45 electrical port Bypass Ethernet bypass server adapter produced by Guangruntong, GH904TBP-V3.1 is a PCI-Express X4 network interface card, and the adapter contains four Gigabit Ethernet ports. The GH904TBP-V3.1 adapter is oriented to the inline network system, which can facilitate the maintenance of the network connection when the network fails.
GH904TBP-V3.1 Quad Port Gigabit Ethernet Bypass Server Adapter, supports normal bypass and disconnect mode. In Normal mode, the ports are independent interfaces, while in BYPASS mode, all packets received from one port will be transmitted to the adjacent port, in Disconnect mode, Adapter analog switch/path cable disconnected.
The GH904TBP-V3.1 server adapter can bypass or disconnect its Ethernet port when the host system fails, power is turned off. In Bypass mode, the connection to the Ethernet port is disconnected from the system and switched to another port to create a cross-connect loopback between the Ethernet ports. Therefore, in bypass mode, all packets received from one port are sent to the adjacent port and vice versa. This feature can bypass a failed system and give the network maximum uptime. GH904TBP-V3.1 Quad Port Gigabit PCI Bypass Server Adapter, includes an onboard WDT (Watchdog Timer) controller. The adapter's software driver or software application can write commands to the onboard WDT controller. The adapter's software driver, WDT controller and bypass circuit provide an interface to control and manage the adapter mode.
GH904TBP-V3.1 is a quad-ended Gigabit Ethernet bypass server adapter based on Intel I350AM4 Ethernet controller with superior product performance.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
