40G single-channel dual-optical port server Bypass adapter NIC included Single mode module with Intel XL710-BM2 chip
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product features
Dual-port 40G rate, Ethernet adapter provides dual-fiber LC port connection
Innovative power management features and Energy Efficient Ethernet (EEE),
integrated direct memory increase efficiency and reduce power consumption
Flexible I / O virtualization technology provides up to 128 virtual
channels for port differentiation and quality of service (QoS)
Scalable iscsi provides cost-effective SAN connectivity performance
High-performance host interface design PCI Express 3.0
Protection of backbone network line communication can be realized

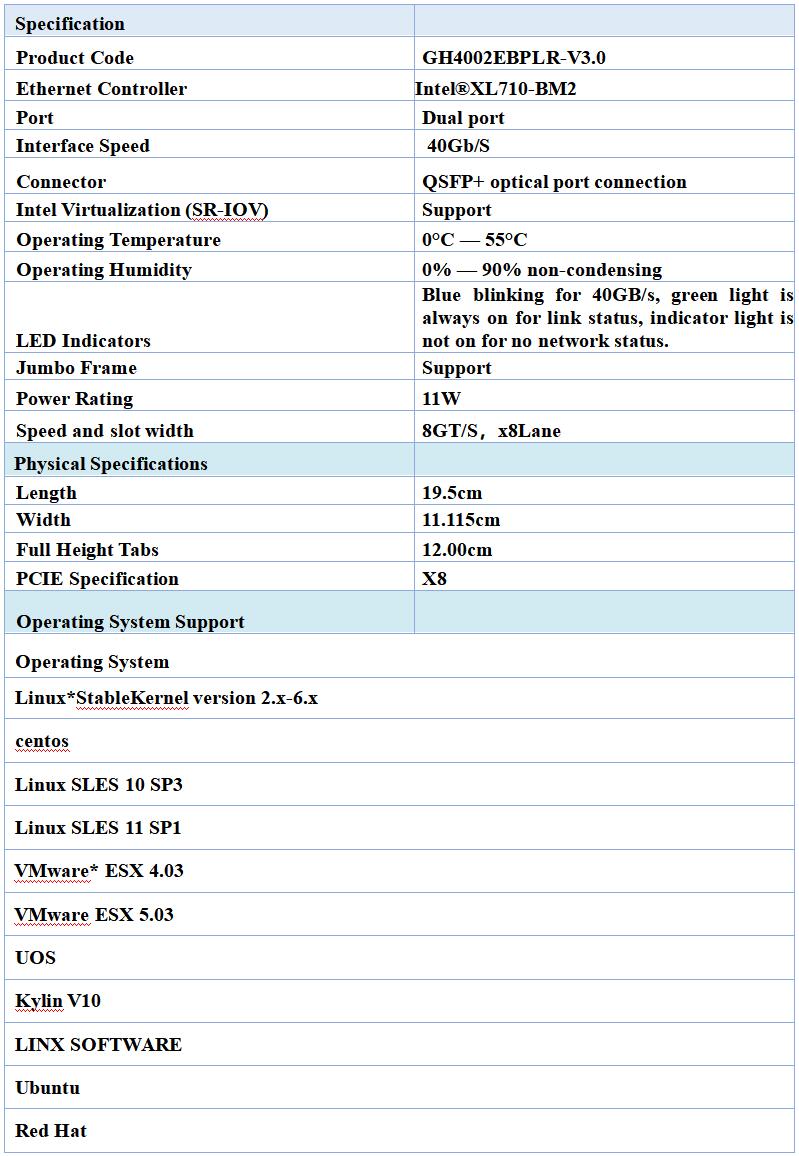

Key attributes
Model Number:GH4002EBPLR-V3.0
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:40GbE
Ethernet controller:Intel XL710-BM2
Application:Servers, GAP, Firewall, storage device,etc
Product description

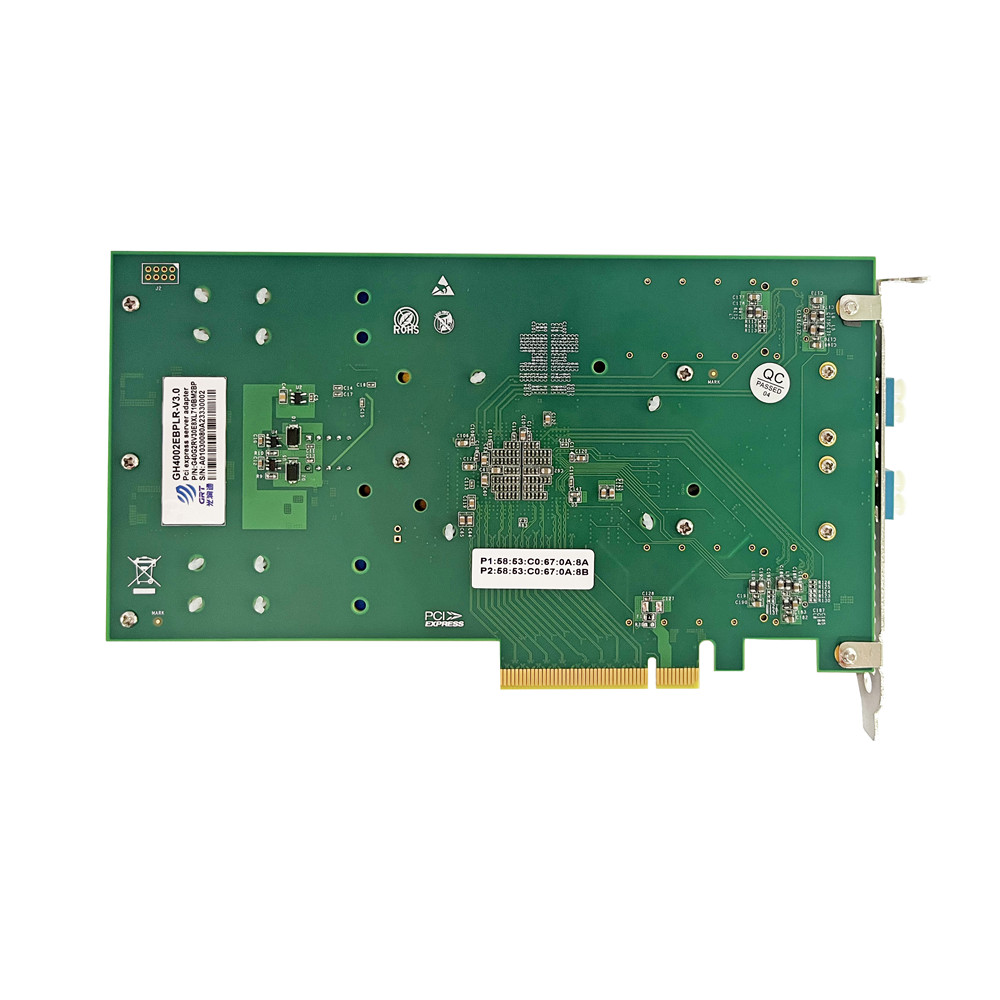

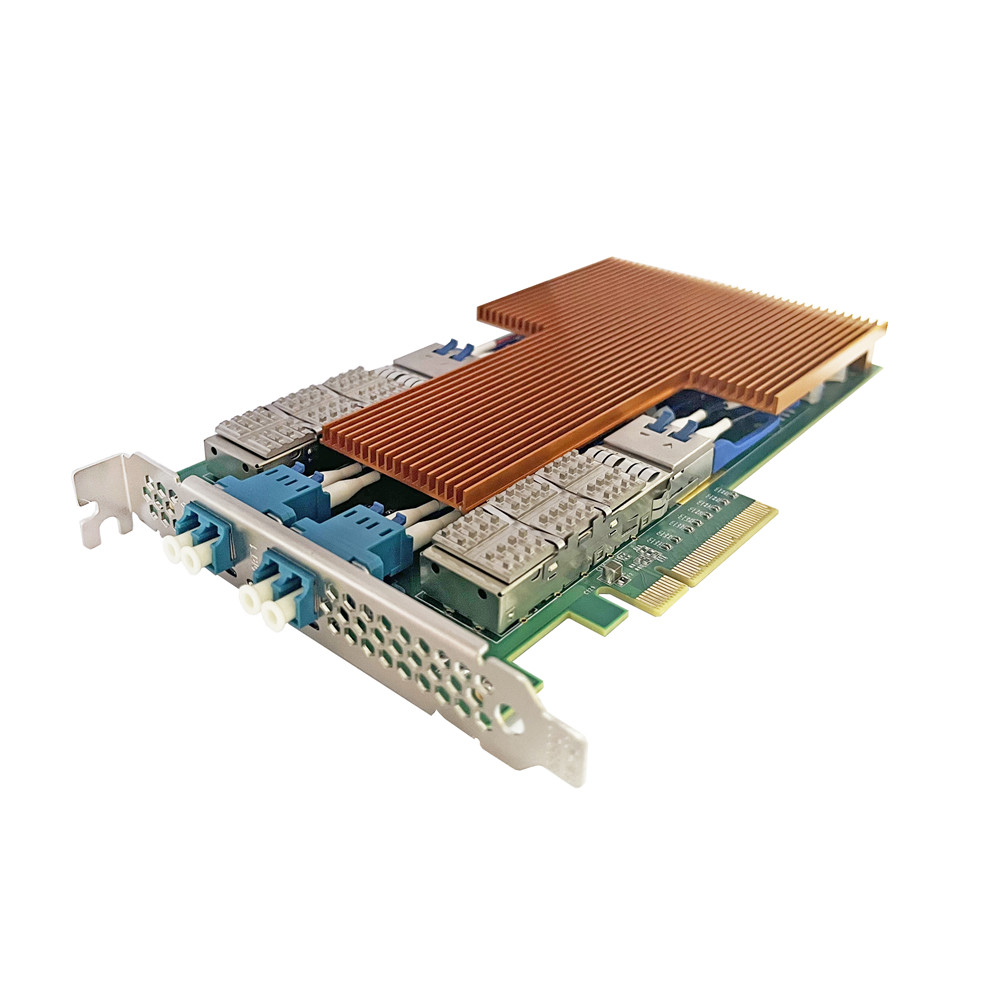

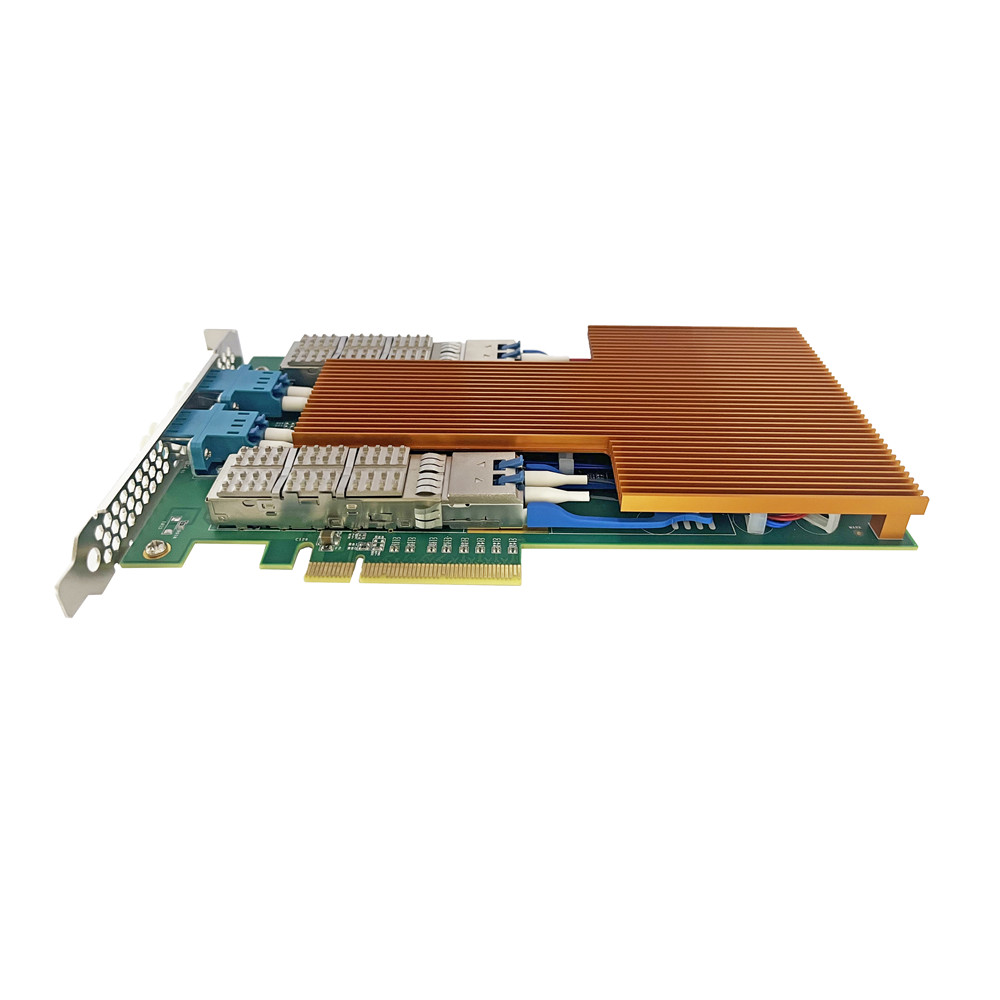

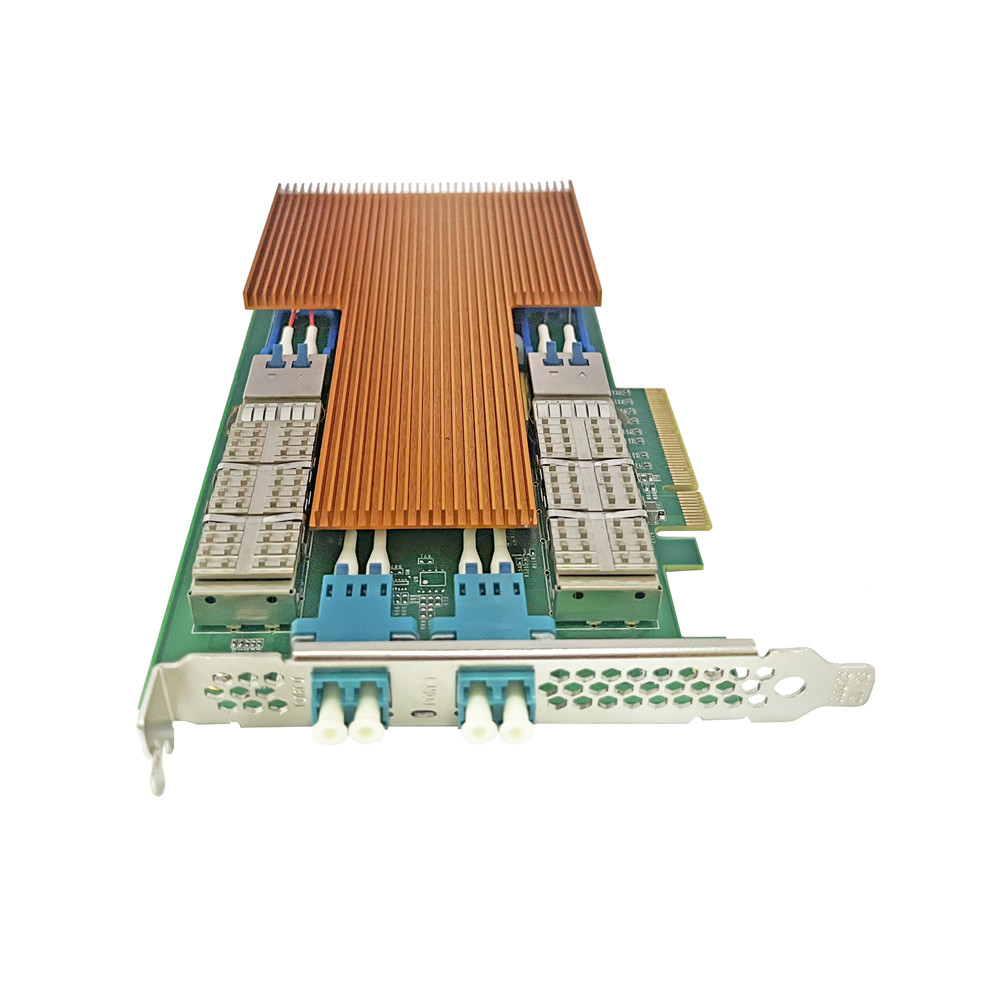

The GRT Single Dual-Port Fiber Optic 40G Gigabit Bypass Ethernet Server Adapter GH4002EBPLR-V3.0 is a PCI-Express X8 network interface card that includes two fiber optic (LR) 40 Gigabit Ethernet ports on a PCI-E adapter. This adapter is geared toward inline network systems and maintains network connectivity in the event of a system failure.
The GH4002EBPLR-V3.0 Dual-Port Fiber Optic 40 Gigabit Ethernet Bypass Server Adapter supports normal bypass and disconnect modes. In Normal mode, the ports are independent interfaces, while in Bypass mode, all packets received from one port are transmitted to the neighboring port, and in Disconnect mode, the adapter emulates switch/path cable disconnection.
The GH4002EBPLR-V3.0 server adapter can bypass or disconnect its Ethernet ports in the event of a host system failure, power shutdown, or software request. In Bypass mode, the Ethernet port connection is disconnected from the system and switched to another port to create a cross-connect loopback between Ethernet ports. Therefore, in Bypass mode, all packets received from one port are sent to the neighboring port and vice versa. This feature bypasses a failing system and provides maximum uptime for the network. The GH4002EBPLR-V3.0 Dual-Port Fiber Optic 40G PCIE Bypass Server Adapter includes an on-board WDT (Watchdog Timer) controller. The adapter's software driver or software application can write commands to the onboard WDT controller. The adapter's software driver, WDT controller, and bypass circuitry provide an interface to control and manage the adapter mode.
The GH4002EBPLR-V3.0's Dual-Port Fiber Optic 40 Gigabit Ethernet Bypass Server Adapter is based on the Intel XL710-BM2 Ethernet controller and offers superior product performance.
Bypass/Disconnect Function：
- Bypass/disconnect the Ethernet side in case of power failure, system hang or software application hang;
- Software programmable bypass, disconnect or normal mode;
- Onboard (WDT) controller;
- Software programmable timeout interval
Up to 3,276,800 mSec (3,276.8 Sec)
Minimum 100 mSec ( 0.1 Sec)
WDT calculation formula = (2^wdt_interval_parameter)*(0.1) sec.
wdt_interval_parameter: { legal value range: 0-15};
- Software programmable WDT enable/disable counter;
- Software programmable bypass function enable/disable;
- Software programmable disconnect function enable/disable;
- Software programmable mode (bypass, normal or disconnected mode) when powered on;
- Software programmable mode (bypass, normal mode) when the power is turned off;
- Independent bypass operation for every two ports;
- Can simulate standard NIC functions.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
