Product features
Dual port 10 Gigabit Ethernet adapter provides SFP+ module connection
Innovative power management features and Energy Efficient Ethernet (EEE), integrated direct storage
Flexible I / O virtualization technology provides up to 128 virtual channels for port differentiation and quality of service (QoS)
The scalable iscsi provides cost-effective SAN connectivity performance
High-performance host interface design is PCI Express 3.0GT / s
Reliable solution proves the excellent performance of the server adapter
Key attributes
Model Number:GH1002E-V3.6
Brand Name:GRT
Warranty Time:3 years
Certification:FCC, RoHS, CE
Data rate:10GbE
Ethernet controller:Intel X710-BM2
Application:Servers, GAP, Firewall, storage device,etc
Product description

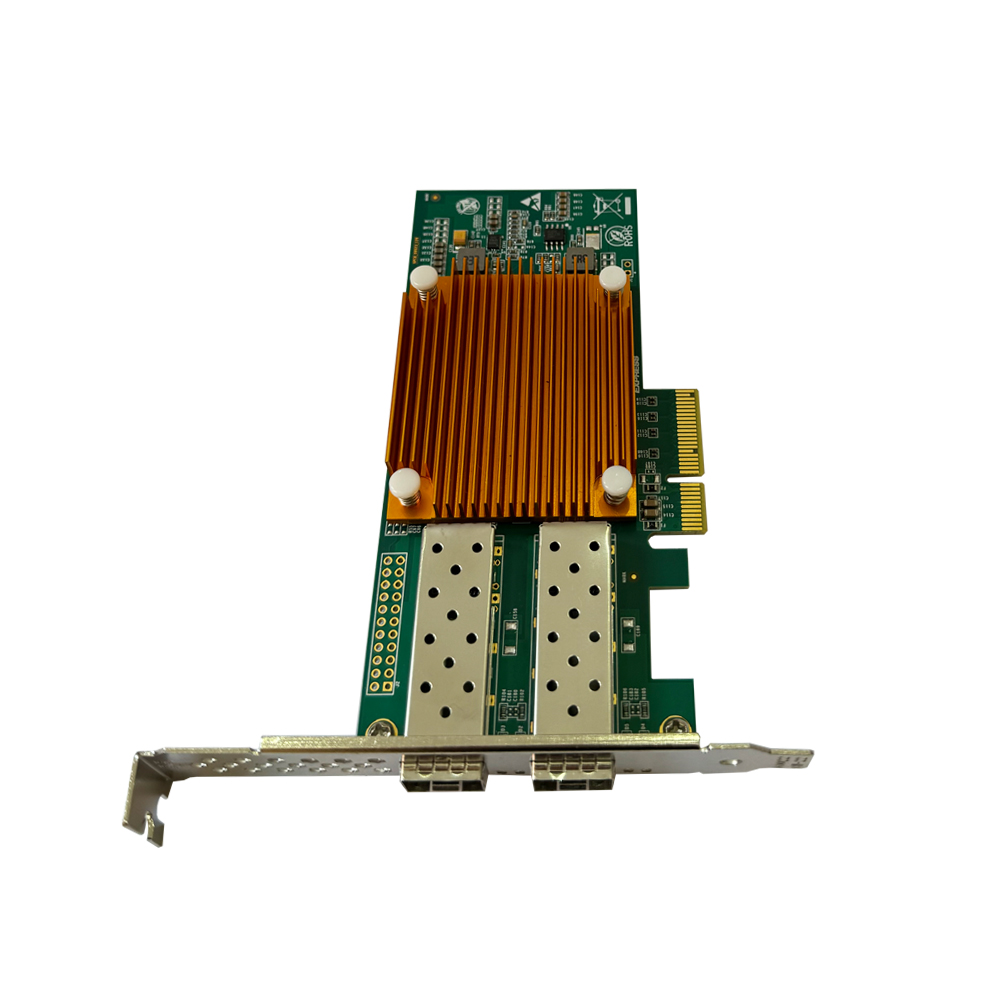

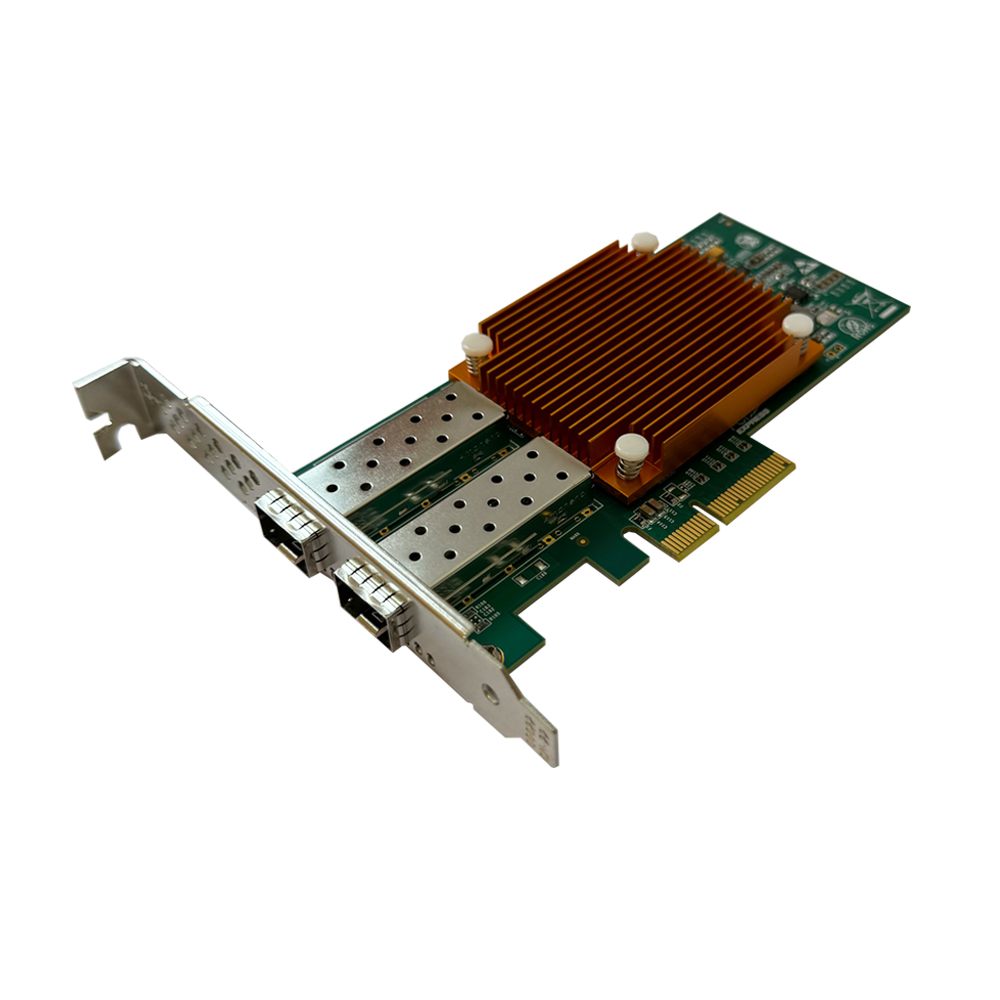

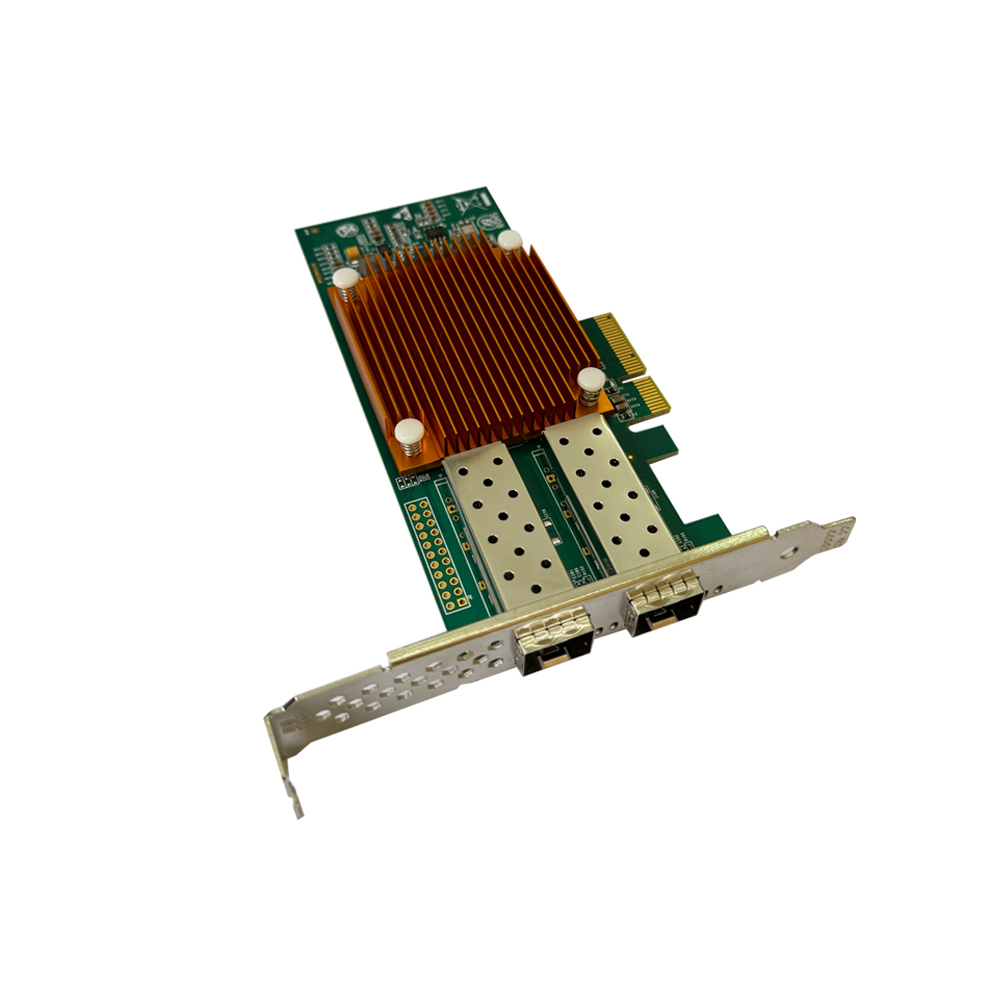

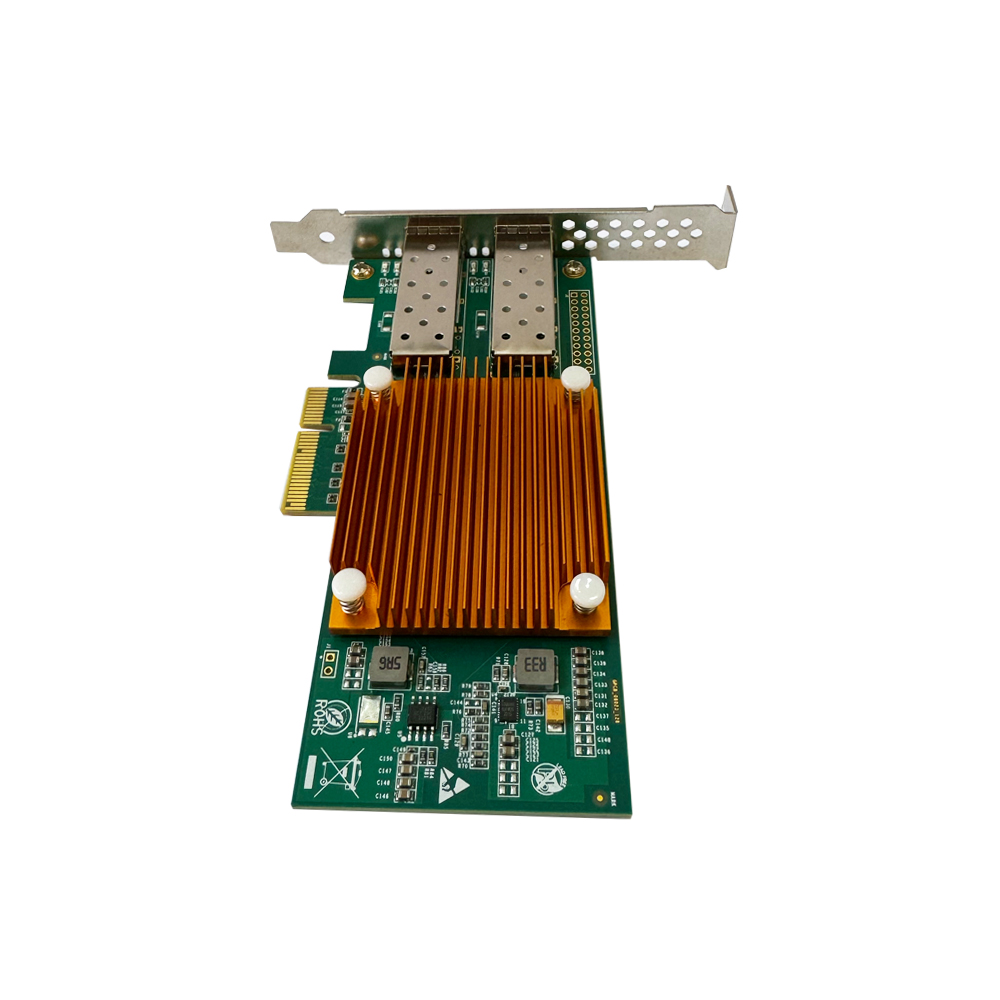

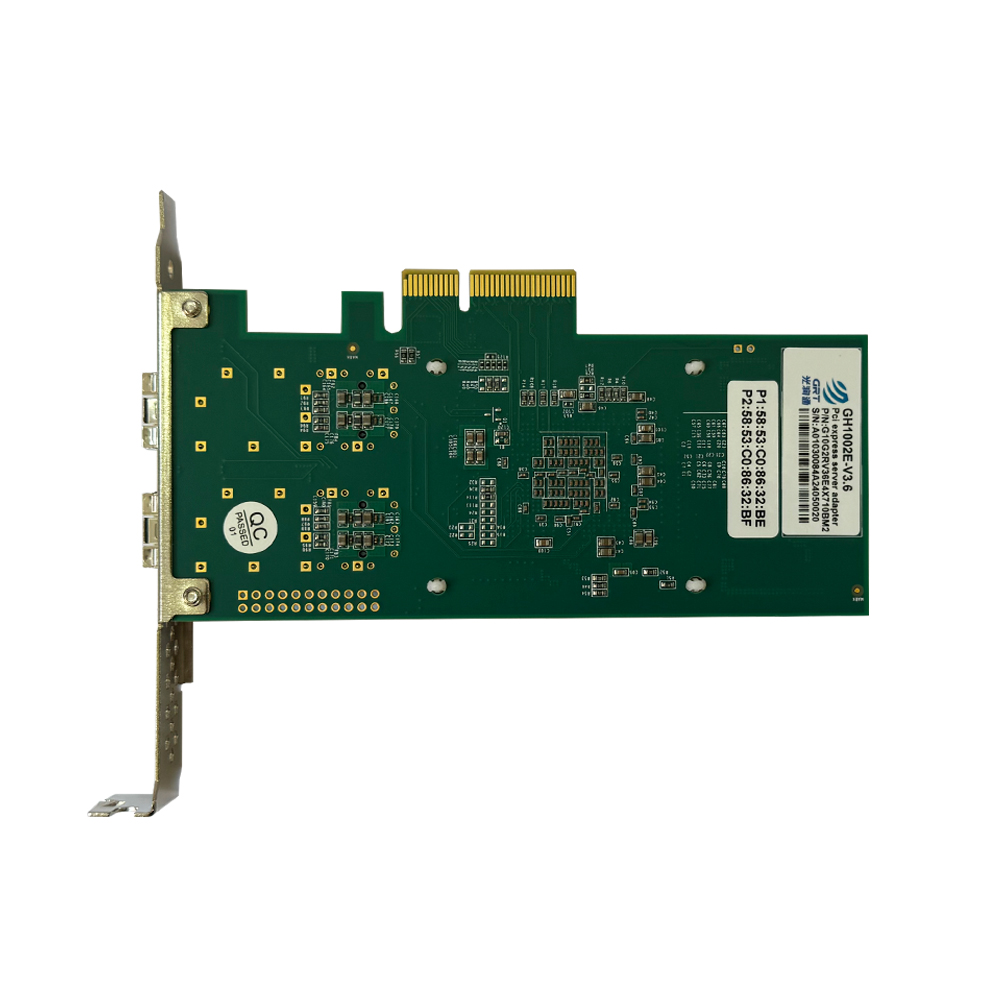

GH1002E-V3.6 X710-BM2 is a PCI Express x4 dual optical port SFP+ 10G Ethernet server adapter independently developed by Beijing Guangruntong Technology Development Co., Ltd. based on the Intel X710-BM2 chip solution, and is compatible with PCIe x16 channels. This server adapter addresses the needs of next-generation data centers by providing unmatched features for server and network virtualization. Provides reliable performance in flexible LAN and SAN networks.
The adapter features flexible dual-port 10GbE link rates on one PCI Express v3.0 x4 slot, making it easy to use in environments where multiple network deployments are required. This adapter is mainly designed for high-end devices such as servers, firewalls and gatekeepers. And it has optimized performance, so that system I/O is no longer the bottleneck of high-end network applications. This adapter can achieve fault tolerance and redundancy by bundling multiple ports into a group at the same time to ensure network performance and expand network bandwidth. Enable uninterrupted high-performance communications. In addition to stateless offloading, the adapter can distribute network traffic to CPU cores, improving network throughput. At the same time, the LSO and GSO are uninstalled from the host software, thereby reducing the checksum of the CPU overhead. Free up CPU resources to process other applications.
The adapter is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers. The adapter is based on the Intel X710-BM2 10G Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) dual port controller.
Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
