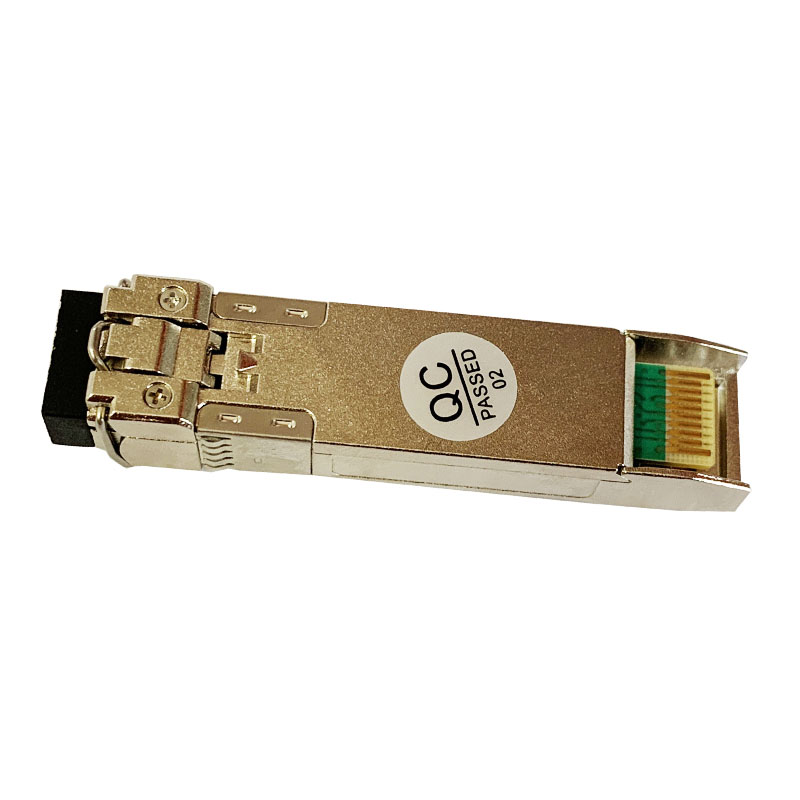

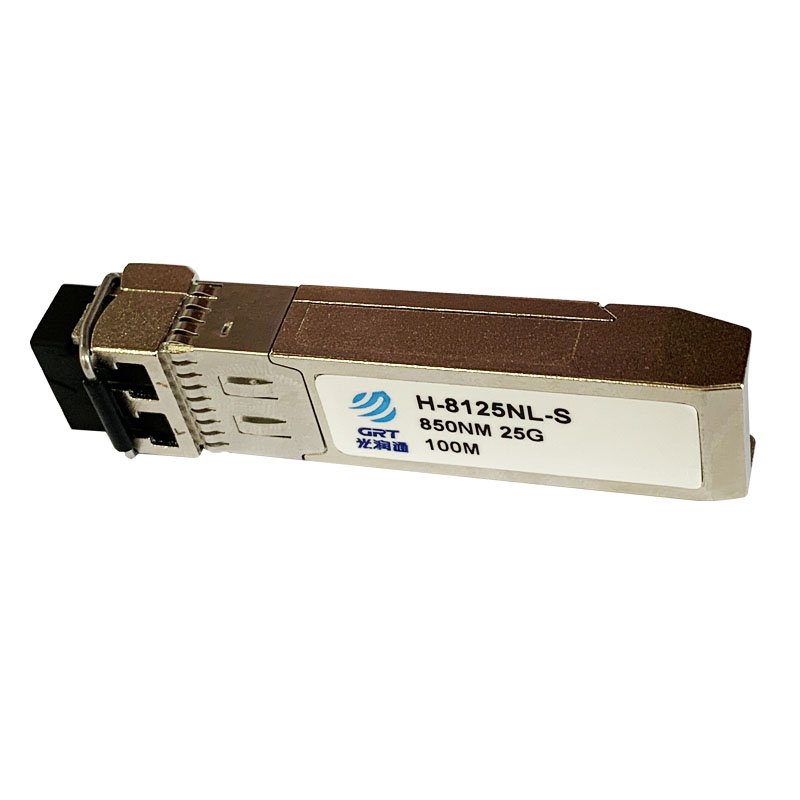

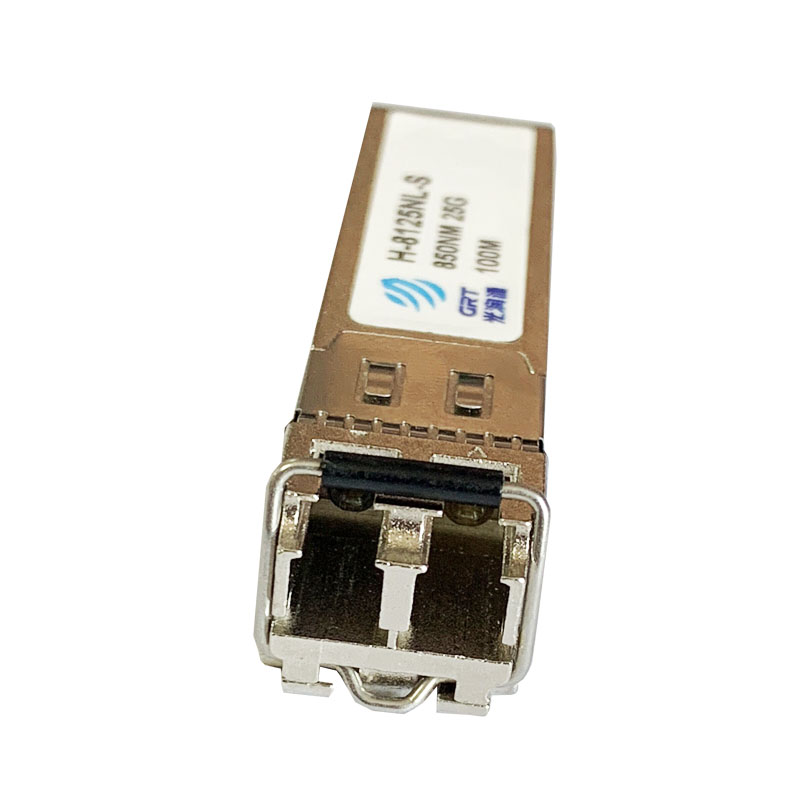

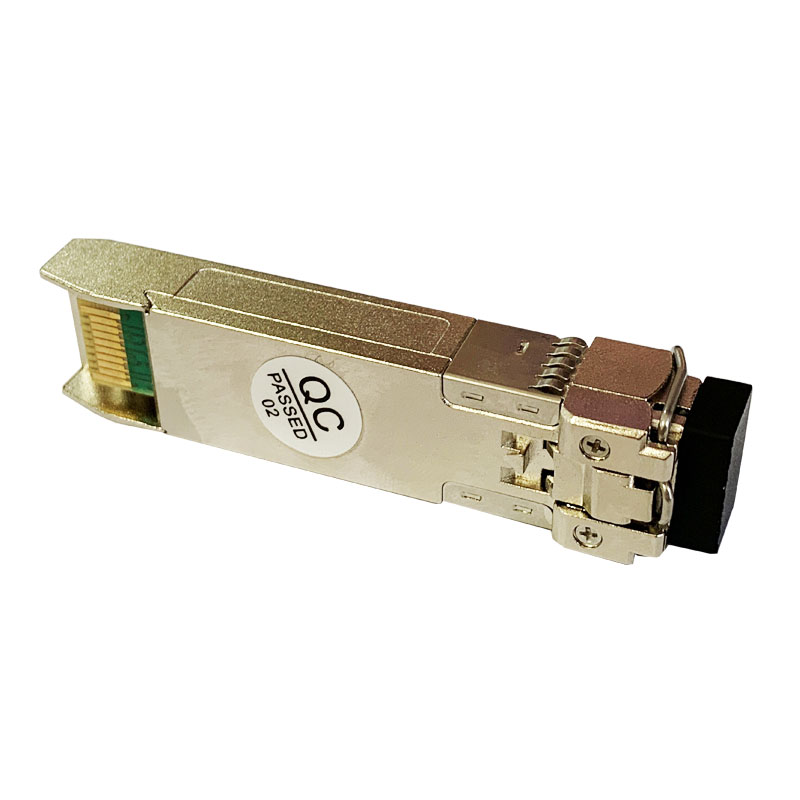

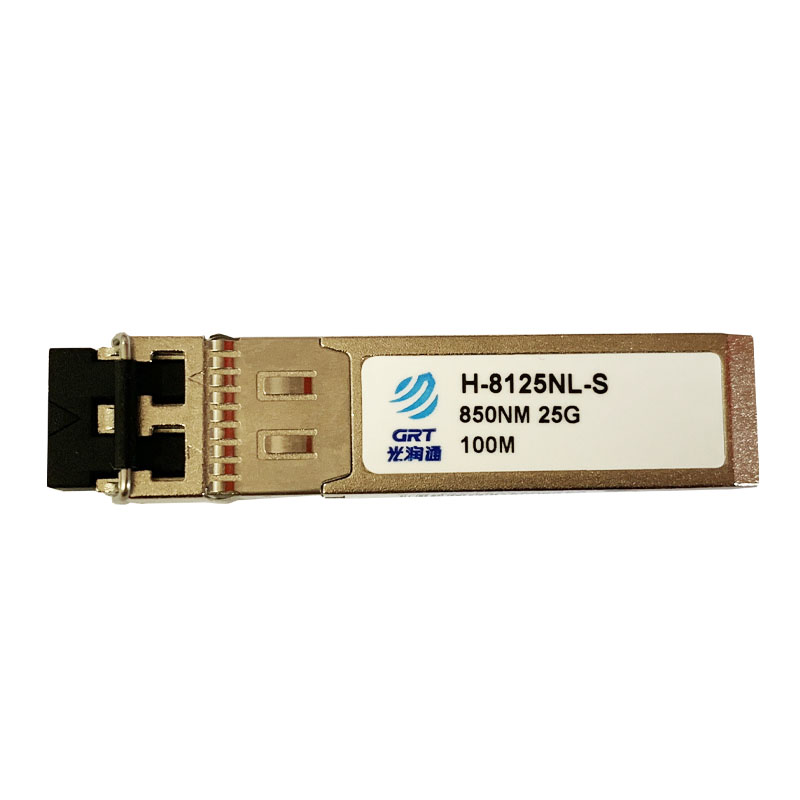

25Gb/s SFP28 850nm 100m Fiber Channel Transceiver Module
Add to Cart
My Collection
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
1. Product Features
Duplex LC connector
Hot-pluggable SFP28 footprint
850nm VCSEL laser
RoHS compliant and Lead Free
100m over MMF (50/125 um OM4)
70m over MMF (50/125um OM3)
Metal enclosure for lower EMI
Power dissipation <1.2W (0~70℃)
Commercial operating temperature optional
| Code Number | H-8125NL-S |
| Data Rate | 25Gbps |
|
Operating wavelength |
850nm |
| Transmission Distance | 100m |
| Commercial Case Temperature | 0-70° |
| Mode | Multi-mode |
| DDM diagnostic function | yes |
| Certification | ISO9001, CE, FCC, RoHS |
| Application | Switches, Routers, VPN, Firewall |
| Warranty Time | 3 years |
2. Application
-
NIC network cards
-
Switches
-
Routers
-
VPN equipment
-
Traffic control device
-
GAP
-
Fiber Media Converter
-
Firewall
-
Storage device
-
Telecommunication
-
Fiber Channel
3. Customer Ordering
For each model of optical module, there're 3 levels for choice.
|
Product Level |
Description |
| Aerospace Level | made by 100% imported material |
| Telecommunication Level | 60% of material are imported |
| Network Level | chipset imported, others are of dometic brand |
4. Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packaging & Shipping
-
Please keep the transceiver modules from dust, moist and oil contamination.
-
Try to avoid the electrostatic.
-
Try to avoid direct contact with sensitive areas such as connecting finger.
-
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
